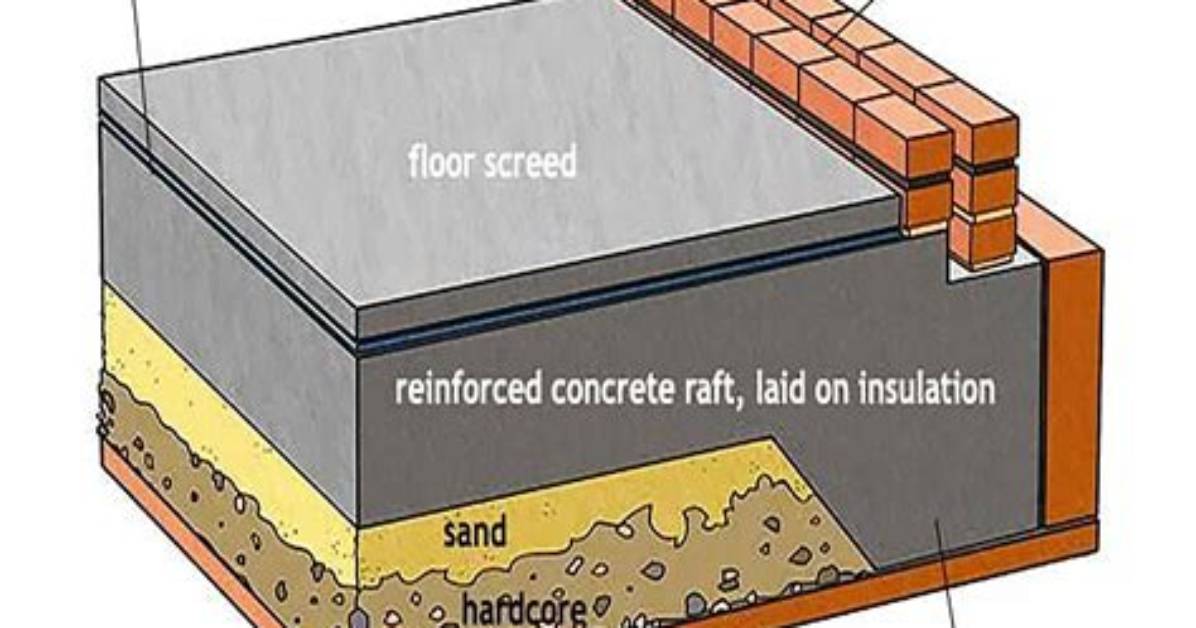

A raft foundation is a reinforced concrete slab under the whole of a building or extension, ‘floating’ on the ground as a raft floats on water. This type of foundation spreads the load of the building over a larger area than other foundations, lowering the pressure on the ground.

Is a raft foundation good?

Generally speaking, for domestic projects that have low structural load and a fairly small surface area, raft foundations are ideal. This assumes that the ground is stable enough to provide the load bearing capacity required for the build.

What is raft foundation types?

Types of Raft Foundation

Flat Plate Type Raft Foundation. Thickened Flat plate Type Raft Foundation. Beam and Slab Type Raft Foundation. Piled Raft Foundation.

Why raft foundation are used?

Raft foundation is generally used to support structures like residential or commercial buildings where soil condition is poor, storage tanks, silos, foundations for heavy industrial equipment etc.

What are the 3 types of foundations?

Foundation types vary, but likely your house or home’s addition does or will have one of these three foundations: full or daylight basement, crawlspace, or concrete slab-on-grade.

How deep is a raft foundation?

There are certain requirements that need to be considered during the of raft foundation in order to produce adequate design such as minimum depth of 50cm, required excavation depth of approximately 2.5m, and rebar cover of 50mm.

What are the disadvantages of raft foundation?

Disadvantages of Raft Foundation
Raft foundation is prone to edge erosion.Raft foundation requires more amount of reinforcement in some cases, and it will ultimately cost more.Skilled labours are required as compared to other foundation.

Can you underpin a raft foundation?

This method stabilises existing wall foundations to whole rooms or buildings. Mini-piles are installed within the property and capped with an integral reinforced concrete raft. Needle beams project from the slab into the walls below ground level.

Which soil is suitable for raft foundation?

Raft foundation is preferred when the clayey soil is compact and hard. Even strap foundation can also be used. Soft clayey sand is prone to expansion and shrinkage. They have a low bearing capacity and are unsuitable for footing and strap foundation.

Is raft foundation shallow or deep?

Raft foundations are a type of shallow foundation. They are typically formed by reinforced concrete slabs that cover a wide area, often the entire footprint of a building.

What are advantages and disadvantages of raft foundations?

Related to this is that raft foundations can reduce differential settlement, where settlement occurs at different rates across the ground surface of the building, which reduces cracking and other more serious problems. The main disadvantage is that they can prone to edge erosion if they are not treated properly.

How many types of rafts are there?

Two-way beam and slab Raft. Plate raft with pedestals. Plied raft. Rigid Frame Mat or Cellular Raft Foundation.

What is difference between raft and footing?

If we increase footing area the footings are overlapped each other, instead of providing each footing on each column all columns are placed in common footing. A raft foundation is a solid reinforced concrete slab covering entire area beneath the structure and supporting all the columns.

What is the strongest foundation for a house?

Foundations are mostly constructed from strong material so they can hold the house in place even during earthquakes and cyclones. Therefore, they are generally made up of concrete which is the strongest construction material.

What is the difference between raft and pile foundation?

Difference between raft and pile foundation

The raft foundation or mat foundation is a prominent example of a shallow foundation. On the other hand, the pile foundation is an example of a deep foundation. This is one of the first and the most general point of difference between these two types of foundations.

What are the 4 types of foundations?

There are five main foundation types and a handful of important variations.
Basement Foundation. Crawlspace Stem Walls. Concrete Slab Foundations. Wood Foundations. Pier and Beam Foundations.

What is the cheapest foundation for a house?

If you’re building a home, a concrete slab makes sense because of its low cost. It’s the cheapest option available, and, comparatively speaking, it’s the quickest solution. The right crew can lay a concrete slab foundation in a short period of time, and the drying process doesn’t take much longer.

Which is code used in RCC?

IS: 456 – code of practice for plain and reinforced concrete.
