Third Class Levers
In a third class lever, the effort is located between the load and the fulcrum. In a third class lever, the effort is located between the load and the fulcrum. If the fulcrum is closer to the load, then less effort is needed to move the load (©2020 Let’s Talk Science).
What is a class 3 lever examples?
In a Class Three Lever, the Force is between the Load and the Fulcrum. If the Force is closer to the Load, it would be easier to lift and a mechanical advantage. Examples are shovels, fishing rods, human arms and legs, tweezers, and ice tongs. A fishing rod is an example of a Class Three Lever.
What are the three 3 classes of levers?

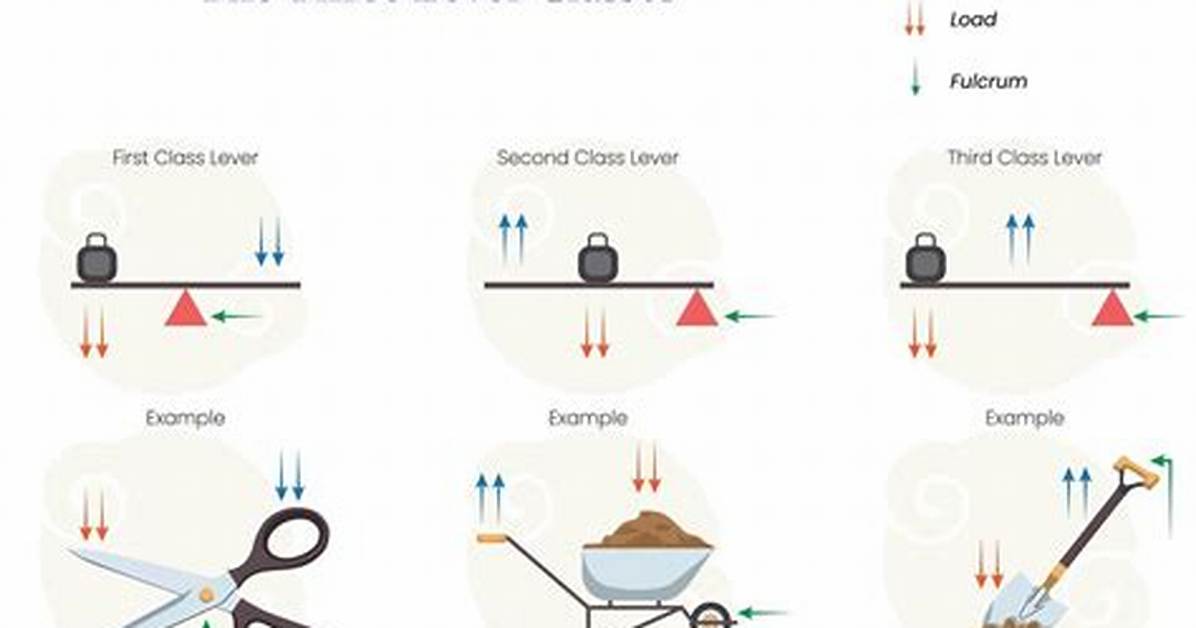

There are three classes levers, according to the position of the fulcrum. Class 1 has the fulcrum placed between the effort and load. Class 2 has the load between the effort and the fulcrum. Class 3 has the effort between the load and the fulcrum.
What are 1st 2nd and 3rd class levers?
– First class levers have the fulcrum in the middle. – Second class levers have the load in the middle. – This means a large load can be moved with relatively low effort. – Third class levers have the effort in the middle.
What is the difference between Class 1 and Class 3 levers?
Answer. Answer:Class 1 has the fulcrum placed between the effort and load. Class 2 has the load between the effort and the fulcrum. Class 3 has the effort between the load and the fulcrum.
How do 3rd class levers work?
How Does a 3rd Class Lever Work? In 3rd class levers, the fulcrum is at one end of the lever, the load at the other end, and you apply force in between in this case the force is the muscle. Although the force is applied in the middle, the muscle attachments are usually close to the joint.
Why human arm is a class 3 lever?
For example, the forearm is a 3rd class lever because the biceps pulls on the forearm between the joint (fulcrum) and the ball (load).
What is a class 2 lever examples?
In a Class Two Lever, the Load is between the Force and the Fulcrum. The closer the Load is to the Fulcrum, the easier the load is to lift. Examples include wheelbarrows, staplers, bottle openers, nut cracker, and nail clippers. A great example of a Class Two Lever is a wheelbarrow.
Is a catapult a class 3 lever?
The projecting arm of the catapult will be the lever and the fulcrum is the point where the arm is fixed to the catapult and the load is the thing on which the catapult is being projected. Therefore the catapults commonly use class 1 or 3 levers. The answer is given as option D.
What is a class lever?
It is the relative positions of these three points – the effort, the load and the fulcrum – that distinguishes the type or class of lever. There are three classes of lever 1st, 2nd and 3rd class. First class lever. First class levers have the fulcrum between the force and the load.
What is type of lever?
There are three types of levers: first-class, second class, and third class. The difference between the three classes depends on where the force is, where the fulcrum is and where the load is.
What is lever and its type?
Lever. A lever is a rigid, straight (or bent) bar which is capable of turning about a fixed axis. Fulcrum of a lever does not move and clockwise moment of load about fulcrum equals anticlockwise moment of effort about fulcrum. MA=Load ArmEffort Arm.
What is 1st class lever?
The first-class lever is one of three classes of levers. In a first-class lever system, the fulcrum (pivot point) is located on the lever between the points where the force (effort) is applied and load (resistance) is being moved. Crowbars and seesaws are common example of first-class lever system.
What is one example of a lever?
Examples of levers in everyday life include teeter-totters, wheelbarrows, scissors, pliers, bottle openers, mops, brooms, shovels, nutcrackers and sports equipment like baseball bats, golf clubs and hockey sticks. Even your arm can act as a lever.
What is Archimedes lever?
Archimedes’ Law of the Lever, i.e. the statement about balancing a beam with different weights distributed along its length, is a classical example of a problem drawn from and applied in, the physical world but which is most illuminated when treated in abstract mathematical terms.
How many classes of levers are there?
According to where the load and effort are located with respect to the fulcrum, there are three types or classes of lever: First-Class Lever. Second Class Lever. Third Class Lever.
