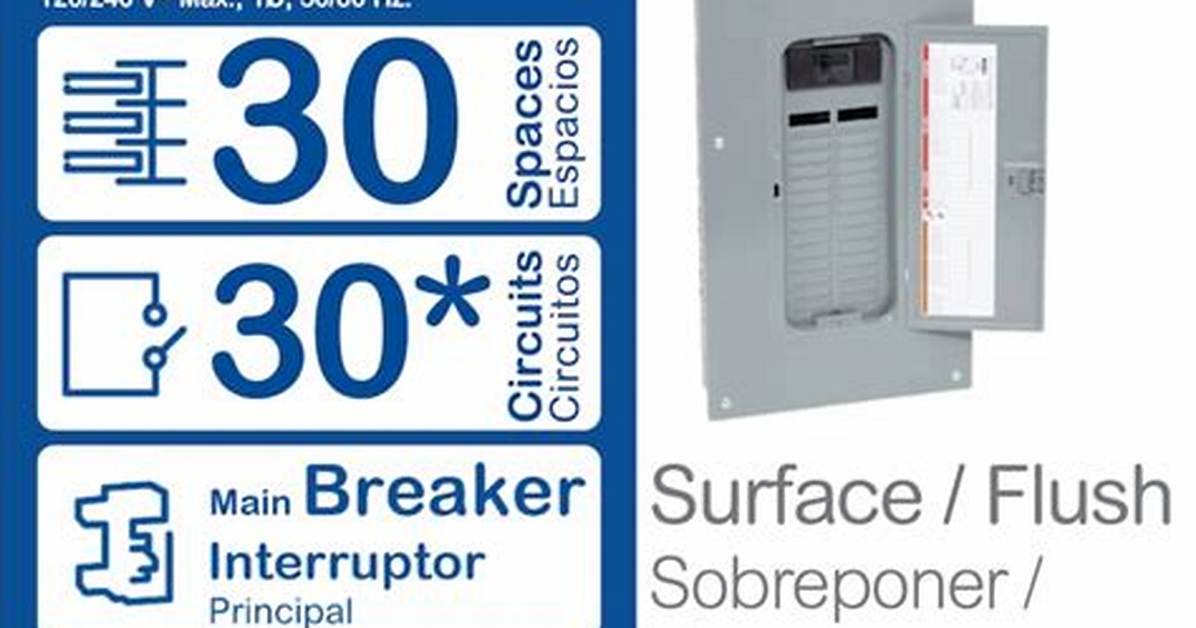

Number of Breakers You Can Put in a 150a Panel

In most cases, a 150-amp panel has 30 spaces that can carry as many as 60 circuits, although this varies between different brands. You can fill up all the slots, installing 30 circuit breakers.

Is 150 amp service enough?

Is 150-Amp Service Enough? A 150 amp service is the minimum a single-family home requires. You can use it to run most of the common devices and appliances.

Can you use a 200 amp panel with 150 amp service?

You have 200 amps of electric available at your meter, your panel will only let you access 150 amps total. If you ever needed to upgrade your main panel for more power, you could avoid the big expense of changing the wires. The 100 amp sub panel is also perfectly acceptable, presuming it was installed to code.

Do they make a 150 amp breaker?

Square D Homeline 150-Amp 2-Pole Standard Trip Circuit Breaker in the Circuit Breakers department at Lowes.com.

How much does it cost to upgrade from 150 amp to 200 amp service?

$1,000. Between $500 and $1,000, you can hire a pro to upgrade your 100- to 150-amp service to 200 amps. If additional work is minimal, such as upgrading old wiring, you can still come in under $1,000.

Is 125 amps enough for a house?

Most homes require an electrical service of at least 100 amps. This is also the minimum panel amperage required by the National Electrical Code (NEC). A 100-amp service panel will typically provide enough power for a medium-sized home that includes several 240-volt appliances and central air-conditioning.

How many amps is a house outlet?

Most homes in the U.S. are wired with a combination of 15-amp and 20-amp, 120-volt circuits. Because 15-amp receptacles can be used with 20-amp circuits, most of the outlets you see in American homes are the standard 15-amp variety, with two slots and a U-shaped grounding hole.

Can I use a 100 amp transfer switch with 200 amp service?

Perfectly fine to feed a 200A panel from a 100A breaker.

How do I upgrade my amp service?

A licensed electrician will need to obtain a permit to do a 200 amp service upgrade. You’ll likely need to disconnect the power to replace the meter base and install the 200 amp service wire, main disconnect, and 200 amp electrical service panel.

Can I put a 100 amp breaker in a 150 amp panel?

It’s a limit on the total, simultaneous load that the breaker will support. If you’re currently using 150A of power in your main panel, turning anything on from the subpanel will likely trip it the main. However, the odds of you ever using 150a at your main are slim, as are the odds of using 100a at the sub.

What size wire do I need to run 100 amp Service 150 feet?

100 amp service 150 feet away from the sub panel requires #00 AWG wire (also known as 2/0 AWG wire). This wire has a median ampacity of 175 amps; more than enough than the required minimum 162.5 ampacity.

How many amps can my house handle?

The standard for most household circuits are rated either 15 amps or 20 amps. An important note to remember is that circuit breakers can only handle about 80% of their overall amperage. That means a 15-amp circuit breaker can handle around 12-amps and a 20-amp circuit breaker can handle about 16 amps.

Do I need 100 amp or 200 amp service?

In general, homes under 3,000 square feet can use a 100 AMP panel as long as they don’t use air conditioning or electric heat. Homes over 3,000 square feet and homes that rely on electric heat and air conditioning will typically be better served by a 200 AMP panel.

How long does it take to replace an electrical panel?

How long do you think it takes to replace an electrical panel? The answer is “Upgrading from 100 to 200 Amp, using existing wiring.” A two-man crew will need about eight hours to upgrade your electrical service.
