Plenum boxes are usually situated on either side of the fan or heat exchanger and have the important function of bringing in, distributing, and removing air. They are the air’s first stop after being heated or cooled and its last stop before going back into your AC, heat pump, or furnace.
What does plenum mean in HVAC?
The supply plenum is an air distribution box. It’s attached directly to the supply outlet of the HVAC equipment–that is, the outlet that releases chilled or heated air into your home. The air ducts that distribute the air into the individual rooms of your living space all connect to this plenum.
What is considered plenum?

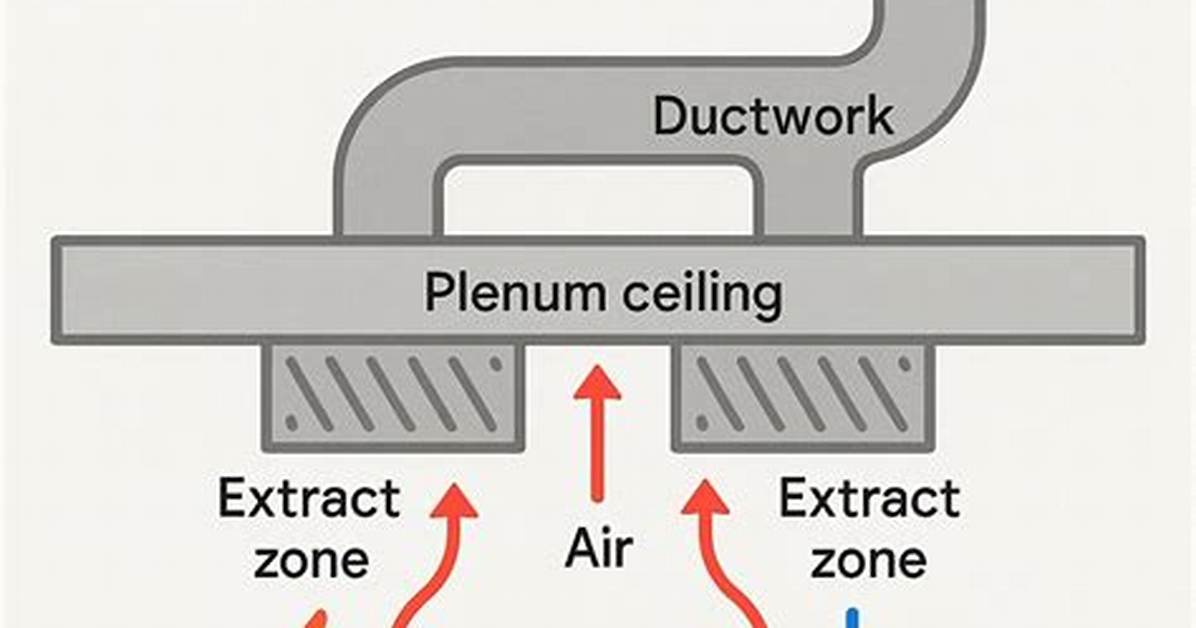

Plenum spaces are the open spaces above the ceiling or below the floor that are used for air circulation. Technically, any ductwork is considered a plenum space too.
What is the difference between a plenum and a duct?
is that duct is a pipe, tube or canal which carries air or liquid from one place to another while plenum is (physics) a space that is completely filled with matter.
Why do we use plenum in HVAC?
Plenum boxes are used to distribute heated or cooled air throughout your home’s interior. After producing heated or cooled air, the HVAC system must move that air through the ductwork. Plenum boxes take in this air so that it can be pumped into the ductwork and, therefore, distributed throughout your home’s interior.
Where is the plenum on a car?
The plenum chamber is a chamber located in front of the windshield, where air pressure is above atmospheric. It provides a volume of air which is drawn into the car from the chamber through the heater, air-conditioner or vents.
Should the plenum be insulated?
simple answer…all supply plenums and ductwork, fittings, etc. is required to be insulated, and only after sealing all joints/connections with either approved foil tape or mastic material.
Do you need a plenum on a furnace?
A: In modern forced-air HVAC systems, you must have a plenum installed.
What is plenum ventilation?
Definition of plenum ventilation
: a system of ventilation that applies the motive force at the inlets, drives the air through the rooms which become plenums, and avoids the incoming of cold drafts.
What is a plenum and where would you find one?
A plenum is an air-distribution box attached directly to the supply outlet of the HVAC equipment that heats or cools the air to make the house comfortable. The ductwork that distributes the heated or cooled air to individual rooms of the house connects to the plenum.
What is the area above the ceiling called?
The word “attic” is derived from the Attica region of Greece and comes from Attic style architecture. The term referred to “a low decorative façade above the main story of a building” and, as used in the phrase “attic order”, had originally indicated a small decorative column above a building’s main façade.
Can a room be a plenum?
Plenums are limited to uninhabited crawl spaces, areas above a ceiling or below the floor, attic spaces, and mechanical equipment rooms. The code does not consider a habitable room intended for human occupancy containing air handling equipment with a free return to be a plenum space.
What is a VAV box?
A VAV terminal unit, often called a VAV box, is the zone-level flow control device. It is basically a calibrated air damper with an automatic actuator. The VAV terminal unit is connected to either a local or a central control system.
What is a heat exchanger HVAC?
A heat exchanger is a component in an HVAC system that transfers thermal energy from one medium to another. Two main types of heat exchangers are evaporator coils and condenser coils, both of which assist in the heating and cooling of homes and buildings.
How do you remove mold from AC plenum?
Use an EPA registered disinfectant labeled for HVAC use to clean non-porous surfaces (Ductwork, coils, plenums, pans, etc) of mold, mildew, and other dirt. BIOSPRAY-TOWER ready-to-use disinfectant and mold cleaner will kill and remove mold, mildew, and odor-causing bacteria.
What is the supply side of a furnace?
A supply plenum is an enclosed compartment that’s located just after your heat exchanger if you follow the flow of air through your furnace (see below). When your air handler blows air over your system’s heat exchanger, that warm air is directed into the supply plenum.
Do I need a plenum?
Most residential buildings don’t have plenum airspaces. Plenum areas are more common in commercial buildings. However, if your house does happen to have a plenum airspace or you need to run cables through an air duct, then plenum-rated cable is required.
