Electrical boxes are used to enclose connections for a number of applications like switches, fixtures and electrical outlets, and protect them from external damage, tampering and other factors that can affect their working.
Should electrical box be flush with drywall?
When you install an electrical box, make sure it is flush with the surface of this drywall strip; this will ensure the boxes are at the proper depth when the walls are finished.
How can I secure my electrical box without studs?

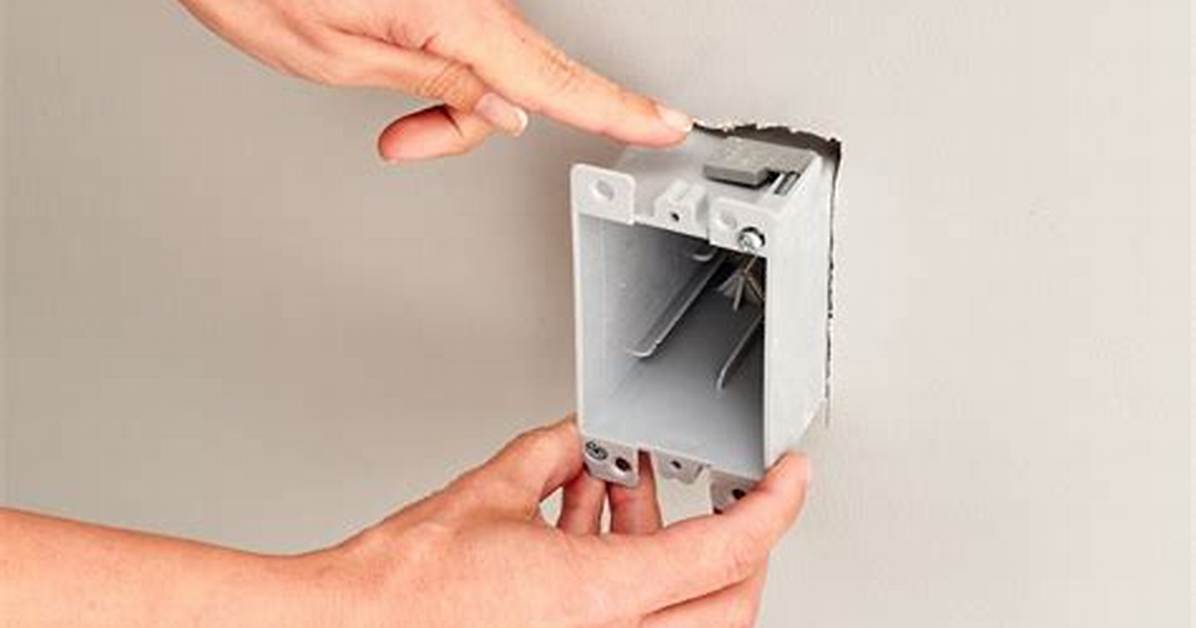

Here’s how to install an electrical box without a stud using a winged remodel box:
Trace the outline of the box onto the wall.Use a keyhole or drywall saw to cut out the shape.Thread the cables into the box and secure them.Push the box into the hole and ensure everything is snug how we like it!
What is a pancake electrical box?
Round pan, or “pancake,” boxes typically are only 1/2 inch or 3/4 inch deep. They are used most commonly for ceiling- or wall-mounted light fixtures that weigh no more than 50 pounds. Some types of specially rated metal pan boxes may be used for mounting ceiling fans, but not all pan boxes may be used for this purpose.
What is the difference between junction box and utility box?
A utility box can also be called an electrical box and it would be composed of switches, electrical sockets, and also fixtures. The major difference between a junction box and a utility box is that a junction box would house the electrical connections while the utility boxes are used to install switches, fixtures, etc.
Do you install outlets before drywall?
Here’s a checklist of items that need to be installed before the drywall goes up: Electrical: All wiring and electrical boxes installed for wall outlets, switches, and light fixtures. Plumbing: Drain lines along with hot and cold water lines. Heating and Cooling: Any ductwork for room vents and air return.
How far should electrical boxes stick out from the wall?
Electrical boxes should be mounted so that the outer edges are recessed no more than one-quarter inch (6 mm) from the drywall surface. The reason is not for aesthetics but to minimize the risk of arcing and electrical fires for safety.
How many outlets can be on a 15 amp circuit?
Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.
Does electrical box have to be on stud?
They don’t need to be fastened to a stud, so you can install them anywhere.
Are electrical boxes always attached to studs?
Most electrical boxes for switches or outlets are attached to a stud on one side. There are studs on either side of a window. Most trim (crown molding, baseboard, and shoe molding) is nailed on the stud.
Does an outlet have to be attached to a stud?
Specialized hardware does exist to allow putting an electrical outlet or switch absolutely anywhere without reference to a stud. All these items are generally referred to as ReWork boxes — boxes to be installed after the initial construction has passed.
Do junction boxes need to be mounted?
Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring. This rule is demonstrated nicely by wall switches, receptacles, and standard light fixtures, all of which require a junction box to mount the device and house the wiring connections.
Will a pancake box hold a ceiling fan?
You’ll use a half-inch pancake electrical box to secure your ceiling fan to the joist. Hold it up to the ceiling, centered on the joist, and trace its outline with a pencil. Cut out the hole with a drywall saw. You’ll need to make a new hole for the ceiling fan pancake box, usually right next to the light fixture hole.
Can I install a light fixture without a junction box?
If you’re wondering how you install a light fixture without an electrical box, the short answer is that you don’t. The electrical box, or junction box, is a code requirement that was established to prevent fires and other electrical accidents.
