A mechanical joint is a section of a machine which is used to connect one or more mechanical part to another. Mechanical joints may be temporary or permanent, most types are designed to be disassembled.
Where is mechanical joint used?
Mechanical joints are always used in composite structure assembly because of their cost efficiency and accessibility. However, the use of mechanical joints involves the drilling of holes in which fasteners can be installed.
What is the goal of a mechanical joint?
Mechanical joints allow mechanical parts to move as intended while keeping them connected at all times.
What is mechanical joint stress?
Joints can break down for a number of reasons, but sometimes the joint just breaks down due to overuse. This is where mechanical stress comes into play. Any number of factors can impact a joint and cause it to breakdown and eventually fail. It doesn’t just affect the large joints of the body, either.
What are considered mechanical fittings?

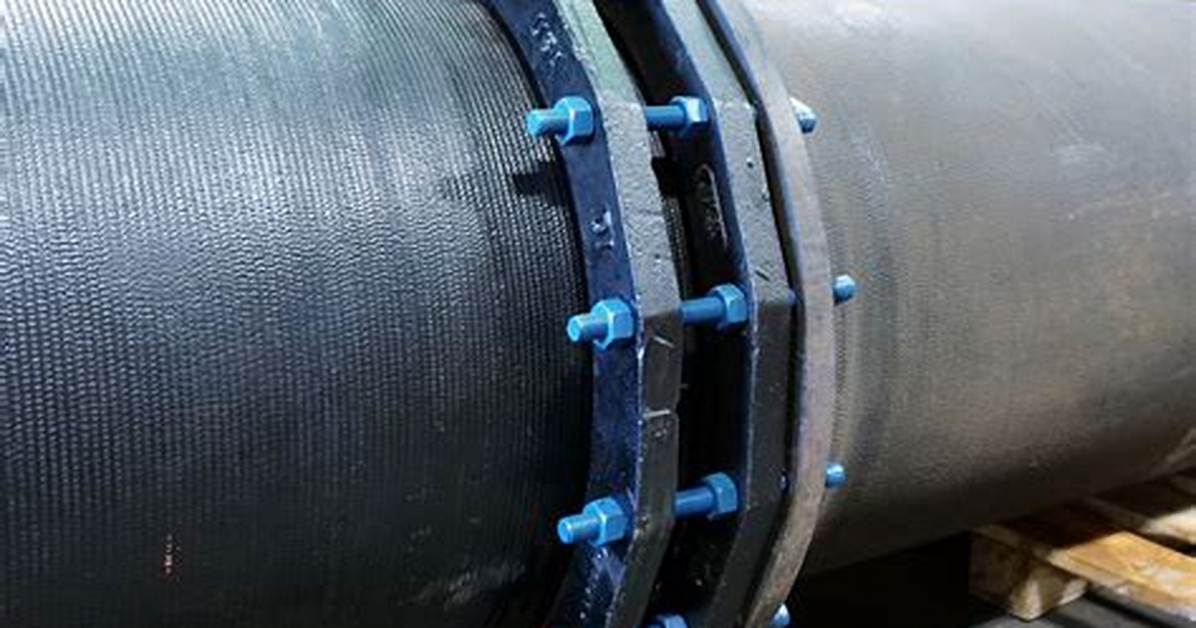

Mechanical joint means a connection between pipes, fittings or pipes and fittings by means of a device, coupling, fitting or adapter where compression is applied around the center line of the pieces being joined, but which is not caulked, threaded, sol- dered, solvent cemented, brazed or welded.
What is mechanical joint pain?
When a joint that is not arthritic is causing discomfort, often it is because the joint is too stiff or is moving too much. This is called mechanical joint pain.
How do mechanical joints fail?
The mechanically fastened joints fail by three basic mechanisms: net-tension, shear out, and bearing failure (Khashaba et al., 2013) .
What is bell and spigot?
A form of joint used on pipes that have an enlarged diameter or bell at one end and a spigot at the other that fits into and is laid in the bell. The joint is then made tight by lead, cement, rubber O-ring, or other jointing compounds or materials.
What is permanent joint?
By definition, a permanent joint is one that does not allow disassembly of joined components without rupturing them. Welding, riveting, coupling, etc. are common examples of such process. It can provide a sound, reliable, leak-proof and sufficiently strong joint and thus can be safely used for heavy load applications.
What is cotter joint?
A cotter joint, also known as a socket and spigot joint, is a method of temporarily joining two coaxial rods. One rod is fitted with a spigot, which fits inside a socket on one end of the other rod. Slots in the socket and the spigot align so that a cotter can be inserted to lock the two rods together.
What does mechanical knee problem mean?
Definition of ‘mechanical symptoms’
Symptoms of ‘catching’ and/or ‘locking’ of the knee are typically considered to be of mechanical origin, caused by something being trapped or stuck inside the knee that can be removed with surgery.
What is spherical joint?
A spherical joint, also known as a ball-and-socket joint, allows three relative rotations between the two connected segments and is frequently used to model the hip and glenohumeral joints.
What is the meaning of hinge joint?
A hinge joint is a type of synovial joint that exists in the body and serves to allow motion primarily in one plane. [1] The hinge joint is made up of two or more bones with articular surfaces that are covered by hyaline cartilage and lubricated by synovial fluid.
What are the types of cotter joint?
There are three types of cotter joint for connecting two rods by one coater:
Socket and spigot cotter joint.Sleeve and cotter joint.Gib and cotter joint.
Which is the saddle joint?
Saddle joints are also known as sellar joints. These highly flexible joints are found in various places in the body, including the thumb, shoulder, and inner ear.
What are the types of universal joint?
There are two types of universal joints, defined by their number of bending joints:
Single joint: has only one bending aspect and is capable of operating at up to a 45-degree angle.Double joint: utilizes two bending joints, the double u-joint can operate at angles up to 90 degrees.
