YS or yield point is the material property defined as the stress at which a material begins to deform plastically. Prior to the yield point the material will deform elastically and will return to its original shape when the applied stress is removed.
Where is the yield point?
The yield point of a material occurs when the material transitions from elastic behavior – where removing the applied load will return the material to its original shape – to plastic behavior, where deformation is permanent.
What is yield point or elastic limit?
Elastic limit – the point till which the wire retains its original length after the force is withdrawn. Yield point – the point where there is a large permanent change in length with no extra load force.
What is yield point formula?
The yield point is defined by the corresponding yield stress and yield strain. In engineering terms, the work-to-yield is approximately determined by ½ (yield stress × yield strain) because of the rough triangular shape of the stress–strain curve up to the yield point.
What is yield point Class 11?
The yield point is defined as the point at which the material starts to deform plastically. After the yield point is passed, permanent plastic deformation occurs. There are two yield points (i) upper yield point (ii) lower yield point.
What is yield point of steel?
What is Yield Strength? Yield strength is the maximum stress that can be applied before it begins to change shape permanently. This is an approximation of the elastic limit of the steel. If stress is added to the metal but does not reach the yield point, it will return to its original shape after the stress is removed.
What is the use of yield point?

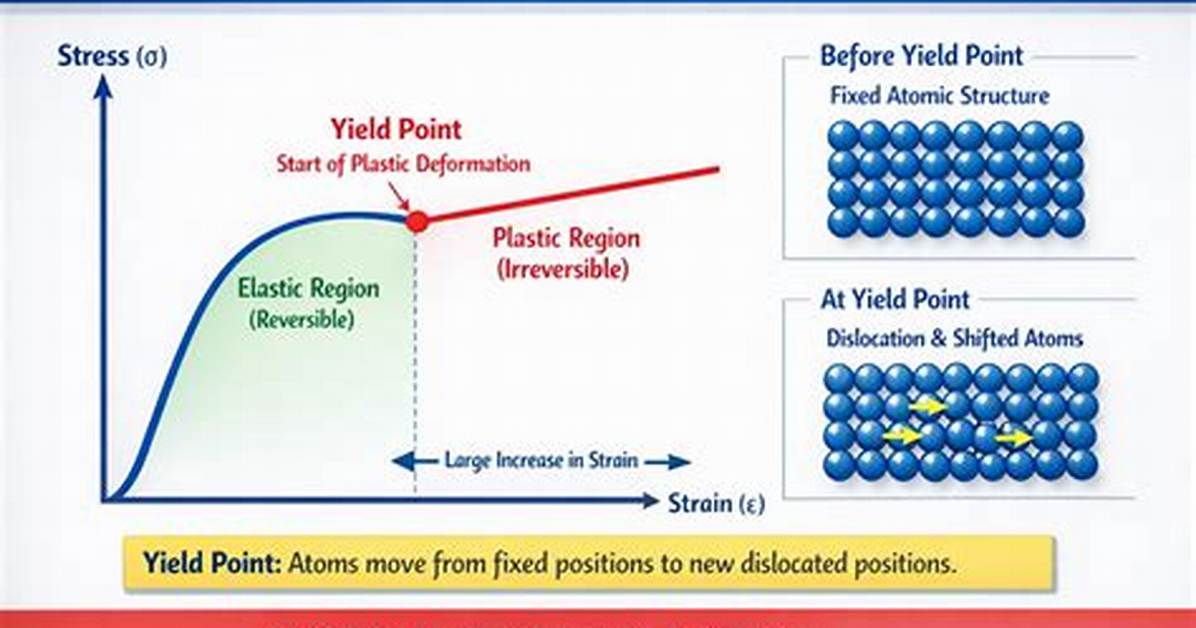

In materials science and engineering, the yield point is the point on a stress-strain curve that indicates the limit of elastic behavior and the beginning of plastic behavior. Below the yield point, a material will deform elastically and will return to its original shape when the applied stress is removed.
Why does yield point occur?
Yield point phenomenon is understood to occur when stress drops down drastically because the locked in dislocations are set free. The dislocations are locked in due to presence of carbon in case of low carbon steels or mild steels.
Why is the yield point of a material important?
Knowledge of a material’s yield strength is very important when designing components, since it usually represents the upper limit of the load that can be applied. Yield strength is very important for controlling many materials’ production techniques, such as forging, rolling or pressing.
What is the significance of yield point in tensile testing?
The yield point indicates the end of the elastic behavior of the material and the start of the plastic behavior. This means that if the yield point is exceeded, the material is irreversibly, or in other words permanently, plastically deformed.
What is elastic limit point?
elastic limit, maximum stress or force per unit area within a solid material that can arise before the onset of permanent deformation. When stresses up to the elastic limit are removed, the material resumes its original size and shape. Stresses beyond the elastic limit cause a material to yield or flow.
What is yield and tensile strength?
Yield Strength is the stress a material can withstand without permanent deformation or a point at which it will no longer return to its original dimensions (by 0.2% in length). Whereas, Tensile Strength is the maximum stress that a material can withstand while being stretched or pulled before failing or breaking.
How do you find the yield point on a graph?
To find yield strength, the predetermined amount of permanent strain is set along the strain axis of the graph, to the right of the origin (zero). It is indicated in Figure 5 as Point (D). A straight line is drawn through Point (D) at the same slope as the initial portion of the stress-strain curve.
What is UTS of material?
The U.T.S. is a point in a material where it begins to break down and tear. “The straw that broke the camels back” is a very good analogy to this point at which the bonds in the material begin to break and the material becomes weaker. In the stress-strain curve above, the U.T.S. is denoted as the “tensile strength”.
What is yield point in drilling mud?
Yield point is generally defined as the elastic limit at which a material will lose its elasticity and deform permanently. For drilling fluids, yield point refers to the resistance of initial flow of the fluid or in other words, the stress required to start the movement of the fluid.
What is yield stress formula?
Calculation of Yield Stress
There is no formula to calculate yield stress. The yield stress of a material is determined through experimentation. A material sample is loaded with an axial force and the resulting deformation is recorded.
What is ultimate point?
It is the stress corresponding to the yield point (upper) in the engineering stress-strain curve under tensile loading. It is the stress corresponding to the ultimate tensile strength (UTS) point in the engineering stress-strain curve under tensile loading.
