Unknown Audio Device

Unknown Audio Device

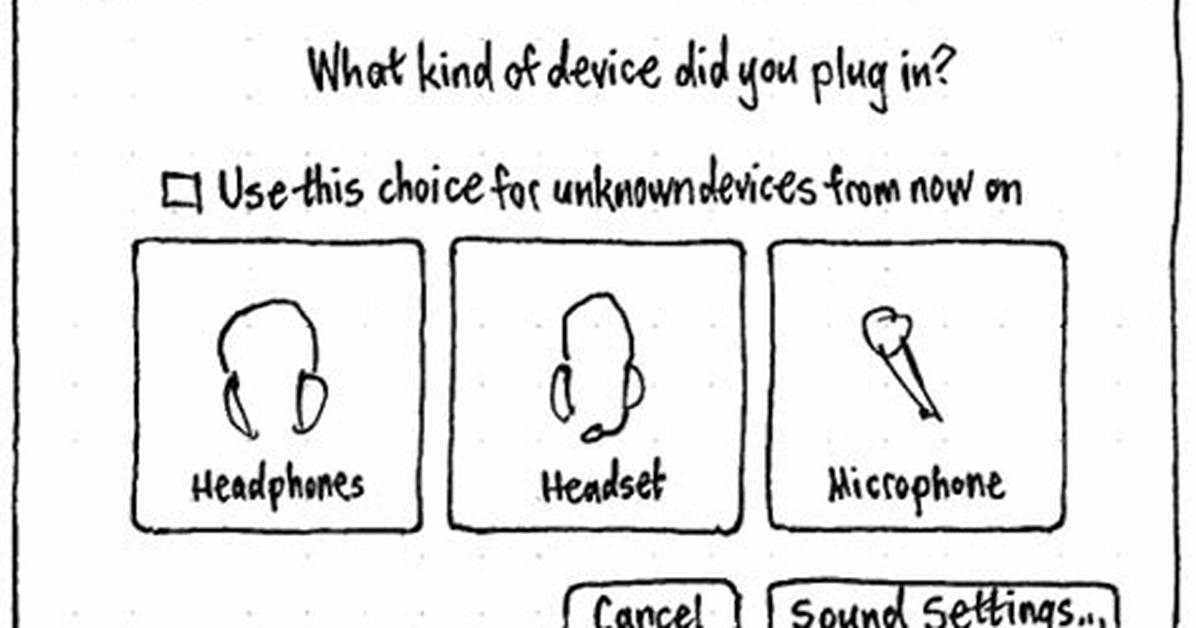

I plugged in a mobile headset (in-ear speakers with mic) but this keeps popping up.

Unknown Audio Device
What kind of device did you plug in?
Headphones | Headset | Microphone
Cancel | Sound Settings

Is there any place in the file-system where I can hardcode this setting ?

anjanesh@anjanesh-Latitude-3560:~$ dpkg -l | grep -i jack
ii  libjack-jackd2-0:amd64                                1.9.9.5+20130622git7de15e7a-1ubuntu1                     amd64        JACK Audio Connection Kit (libraries)

Ubuntu 14.04 LTS on my Dell Latitude 3560 laptop.

7

1 Answer

I have found the source of this window. It is unity-settings-daemon's plugin located in line 99 of plugins/media-keys/what-did-you-plug-in/dialog-window.c (in dialog_create function, called later by wdypi_dialog_run):

88    gtk_window_set_title(GTK_WINDOW(d->dialog), _("Unknown Audio Device"));
...
99    d->label = gtk_label_new(_("What kind of device did you plug in?"));
...
103   d->hp_btn = create_icon_button(WDYPI_DIALOG_HEADPHONES, _("Headphones"), "audio-headphones");
...
106   d->hs_btn = create_icon_button(WDYPI_DIALOG_HEADSET, _("Headset"), "audio-headset");
...
110   d->mic_btn = create_icon_button(WDYPI_DIALOG_MICROPHONE, _("Microphone"), "audio-input-microphone");
...
115   d->cancel_btn = gtk_dialog_add_button(GTK_DIALOG(d->dialog), _("Cancel"), GTK_RESPONSE_CANCEL);
116   d->settings_btn = gtk_dialog_add_button(GTK_DIALOG(d->dialog), _("Sound Settings…"), GTK_RESPONSE_YES);

This dialog is shown by PulseAudio event see line 2720 of plugins/media-keys/gsd-media-keys-manager.c: on_control_card_info_updated calls pa_backend_card_changed (then it calls get_headset_ports) :

static headset_ports get_headset_ports(const pa_card_info *c)
{
    headset_ports h = {NULL, NULL, NULL};
    int i;
    for (i = 0; i < c->n_ports; i++) {
        pa_card_port_info *p = c->ports[i];
        if (!strcmp(p->name, "analog-output-headphones"))
            h.headphones = p;
        else if (!strcmp(p->name, "analog-input-microphone-headset"))
            h.headsetmic = p;
        else if (!strcmp(p->name, "analog-input-microphone"))
            h.headphonemic = p;
    }
    return h;
}

and finally shows dialog with on_wdypi_popup and wdypi_dialog_run.

In the installed system this phrase ("What kind of device did you plug in?") is found in:

unity-settings-daemon: /usr/lib/unity-settings-daemon/usd-test-media-keys
unity-settings-daemon: /usr/lib/unity-settings-daemon-1.0/libmedia-keys.so

According to source code clicking on "Sound Settings" will open unity-control-center sound.


Note: the libjack-jackd2-0:amd64 package is pre-installed on clean Ubuntu 14.04 LTS.

$ aptitude why libjack-jackd2-0:amd64
i   gstreamer1.0-plugins-good Depends libjack-jackd2-0 (>= 1.9.5~dfsg-14) | libjack-0.116

$ aptitude why gstreamer1.0-plugins-good
i   rhythmbox Depends gstreamer1.0-plugins-good (>= 1.0.6)

Sound is maintained by PulseAudio and then by Unity Settings Daemon.
