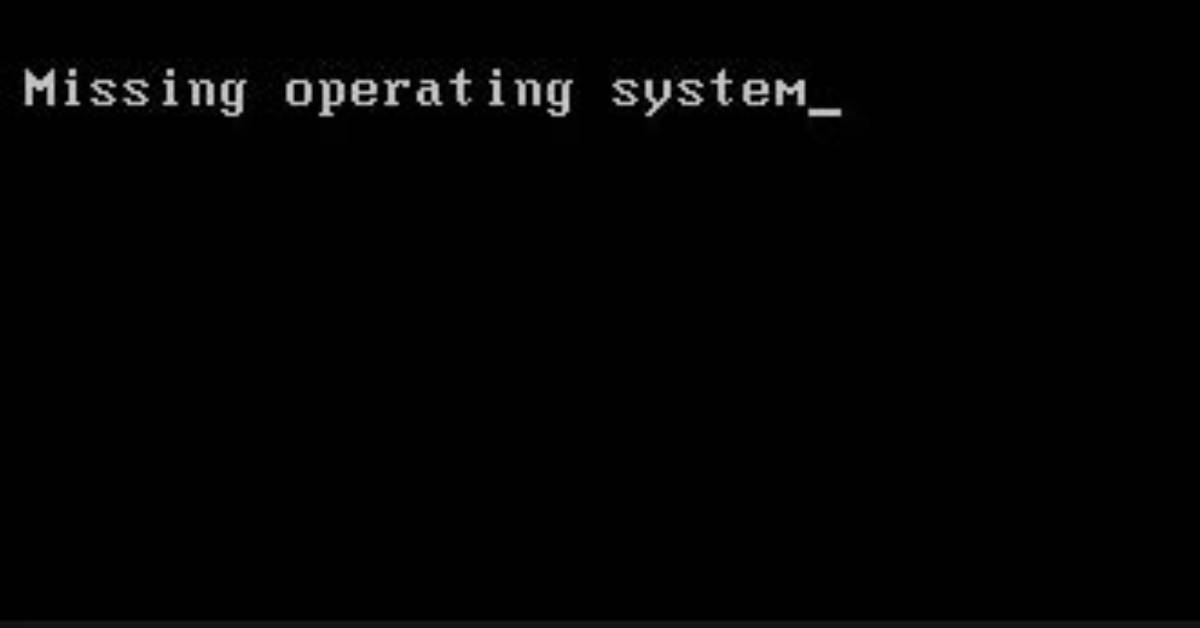

I had installed Ubuntu 11.10 along with the another Ubuntu 11.10 which already installed on my netbook. Later I formatted the partition I newly installed. Next time when I boot it went to Grub Rescue menu. I boot my system again with Ubuntu USB stick, Then I installed Boot repair package in USB and restored MBR and GRUB menu in the hard disk. Now when I am restarting, I am getting a message "Missing operating system." press any key to continue. Can somebody help me on this?
Below is the output for sudo fdisk -l
omitting empty partition (7) Disk /dev/sda: 160.0 GB, 160041885696 bytes 255 heads, 63 sectors/track, 19457 cylinders, total 312581808 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disk identifier: 0x00058a60 Device Boot Start End Blocks Id System /dev/sda1 * 2048 204072287 102035120 83 Linux /dev/sda2 204072958 312580095 54253569 5 Extended /dev/sda5 310507520 312580095 1036288 82 Linux swap / Solaris /dev/sda6 308432896 310503423 1035264 82 Linux swap / Solaris Partition table entries are not in disk order Disk /dev/sdb: 4006 MB, 4006608896 bytes 124 heads, 62 sectors/track, 1017 cylinders, total 7825408 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disk identifier: 0x0004d3df Device Boot Start End Blocks Id System /dev/sdb1 * 62 7818695 3909317 b W95 FAT32
Below is the output for sudo blkid
/dev/loop0: TYPE="squashfs" /dev/loop1: LABEL="casper-rw" UUID="533defb1-f073-254a-b46f-7ca0ac1f4e0c" TYPE="ext2" /dev/sda1: LABEL="Ubuntu" UUID="6a141040-3ba8-457a-9de5-ad06e6057084" TYPE="ext4" /dev/sda5: UUID="3a7f62d6-9c65-4d12-a3b6-5d62b9710f7d" TYPE="swap" /dev/sda6: UUID="274da115-cec2-4418-a1af-88fe921e3670" TYPE="swap" /dev/sdb1: LABEL="PENDRIVE" UUID="EC22-6BE4" TYPE="vfat"
File /boot/grub/grub.cfg
#
# DO NOT EDIT THIS FILE
#
# It is automatically generated by grub-mkconfig using templates
# from /etc/grub.d and settings from /etc/default/grub
#
### BEGIN /etc/grub.d/00_header ###
if [ -s $prefix/grubenv ]; then
set have_grubenv=true
load_env
fi
set default="0"
if [ "${prev_saved_entry}" ]; then
set saved_entry="${prev_saved_entry}"
save_env saved_entry
set prev_saved_entry=
save_env prev_saved_entry
set boot_once=true
fi
function savedefault {
if [ -z "${boot_once}" ]; then
saved_entry="${chosen}"
save_env saved_entry
fi
}
function recordfail {
set recordfail=1
if [ -n "${have_grubenv}" ]; then if [ -z "${boot_once}" ]; then save_env recordfail; fi; fi
}
function load_video {
insmod vbe
insmod vga
insmod video_bochs
insmod video_cirrus
}
insmod part_msdos
insmod ext2
set root='(hd0,msdos1)'
search --no-floppy --fs-uuid --set=root 6a141040-3ba8-457a-9de5-ad06e6057084
if loadfont /usr/share/grub/unicode.pf2 ; then
set gfxmode=auto
load_video
insmod gfxterm
insmod part_msdos
insmod ext2
set root='(hd0,msdos1)'
search --no-floppy --fs-uuid --set=root 6a141040-3ba8-457a-9de5-ad06e6057084
set locale_dir=($root)/boot/grub/locale
set lang=en_US
insmod gettext
fi
terminal_output gfxterm
if [ "${recordfail}" = 1 ]; then
set timeout=10
else
set timeout=10
fi
### END /etc/grub.d/00_header ###
### BEGIN /etc/grub.d/05_debian_theme ###
set menu_color_normal=white/black
set menu_color_highlight=black/light-gray
if background_color 44,0,30; then
clear
fi
### END /etc/grub.d/05_debian_theme ###
### BEGIN /etc/grub.d/10_linux ###
if [ ${recordfail} != 1 ]; then
if [ -e ${prefix}/gfxblacklist.txt ]; then
if hwmatch ${prefix}/gfxblacklist.txt 3; then
if [ ${match} = 0 ]; then
set linux_gfx_mode=keep
else
set linux_gfx_mode=text
fi
else
set linux_gfx_mode=text
fi
else
set linux_gfx_mode=keep
fi
else
set linux_gfx_mode=text
fi
export linux_gfx_mode
if [ "$linux_gfx_mode" != "text" ]; then load_video; fi
menuentry 'Ubuntu, with Linux 3.0.0-12-generic' --class ubuntu --class gnu-linux --class gnu --class os {
recordfail
set gfxpayload=$linux_gfx_mode
insmod gzio
insmod part_msdos
insmod ext2
set root='(hd0,msdos1)'
search --no-floppy --fs-uuid --set=root 6a141040-3ba8-457a-9de5-ad06e6057084
linux /boot/vmlinuz-3.0.0-12-generic root=UUID=6a141040-3ba8-457a-9de5-ad06e6057084 ro quiet splash vt.handoff=7
initrd /boot/initrd.img-3.0.0-12-generic
}
menuentry 'Ubuntu, with Linux 3.0.0-12-generic (recovery mode)' --class ubuntu --class gnu-linux --class gnu --class os {
recordfail
insmod gzio
insmod part_msdos
insmod ext2
set root='(hd0,msdos1)'
search --no-floppy --fs-uuid --set=root 6a141040-3ba8-457a-9de5-ad06e6057084
echo 'Loading Linux 3.0.0-12-generic ...'
linux /boot/vmlinuz-3.0.0-12-generic root=UUID=6a141040-3ba8-457a-9de5-ad06e6057084 ro recovery nomodeset
echo 'Loading initial ramdisk ...'
initrd /boot/initrd.img-3.0.0-12-generic
}
### END /etc/grub.d/10_linux ###
### BEGIN /etc/grub.d/20_linux_xen ###
### END /etc/grub.d/20_linux_xen ###
### BEGIN /etc/grub.d/20_memtest86+ ###
menuentry "Memory test (memtest86+)" {
insmod part_msdos
insmod ext2
set root='(hd0,msdos1)'
search --no-floppy --fs-uuid --set=root 6a141040-3ba8-457a-9de5-ad06e6057084
linux16 /boot/memtest86+.bin
}
menuentry "Memory test (memtest86+, serial console 115200)" {
insmod part_msdos
insmod ext2
set root='(hd0,msdos1)'
search --no-floppy --fs-uuid --set=root 6a141040-3ba8-457a-9de5-ad06e6057084
linux16 /boot/memtest86+.bin console=ttyS0,115200n8
}
### END /etc/grub.d/20_memtest86+ ###
### BEGIN /etc/grub.d/30_os-prober ###
### END /etc/grub.d/30_os-prober ###
### BEGIN /etc/grub.d/40_custom ###
# This file provides an easy way to add custom menu entries. Simply type the
# menu entries you want to add after this comment. Be careful not to change
# the 'exec tail' line above.
### END /etc/grub.d/40_custom ###
### BEGIN /etc/grub.d/41_custom ###
if [ -f $prefix/custom.cfg ]; then
source $prefix/custom.cfg;
fi
### END /etc/grub.d/41_custom ###
2 Answers
Your Grub file seems ok. I suggest installing Grub2 manually again. First, start Ubuntu from USB stick and do not mount your installed Ubuntu. Open a terminal and apply those commands:
sudo mount /dev/sda1 /mnt
sudo mount --bind /dev /mnt/dev
sudo mount --bind /dev/pts /mnt/dev/pts
sudo mount --bind /proc /mnt/proc
sudo mount --bind /sys /mnt/sys
sudo chroot /mnt
grub-install --force /dev/sda
You can check if it is OK or not with:
grub-install --recheck --force /dev/sda
If everything is ok, unmount all the things and quit:
exit
sudo umount /mnt/dev/pts
sudo umount /mnt/dev
sudo umount /mnt/proc
sudo umount /mnt/sys
sudo umount /mnt
sudo reboot
You need to ensure you remove the USB stick when restarting after you have completed the new install.
Power the laptop down, remove the USB stick then try booting again.
