I have the following dataframe:
data = {'Var1':[3, 8, 4, 2, 13],
'Var2':[5, 7, 9, 10, 15],
'Name':['obs1', 'obs2', 'obs3', 'obs4', 'obs5']}
df1 = pd.DataFrame(data)
And I add labels according to the variable "Name":
import seaborn as sns
sns.scatterplot(data=df1,x='Var1',y='Var2')
for i in range(df1.shape[0]):
plt.text(x=df1.Var1[i]+0.3, y=df1.Var2[i]+0.3,s=df1.Name[i],
fontdict=dict(color="black",size=10),
bbox=dict(facecolor="white",alpha=0.5))

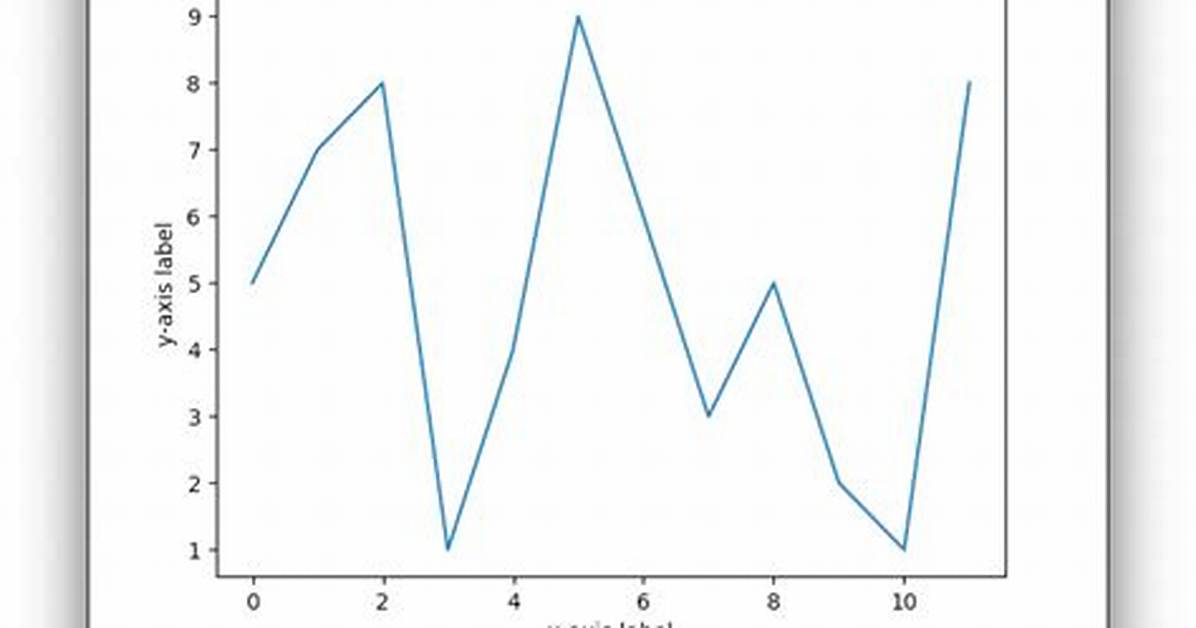

Here is the result:
Now i would like to show the labels under two conditions : if the observations are above 14 and below 8, then I show the labels.
Do you have a solution ? Thank you !
1 Answer
You can just use a simple condition in your loop. Here I skip the loop if 8<Val2<14 using the continue keyword:
import seaborn as sns
sns.scatterplot(data=df1,x='Var1',y='Var2')
for i in range(df1.shape[0]):
if 8<df1.Var2[i]<14:
continue
plt.text(x=df1.Var1[i]+0.3, y=df1.Var2[i]+0.3,s=df1.Name[i],
fontdict=dict(color="black",size=10),
bbox=dict(facecolor="white",alpha=0.5)
)
output:
alternative code formatting
I take the opportunity to show you a cleaner way for your code (In my opinion):
import seaborn as sns
sns.scatterplot(data=df1,x='Var1',y='Var2')
options = dict(fontdict=dict(color="black",size=10),
bbox=dict(facecolor="white",alpha=0.5))
for i, (x,y,name) in df1.iterrows():
if y<8 or y>14:
plt.text(x=x+0.3, y=y+0.3, s=name, **options)
