Which Jre Does C: \Programdata\Oracle\Java\Javapath\Java. Exe Use?

Elena Rostova • • 5 min read
Which Jre Does C: \Programdata\Oracle\Java\Javapath\Java. Exe Use?

I'm trying to figure out which environment variable java uses to find/detect the JRE used by C:\ProgramData\Oracle\Java\javapath\java.exe.

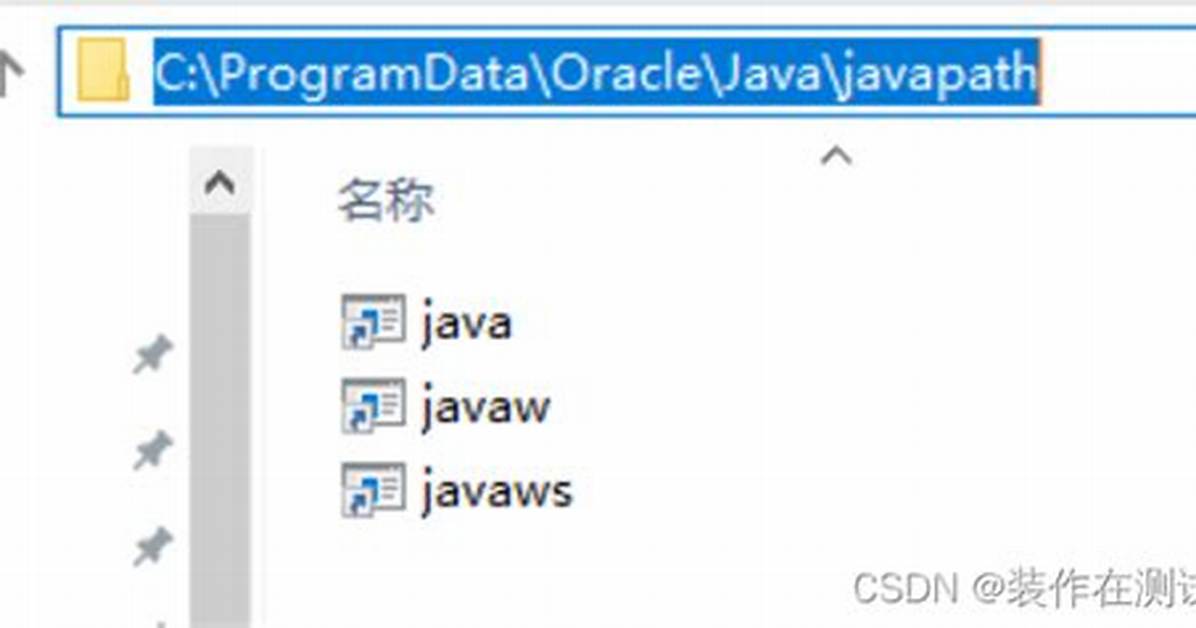

As per Oracle's design, the only files I have in the C:\ProgramData\Oracle\Java\javapath\ are

  • java.exe
  • javaw.exe
  • javaws.exe

If I set my JAVA_HOME to empty or to some random folder, running an application with java.exe still works. So I can only assume that it isn't using the JAVA_HOME value. So how does it find the JRE folder? Does it default to something specific? I have no JRE_HOME var set either.

4

4 Answers

Regular Directory with File Symlinks inside

If you look at the files in C:\ProgramData\Oracle\Java\javapath\ you will see that they are actually symlinks to a specific java binaries.

2015-11-13  06:11 PM    <SYMLINK>      java.exe [C:\Program Files\Java\jre1.8.0_65\bin\java.exe]
2015-11-13  06:11 PM    <SYMLINK>      javaw.exe [C:\Program Files\Java\jre1.8.0_65\bin\javaw.exe]
2015-11-13  06:11 PM    <SYMLINK>      javaws.exe [C:\Program Files\Java\jre1.8.0_65\bin\javaws.exe]

Directory Junction with regular Files inside

Using the latest (64! bit) install of Java 8 actually prepends onto the system path another location: c:\Program Files (x86)\Common Files\Oracle\Java\javapath. This time, the javapath itself is the junction:

2018-07-21  05:59 PM    <JUNCTION>     javapath [C:\Program Files (x86)\Common Files\Oracle\Java\javapath_target_172906453]
2018-07-21  05:59 PM    <DIR>          javapath_target_172906453

And now, interestingly, the java.exe etc. in the javapath_target_... folder are not symlinks. These files find JRE and JDK versions using this registry location:

[HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft\Java Runtime Environment]
"CurrentVersion"="1.8"

[HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft\Java Runtime Environment\1.8]
"JavaHome"="C:\\Program Files\\Java\\jre1.8.0_65"
1

This will give you an idea:

java -verbose | more
1

These "new" JDK 8 / 64-bit behavior is so obfuscated, I could not guess why my application would not start, because I had the JDK (with the private JRE) and every path variable setup, still no start. After some time I installed JRE8 alone and it worked. Firstly the regedit - keys are only written by the public JRE.... Ok.

Then I wanted to know which Runtime the app used, I renamed all java* .exe, yet it still worked64-bitI renamed all-new regedit keys. It still worked...

End of story: with Windows 64 the regedit keys are in HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft (32bit) and

HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\JavaSoft (64bit)

and my app worked because

HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\JavaSoft\Java Runtime Environment\1.8\RuntimeLib\

pointed to jvm.dll which revered a symlink. I need a beer, I want another Job :-)

Here is a nice link, which explains the Regedit-Keys and the different "discovery methods" which Java uses to find the newest installed version:

Still the SYSLink - Change with JDK8 seems to be an undocumented change which was introduced before JRE8u171.

My sysLink Path was C:\Program Files (x86)\Common Files\Oracle\Java with was actually a Junction to a subdirectory. And the JDK8 installer copies the java*.exe files into Windows\System32\ btw.

More Infos:

  • - What's the sense of C:\ProgramData\Oracle\Java\javapath (on Windows 10)?

Sorry for my rant, I'm so frustrated right now. I hope it helps somebody else.

1

Try java -verbose with findstr

Example:

C:\>java -verbose 2>nul | findstr /I opened
[Opened C:\Program Files\Java\jre1.8.0_201\lib\rt.jar]

Try reg query with /s

Example:

C:\>reg query "HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft\Java Runtime Environment" /s

HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft\Java Runtime Environment
    CurrentVersion    REG_SZ    1.8
    BrowserJavaVersion    REG_SZ    11.201.2

HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft\Java Runtime Environment\1.8
    RuntimeLib    REG_SZ    C:\Program Files\Java\jre1.8.0_201\bin\server\jvm.dll
    JavaHome    REG_SZ    C:\Program Files\Java\jre1.8.0_201
    MicroVersion    REG_SZ    0

HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft\Java Runtime Environment\1.8.0_201
    JavaHome    REG_SZ    C:\Program Files\Java\jre1.8.0_201
    MicroVersion    REG_SZ    0
    RuntimeLib    REG_SZ    C:\Program Files\Java\jre1.8.0_201\bin\server\jvm.dll

HKEY_LOCAL_MACHINE\SOFTWARE\JavaSoft\Java Runtime Environment\1.8.0_201\MSI
    INSTALLDIR    REG_SZ    C:\Program Files\Java\jre1.8.0_201\
    JU    REG_SZ
    OEMUPDATE    REG_SZ
    FROMVERSION    REG_SZ    NA
    FROMVERSIONFULL    REG_SZ
    PRODUCTVERSION    REG_SZ    8.0.2010.9
    EULA    REG_SZ
    JAVAUPDATE    REG_SZ    1
    AUTOUPDATECHECK    REG_SZ    1
    AUTOUPDATEDELAY    REG_SZ
    FullVersion    REG_SZ    1.8.0_201-b09


C:\>

Try Get-Command java

Note: If you just care about the version number, then you might want to try PowerShell's Get-Command:

PS C:\> Get-Command java | ft -AutoSize

CommandType  Name      Version    Source
-----------  ----      -------    ------
Application  java.exe  8.0.201.9  C:\Program Files (x86)\Common
Files\Oracle\Java\javapath\java.exe
