"Assertdescription: Cdk Bootstrap Stack Version 6 Required"

"Assertdescription: Cdk Bootstrap Stack Version 6 Required"

I'm fairly new (today its the first day) with Amazon CDK. I have been currently following the initial tutorial in Amazon's CDK page.

I have installed aws and cdk:

aws --version
aws-cli/2.2.5 Python/3.8.8 Linux/5.11.0-43-generic exe/x86_64.ubuntu.20 prompt/off

cdk --version
2.3.0 (build beaa5b2)

I have added the following code to create a simple lambda function:

notifyTodoScheduleFullDay/bin/notify_todo_schedule_full_day.ts

#!/usr/bin/env node
import 'source-map-support/register';
import * as cdk from 'aws-cdk-lib';
import { NotifyTodoScheduleFullDayStack } from '../lib/notify_todo_schedule_full_day-stack';

const app = new cdk.App();
new NotifyTodoScheduleFullDayStack(app, 'NotifyTodoScheduleFullDayStack', {});

notifyTodoScheduleFullDay/lib/notify_todo_schedule_full_day-stack.ts

import * as cdk from 'aws-cdk-lib';
import { aws_lambda_nodejs as lambda } from 'aws-cdk-lib';

export class NotifyTodoScheduleFullDayStack extends cdk.Stack {
  constructor(scope: cdk.App, id: string, props?: cdk.StackProps) {
    super(scope, id, props);

    new lambda.NodejsFunction(this, "notifyTodoScheduleFullDay", {
      entry: "src/index.ts",
      handler: "handler",
      bundling: {
        minify: true, // minify code, defaults to false
        target: 'es2020', // target environment for the generated JavaScript code
        define: { // Replace strings during build time
          'process.env.API_KEY': JSON.stringify('xxx-xxxx-xxx'),
          'process.env.PRODUCTION': JSON.stringify(true),
          'process.env.NUMBER': JSON.stringify(123),
        },
        logLevel: lambda.LogLevel.WARNING, // defaults to LogLevel.WARNING
        charset: lambda.Charset.UTF8, // do not escape non-ASCII characters, defaults to Charset.ASCII
      },
    });
  }
}

notifyTodoScheduleFullDay/src/index.ts

export const handler = () => {
  return {
    statusCode: 200,
    headers: {},
    body: "This is a test"
  }
}

Now when I run cdk synth:

...
Successfully built 02d6914d6b53
Successfully tagged cdk-8fdc30cb2c9ed412046010e799d65c0ea32740bedc9d91b938c57d400ad7b53e:latest
Bundling asset NotifyTodoScheduleFullDayStack/notifyTodoScheduleFullDay/Code/Stage...
esbuild cannot run locally. Switching to Docker bundling.
Resources:
  notifyTodoScheduleFullDayServiceRoleC004AA77:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Statement:
          - Action: sts:AssumeRole
            Effect: Allow
            Principal:
              Service: lambda.amazonaws.com
        Version: "2012-10-17"
      ManagedPolicyArns:
        - Fn::Join:
            - ""
            - - "arn:"
              - Ref: AWS::Partition
              - :iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
    Metadata:
      aws:cdk:path: NotifyTodoScheduleFullDayStack/notifyTodoScheduleFullDay/ServiceRole/Resource
  notifyTodoScheduleFullDay200FABC6:
    Type: AWS::Lambda::Function
    Properties:
      Code:
        S3Bucket:
          Fn::Sub: cdk-hnb659fds-assets-${AWS::AccountId}-${AWS::Region}
        S3Key: da842e2df006207da8989140b01b302408f071b2f74188cae1f4624fd056614f.zip
      Role:
        Fn::GetAtt:
          - notifyTodoScheduleFullDayServiceRoleC004AA77
          - Arn
      Environment:
        Variables:
          AWS_NODEJS_CONNECTION_REUSE_ENABLED: "1"
      Handler: index.handler
      Runtime: nodejs14.x
    DependsOn:
      - notifyTodoScheduleFullDayServiceRoleC004AA77
    Metadata:
      aws:cdk:path: NotifyTodoScheduleFullDayStack/notifyTodoScheduleFullDay/Resource
      aws:asset:path: asset.da842e2df006207da8989140b01b302408f071b2f74188cae1f4624fd056614f
      aws:asset:is-bundled: true
      aws:asset:property: Code
  CDKMetadata:
    Type: AWS::CDK::Metadata
    Properties:
      Analytics: v2:deflate64:H4sIAAAAAAAA/zWOzQ6CMAyAn4X7qCImnoXEowd8ADK2SspPl9BND4R3d4x4+tLmy9deoIRzpr+SGzvmE3Wwvrw2o4qrdp303FndsrM4CDwTHoGNJ8eK9Axr4yZU9Zt3bkrKVougF7jviDNUwYzoKy2ojhpE+9/YVPLixZ64Tx0UFxaTmrVjS4e2fwCDnD7FFYobFNkgRPkS2NOM0Bz8Aem4EiHMAAAA
    Metadata:
      aws:cdk:path: NotifyTodoScheduleFullDayStack/CDKMetadata/Default
    Condition: CDKMetadataAvailable
Conditions:
  CDKMetadataAvailable:
    Fn::Or:
      - Fn::Or:
          - Fn::Equals:
              - Ref: AWS::Region
              - af-south-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-east-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-northeast-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-northeast-2
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-south-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-southeast-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-southeast-2
          - Fn::Equals:
              - Ref: AWS::Region
              - ca-central-1
          - Fn::Equals:
              - Ref: AWS::Region
              - cn-north-1
          - Fn::Equals:
              - Ref: AWS::Region
              - cn-northwest-1
      - Fn::Or:
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-central-1
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-north-1
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-south-1
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-west-1
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-west-2
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-west-3
          - Fn::Equals:
              - Ref: AWS::Region
              - me-south-1
          - Fn::Equals:
              - Ref: AWS::Region
              - sa-east-1
          - Fn::Equals:
              - Ref: AWS::Region
              - us-east-1
          - Fn::Equals:
              - Ref: AWS::Region
              - us-east-2
      - Fn::Or:
          - Fn::Equals:
              - Ref: AWS::Region
              - us-west-1
          - Fn::Equals:
              - Ref: AWS::Region
              - us-west-2

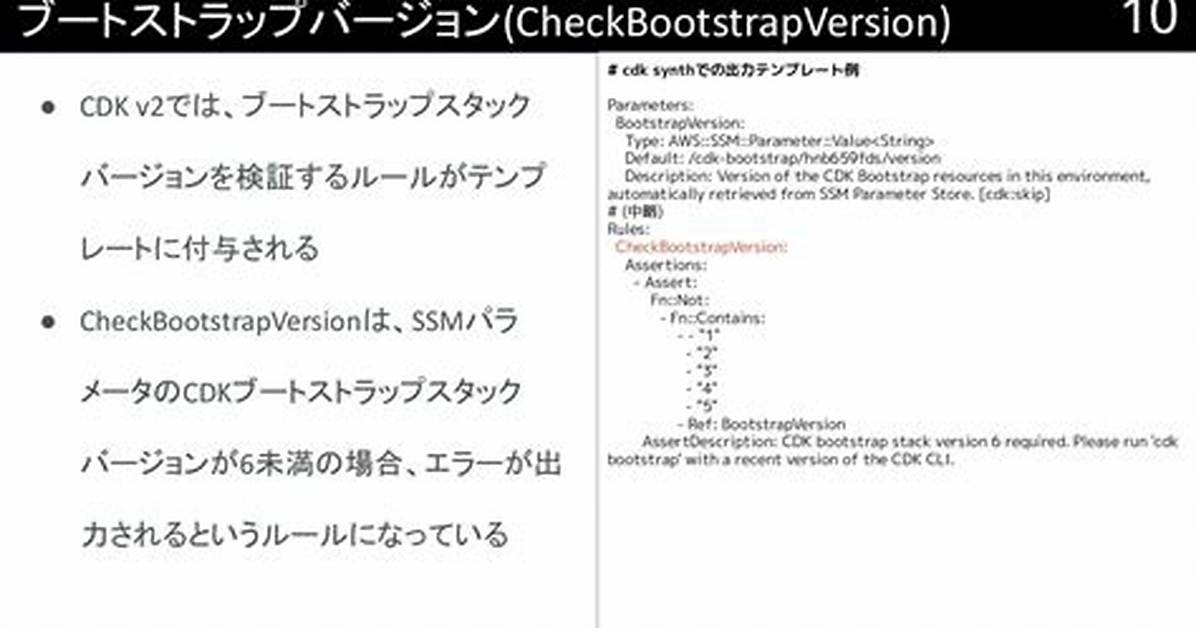

Parameters:
  BootstrapVersion:
    Type: AWS::SSM::Parameter::Value<String>
    Default: /cdk-bootstrap/hnb659fds/version
    Description: Version of the CDK Bootstrap resources in this environment, automatically retrieved from SSM Parameter Store. [cdk:skip]
Rules:
  CheckBootstrapVersion:
    Assertions:
      - Assert:
          Fn::Not:
            - Fn::Contains:
                - - "1"
                  - "2"
                  - "3"
                  - "4"
                  - "5"
                - Ref: BootstrapVersion
        AssertDescription: CDK bootstrap stack version 6 required. Please run 'cdk bootstrap' with a recent version of the CDK CLI.

Now when I try to deploy with cdk deploy --profile xxxx I get:

...
current credentials could not be used to assume 'arn:aws:iam::359163713835:role/cdk-hnb659fds-deploy-role-359163713835-eu-central-1', but are for the right account. Proceeding anyway.
This deployment will make potentially sensitive changes according to your current security approval level (--require-approval broadening).
Please confirm you intend to make the following modifications:

IAM Statement Changes
┌───┬──────────────────────────────────────────────┬────────┬────────────────┬──────────────────────────────┬───────────┐
│   │ Resource                                     │ Effect │ Action         │ Principal                    │ Condition │
├───┼──────────────────────────────────────────────┼────────┼────────────────┼──────────────────────────────┼───────────┤
│ + │ ${notifyTodoScheduleFullDay/ServiceRole.Arn} │ Allow  │ sts:AssumeRole │ Service:lambda.amazonaws.com │           │
└───┴──────────────────────────────────────────────┴────────┴────────────────┴──────────────────────────────┴───────────┘
IAM Policy Changes
┌───┬──────────────────────────────────────────┬────────────────────────────────────────────────────────────────────────────────┐
│   │ Resource                                 │ Managed Policy ARN                                                             │
├───┼──────────────────────────────────────────┼────────────────────────────────────────────────────────────────────────────────┤
│ + │ ${notifyTodoScheduleFullDay/ServiceRole} │ arn:${AWS::Partition}:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole │
└───┴──────────────────────────────────────────┴────────────────────────────────────────────────────────────────────────────────┘
(NOTE: There may be security-related changes not in this list. See )

Do you wish to deploy these changes (y/n)? y
NotifyTodoScheduleFullDayStack: deploying...
current credentials could not be used to assume 'arn:aws:iam::359163713835:role/cdk-hnb659fds-deploy-role-359163713835-eu-central-1', but are for the right account. Proceeding anyway.
Could not read SSM parameter /cdk-bootstrap/hnb659fds/version: User: arn:aws:iam::359163713835:user/lambda-functions is not authorized to perform: ssm:GetParameter on resource: arn:aws:ssm:eu-central-1:359163713835:parameter/cdk-bootstrap/hnb659fds/version because no identity-based policy allows the ssm:GetParameter action

 ❌  NotifyTodoScheduleFullDayStack failed: Error: NotifyTodoScheduleFullDayStack: This CDK deployment requires bootstrap stack version '6', found an older version. Please run 'cdk bootstrap'.
    at CloudFormationDeployments.validateBootstrapStackVersion (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/api/cloudformation-deployments.ts:323:13)
    at processTicksAndRejections (internal/process/task_queues.js:95:5)
    at CloudFormationDeployments.publishStackAssets (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/api/cloudformation-deployments.ts:298:7)
    at CloudFormationDeployments.deployStack (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/api/cloudformation-deployments.ts:202:5)
    at CdkToolkit.deploy (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/cdk-toolkit.ts:194:24)
    at initCommandLine (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/bin/cdk.ts:267:9)
NotifyTodoScheduleFullDayStack: This CDK deployment requires bootstrap stack version '6', found an older version. Please run 'cdk bootstrap'.

What exactly is going on? Why am I not being able to deploy my stack?

Update

cdk bootstrap

Sending build context to Docker daemon  138.2kB
Step 1/12 : ARG IMAGE=
Step 2/12 : FROM $IMAGE
 ---> 3147f2b9c981
Step 3/12 : RUN npm install --global yarn@1.22.5
 ---> Using cache
 ---> bf8f25f59972
Step 4/12 : RUN npm install --global pnpm
 ---> Using cache
 ---> 4310f7c1d337
Step 5/12 : RUN npm install --global typescript
 ---> Using cache
 ---> 8380434f397e
Step 6/12 : ARG ESBUILD_VERSION=0
 ---> Using cache
 ---> 1acd8da9c4f4
Step 7/12 : RUN npm install --global --unsafe-perm=true esbuild@$ESBUILD_VERSION
 ---> Using cache
 ---> 9cc9743c5a2f
Step 8/12 : RUN mkdir /tmp/npm-cache &&     chmod -R 777 /tmp/npm-cache &&     npm config --global set cache /tmp/npm-cache
 ---> Using cache
 ---> 5b9c8267e6a7
Step 9/12 : RUN mkdir /tmp/yarn-cache &&     chmod -R 777 /tmp/yarn-cache &&     yarn config set cache-folder /tmp/yarn-cache
 ---> Using cache
 ---> 71ea1be33795
Step 10/12 : RUN npm config --global set update-notifier false
 ---> Using cache
 ---> f7ea8d8d458a
Step 11/12 : RUN /sbin/useradd -u 1000 user && chmod 711 /
 ---> Using cache
 ---> c663ca63d996
Step 12/12 : CMD [ "esbuild" ]
 ---> Using cache
 ---> 02d6914d6b53
Successfully built 02d6914d6b53
Successfully tagged cdk-8fdc30cb2c9ed412046010e799d65c0ea32740bedc9d91b938c57d400ad7b53e:latest
 ⏳  Bootstrapping environment aws://835950464690/eu-central-1...
Trusted accounts for deployment: (none)
Trusted accounts for lookup: (none)
Using default execution policy of 'arn:aws:iam::aws:policy/AdministratorAccess'. Pass '--cloudformation-execution-policies' to customize.

Running aws ssm get-parameter --name /cdk-bootstrap/hnb659fds/version --profile xxxxx --region eu-west-2 gives me:

An error occurred (AccessDeniedException) when calling the GetParameter operation: User: arn:aws:iam::359163713835:user/lambda-functions is not authorized to perform: ssm:GetParameter on resource: arn:aws:ssm:eu-west-2:359163713835:parameter/cdk-bootstrap/hnb659fds/version because no identity-based policy allows the ssm:GetParameter action

Update 2

After help from @gshpychka I have noticed that it was missing some permissions. I have setup the AmazonSSMFullAccess and AWSLambda_FullAccess in my users account. Now the error original to this question has gone away. Now the error I'm getting is:

$ cdk deploy --profile todozito-lambda-functions
Reading existing template for stack NotifyTodoScheduleFullDayStack.
Retrieved account ID 359163713835 from disk cache
Assuming role 'arn:aws:iam::359163713835:role/cdk-hnb659fds-deploy-role-359163713835-eu-west-2'.
Assuming role failed: User: arn:aws:iam::359163713835:user/lambda-functions is not authorized to perform: sts:AssumeRole on resource: arn:aws:iam::359163713835:role/cdk-hnb659fds-deploy-role-359163713835-eu-west-2
Could not assume role in target account using current credentials User: arn:aws:iam::359163713835:user/lambda-functions is not authorized to perform: sts:AssumeRole on resource: arn:aws:iam::359163713835:role/cdk-hnb659fds-deploy-role-359163713835-eu-west-2 . Please make sure that this role exists in the account. If it doesn't exist, (re)-bootstrap the environment with the right '--trust', using the latest version of the CDK CLI.
current credentials could not be used to assume 'arn:aws:iam::359163713835:role/cdk-hnb659fds-deploy-role-359163713835-eu-west-2', but are for the right account. Proceeding anyway.
Call failed: describeStacks({"StackName":"NotifyTodoScheduleFullDayStack"}) => Stack with id NotifyTodoScheduleFullDayStack does not exist (code=ValidationError)
This deployment will make potentially sensitive changes according to your current security approval level (--require-approval broadening).
Please confirm you intend to make the following modifications:


IAM Statement Changes
┌───┬──────────────────────────────────────────────┬────────┬────────────────┬──────────────────────────────┬───────────┐
│   │ Resource                                     │ Effect │ Action         │ Principal                    │ Condition │
├───┼──────────────────────────────────────────────┼────────┼────────────────┼──────────────────────────────┼───────────┤
│ + │ ${notifyTodoScheduleFullDay/ServiceRole.Arn} │ Allow  │ sts:AssumeRole │ Service:lambda.amazonaws.com │           │
└───┴──────────────────────────────────────────────┴────────┴────────────────┴──────────────────────────────┴───────────┘
IAM Policy Changes
┌───┬──────────────────────────────────────────┬────────────────────────────────────────────────────────────────────────────────┐
│   │ Resource                                 │ Managed Policy ARN                                                             │
├───┼──────────────────────────────────────────┼────────────────────────────────────────────────────────────────────────────────┤
│ + │ ${notifyTodoScheduleFullDay/ServiceRole} │ arn:${AWS::Partition}:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole │
└───┴──────────────────────────────────────────┴────────────────────────────────────────────────────────────────────────────────┘
(NOTE: There may be security-related changes not in this list. See )

Do you wish to deploy these changes (y/n)? y
NotifyTodoScheduleFullDayStack: deploying...
current credentials could not be used to assume 'arn:aws:iam::359163713835:role/cdk-hnb659fds-deploy-role-359163713835-eu-west-2', but are for the right account. Proceeding anyway.

 ❌  NotifyTodoScheduleFullDayStack failed: Error: NotifyTodoScheduleFullDayStack: SSM parameter /cdk-bootstrap/hnb659fds/version not found. Has the environment been bootstrapped? Please run 'cdk bootstrap' (see )
    at CloudFormationDeployments.validateBootstrapStackVersion (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/api/cloudformation-deployments.ts:323:13)
    at processTicksAndRejections (internal/process/task_queues.js:95:5)
    at CloudFormationDeployments.publishStackAssets (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/api/cloudformation-deployments.ts:298:7)
    at CloudFormationDeployments.deployStack (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/api/cloudformation-deployments.ts:202:5)
    at CdkToolkit.deploy (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/lib/cdk-toolkit.ts:194:24)
    at initCommandLine (/usr/local/lib/node_modules/cdk/node_modules/aws-cdk/bin/cdk.ts:267:9)
NotifyTodoScheduleFullDayStack: SSM parameter /cdk-bootstrap/hnb659fds/version not found. Has the environment been bootstrapped? Please run 'cdk bootstrap' (see )
9

2 Answers

This is extremely stupid mistake. I currently have 2 users in my machine setup and I was using the wrong one to deploy.

After performing aws configure with the credentials of the correct account I was able to deploy

See

And

The version assertion warning is not related to your bootstrap version being old, its asserting it is not old. Look at SSM parameters in us-east-1. Run with --debug

1
