I'm trying to draw a map of France using Cartopy, and I'm not very comfortable with it.
Searching for Python code here and there on the Internet, I built the following program:
import cartopy
import cartopy.feature as cfeature
import cartopy.crs as ccrs
import numpy as np
extent = [-4.25, 7.5, 42.25, 51]
central_lon = np.mean(extent[:2])
central_lat = np.mean(extent[2:])
plt.figure(figsize=(8, 8))
ax = plt.axes(projection=ccrs.AlbersEqualArea(central_lon, central_lat))
ax.set_extent(extent)
ax.gridlines()
rivers_50m = cfeature.NaturalEarthFeature('physical', 'rivers_lake_centerlines', '50m')
ax.add_feature(cartopy.feature.BORDERS, linestyle='-', alpha=1)
ax.add_feature(cartopy.feature.OCEAN,facecolor=("lightblue"))
ax.add_feature(cartopy.feature.LAND, edgecolor='black')
ax.add_feature(cartopy.feature.LAKES, edgecolor='black')
ax.add_feature(rivers_50m, facecolor='None', edgecolor='blue', linestyle=':')
ax.coastlines(resolution='10m', color='red', linestyle='-', alpha=1)
plt.show()

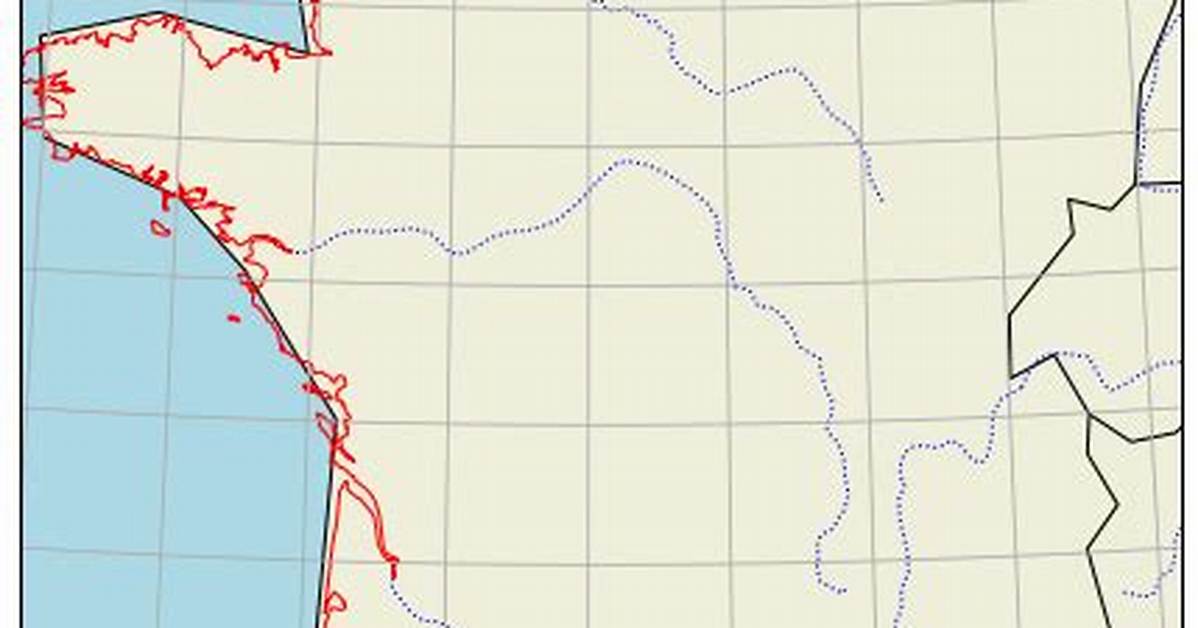

Which leads to the following map:
It's almost what I want, but... I don't understand why the raw borders (the dark broken lines) interfere with the coastlines (the wavy red lines) along the seafront, which is really ugly.
What would be the way to remedy this? (knowing that I would like to keep the terrestrial borders as they are).
1 Answer
Here is the runnable code. All the features that are plotted now has the same scale or resolution. The available scales are: 110m, 50m, 10m.
import matplotlib.pyplot as plt
import cartopy
import cartopy.feature as cfeature
import cartopy.crs as ccrs
import numpy as np
extent = [-4.25, 7.5, 42.25, 51]
central_lon = np.mean(extent[:2])
central_lat = np.mean(extent[2:])
plt.figure(figsize=(8, 8))
ax = plt.axes(projection=ccrs.AlbersEqualArea(central_lon, central_lat))
ax.set_extent(extent)
ax.gridlines()
resol = '50m' # use data at this scale
bodr = cartopy.feature.NaturalEarthFeature(category='cultural',
name='admin_0_boundary_lines_land', scale=resol, facecolor='none', alpha=0.7)
land = cartopy.feature.NaturalEarthFeature('physical', 'land', \
scale=resol, edgecolor='k', facecolor=cfeature.COLORS['land'])
ocean = cartopy.feature.NaturalEarthFeature('physical', 'ocean', \
scale=resol, edgecolor='none', facecolor=cfeature.COLORS['water'])
lakes = cartopy.feature.NaturalEarthFeature('physical', 'lakes', \
scale=resol, edgecolor='b', facecolor=cfeature.COLORS['water'])
rivers = cartopy.feature.NaturalEarthFeature('physical', 'rivers_lake_centerlines', \
scale=resol, edgecolor='b', facecolor='none')
ax.add_feature(land, facecolor='beige')
ax.add_feature(ocean, linewidth=0.2 )
ax.add_feature(lakes)
ax.add_feature(rivers, linewidth=0.5)
ax.add_feature(bodr, linestyle='--', edgecolor='k', alpha=1)
plt.show()
And the plot:
