How Tp4056 Module Works?

Elena Rostova • • 6 min read
How Tp4056 Module Works?

The TP4056 is a complete constant-current/constant-voltage linear charger for single cell lithium-ion batteries. ... The TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage

float voltage
Float voltage is the voltage at which a battery is maintained after being fully charged to maintain that capacity by compensating for self-discharge of the battery. ... The appropriate float voltage varies significantly with the chemistry and construction of the battery, and ambient temperature.
› wiki › Float_voltage
is reached.

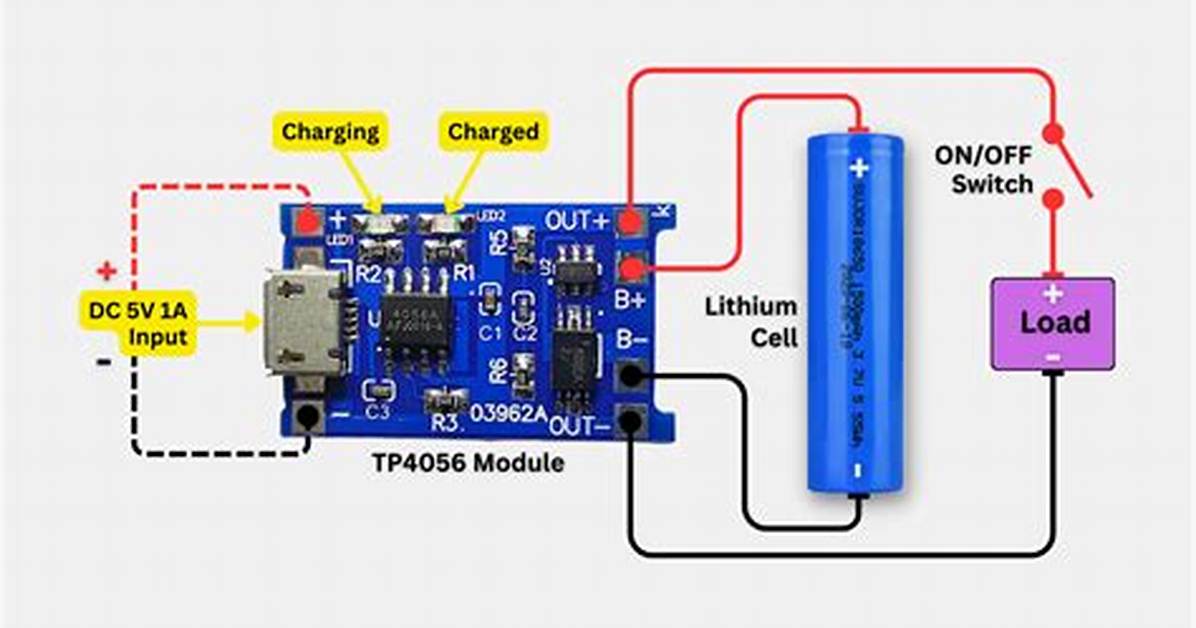

What is TP4056 module?

TP4056 with current protection is a compact module, perfect for 18650 Li-Ion batteries that do not have their own protection circuit. ... The module is basically made for charging rechargeable lithium batteries using the constant current/constant voltage charging method.

What is output voltage of TP4056?

Output voltage: DC 4.2V. 4 chips, with a reasonable turn-off voltage, the charging circuit for each chip set 750mA, total 3A. Input connected two 5A Schottky diodes, 5V standard voltage input chip heat ideal (3.8V battery test). Comes with over-temperature protection, short circuit protection.
