What Is Draught System?

Maya Lin-Takahashi • • 7 min read
What Is Draught System?

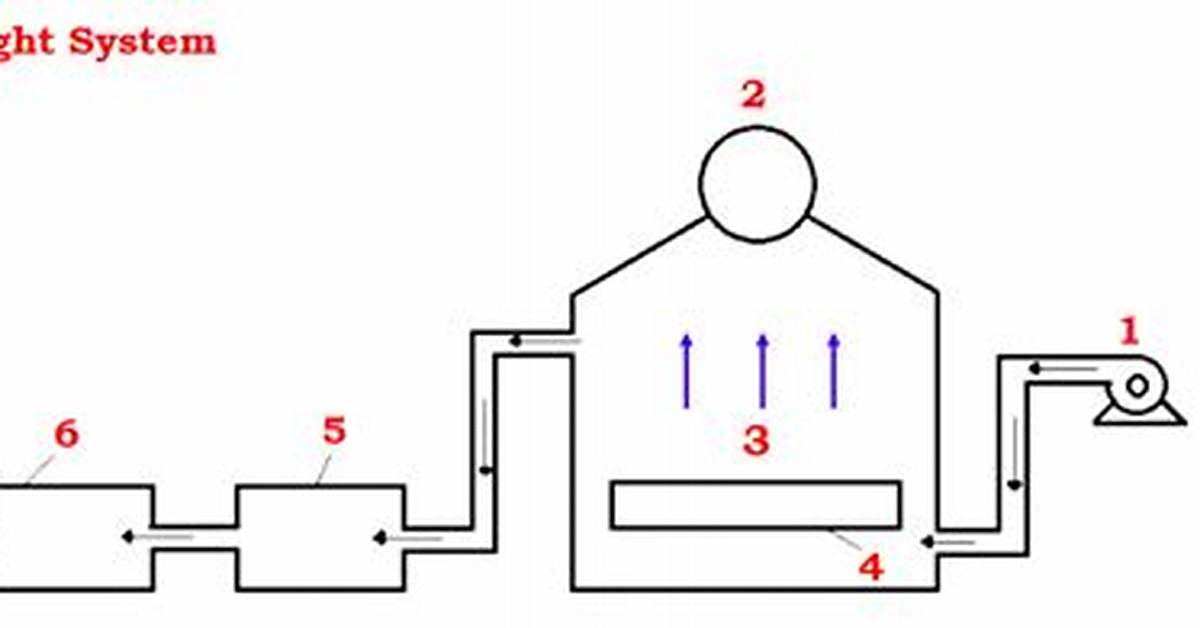

7.1 INTRODUCTION TO DRAUGHT SYSTEM
Boiler draught is the pressure difference required to maintain constant flow of air into the furnace and to discharge the flue gases to the atmosphere through a chimney. Thus, boiler draught is one of the most essential systems of a thermal plant
thermal plant
Typical thermal efficiency for utility-scale electrical generators is around 37% for coal and oil-fired plants, and 56 – 60% (LEV) for combined-cycle gas-fired plants. Plants designed to achieve peak efficiency while operating at capacity will be less efficient when operating off-design (i.e. temperatures too low.)
› wiki › Fossil_fuel_power_station
.

What is the function of Draught system?

Draught may be defined as the small pressure difference which causes a flow of gas to take place. In case of a boiler the function of the draught is to force air to the fire and through a boiler furnace and flue, and to discharge the products of combustion to atmosphere via stack or chimney.

What is Draught and type of Draught?

Draught is defined as the difference between absolute gas pressure at any point in a gas flow passage and the ambient (same elevation) atmospheric pressure. Draught is plus if Patm < Pgas and it is minus Patm > Pgas. Draught is achieved by small pressure difference which causes the flow of air or gas to take place.
