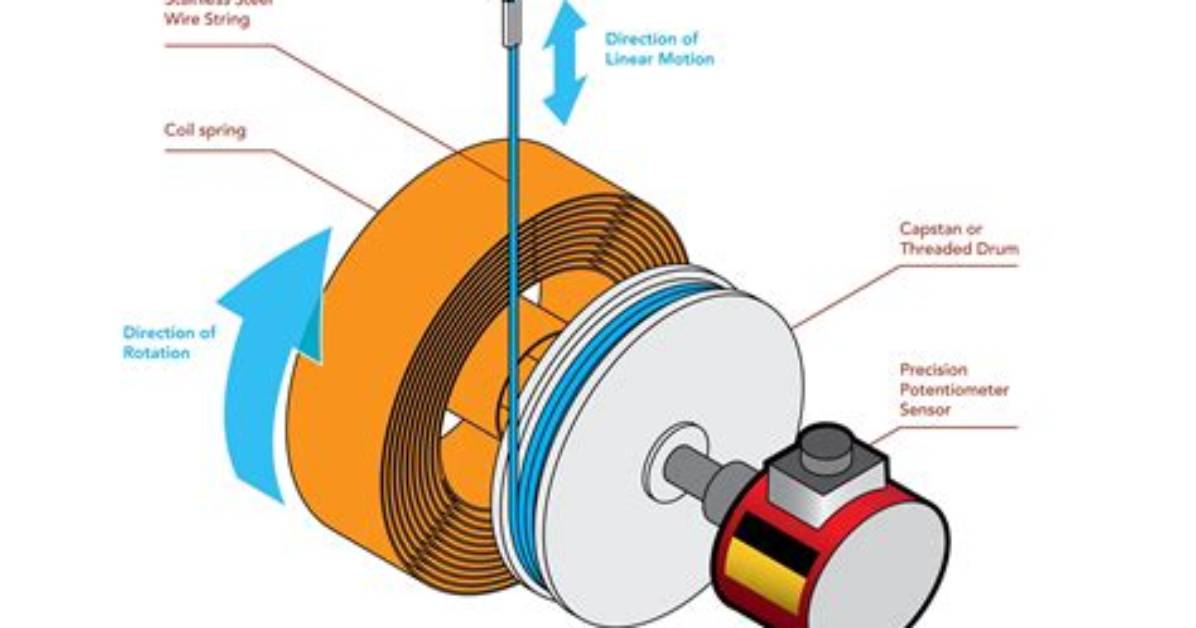

A position transducer typically consists of two fundamental parts. One part remains fixed in position while the other part moves with the mechanism whose displacement is being measured. The exact nature, and therefore the size, of the fixed and moving portions depend on the sensing technology being used.

How does a linear position transducer work?

A Linear Transducer is a type of position sensor. ... Linear transducers measure linear displacement or movement along a single axis in any direction. They do this by converting the movement into an electrical signal which is proportional to the displacement so that it can be processed by various devices.

How does a resistive position transducer work?

The principle of the Resistive Position Transducer is that the physical variable under measurement causes a resistance change in the sensing element. ... One type of displacement transducer uses a resistive element with a sliding contact or wiper linked to the object being monitored or measured.
