Does 208V Single Phase Exist?

David Miller • • 6 min read
Does 208V Single Phase Exist?

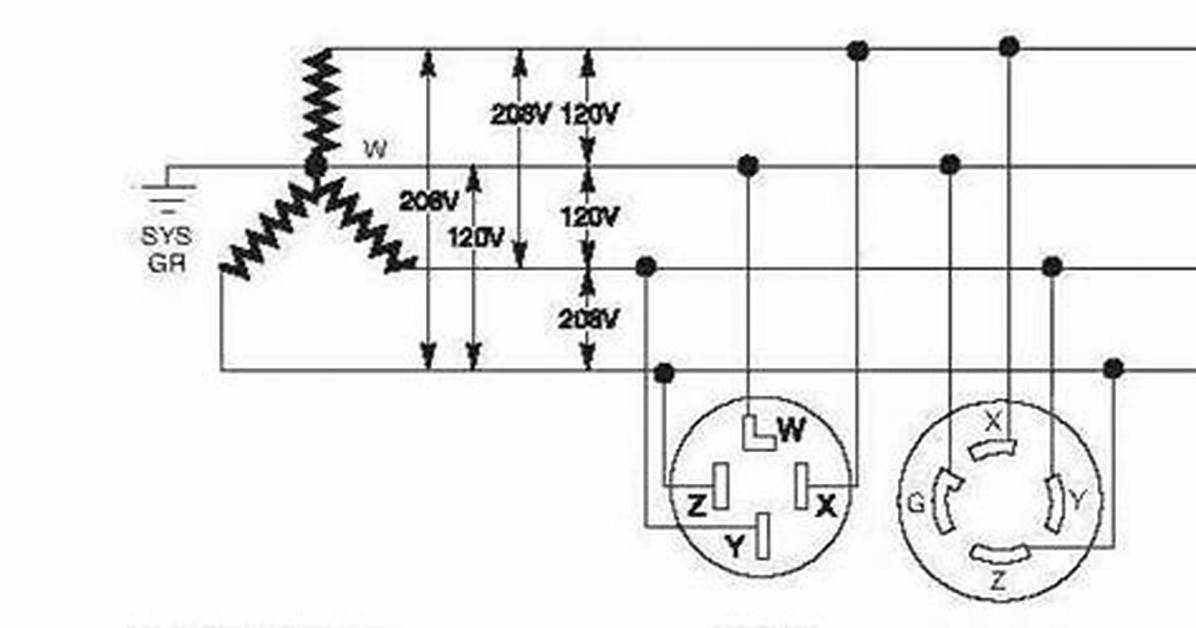

120/208V Single Phase Power
120/208V single phase is derived from 208V three phase power. If viewed on an oscilloscope, the three voltage waveforms on the three “hot” conductors all peak at different times: each one is 120 degrees behind the next.

Is 208 volt single phase or 3 phase?

In the USA, 208V single phase and three phase voltage is one of the standard voltage levels used for commercial applications. It can be derived from Wye-Wye (Star to Star), Delta-Wye or High leg delta configuration of primary and secondary windings of the transformer.

Are 208 volts always 3 phase?

208 volts is Line-to-Line Voltage. This three Phase voltage is frequently used in small businesses. ... It is 208 volts /1.732 which is 120 volts. The power is brought is as 208 volts 3 Phase and then the Line-to-Neutral Voltage will be 120 Volts.
