In Third Angle Projection Method?

David Miller • • 6 min read
In Third Angle Projection Method?

An Alternative method

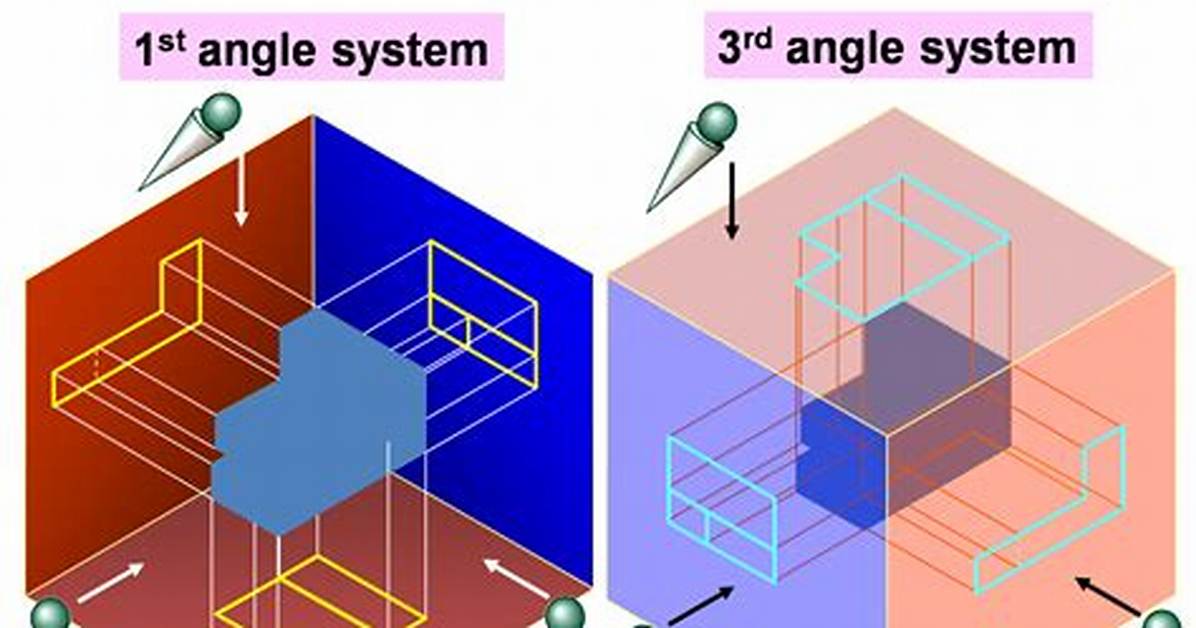

3rd Angle project is where the 3D object is seen to be in the 3rd quadrant. It is positioned below and behind the viewing planes, the planes are transparent, and each view is pulled onto the plane closest to it. The front plane of projection is seen to be between the observer and the object.

What is the 3rd angle projection symbol?

The third angle symbol is shown in Figure 1. It is represented by the circular top view of the cone with the right view of the cone to the right of it. In the right-side view, the narrow end of the cone is pointed towards the top view.

Which statement is correct for the third angle projection method?

Explanation: In the third angle projection the top view of the object is above the front view and then come the side views to the left and right of front view and then back view which can either be kept on ends of side views but as standard notation it is placed on right side of right side view.
