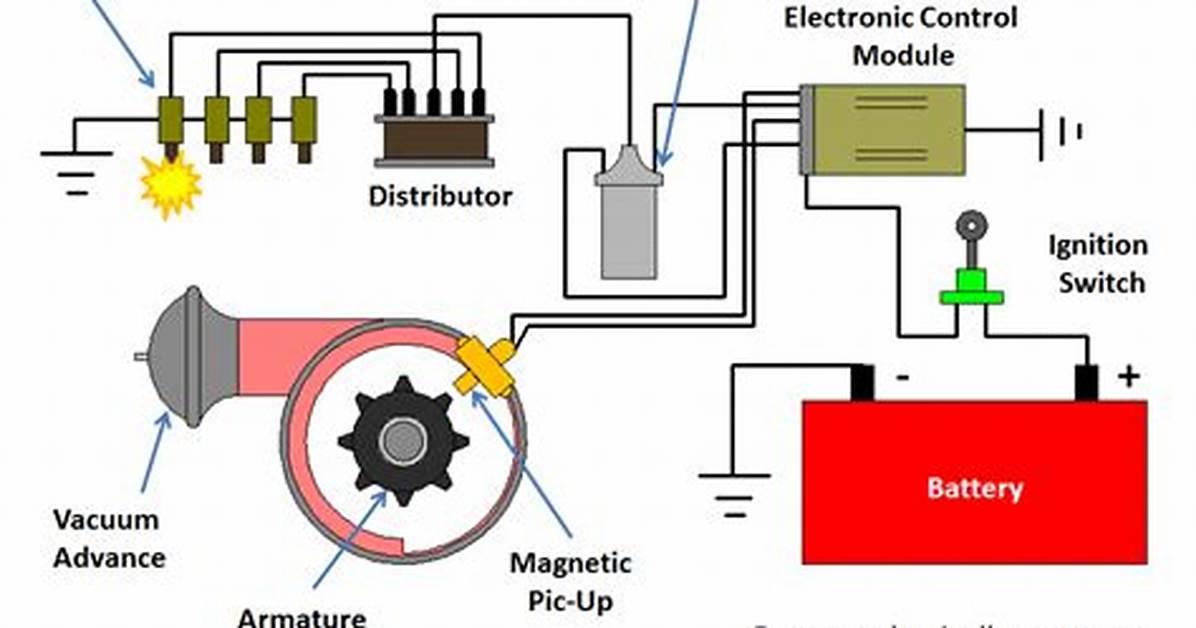

Once the ignition switch is prompted by key or the push of a button, it activates the voltage from the battery to the ignition coil to produce the engine spark. The engine spark from the coil or coils is directed to the spark plugs to ignite the fuel to make the vehicle run.

How does the ignition system work?

When the ignition key is turned on, a low voltage current from the battery flows through the primary windings of the ignition coil, through the breaker points and back to the battery. This current flow causes a magnetic field to form around the coil. ... This causes the magnetic field to collapse around the coil.

What are the 3 types of ignition systems?

There are three basic types of automotive ignition systems: distributor-based, distributor-less, and coil-on-plug (COP). Early ignition systems used fully mechanical distributors to deliver the spark at the right time.
