Etching is used to reveal the microstructure of the metal through selective chemical attack. It also removes the thin, highly deformed layer introduced during grinding and polishing. In alloys with more than one phase, etching creates contrast between different regions through differences in topography or reflectivity.

Why do semiconductors need etching?

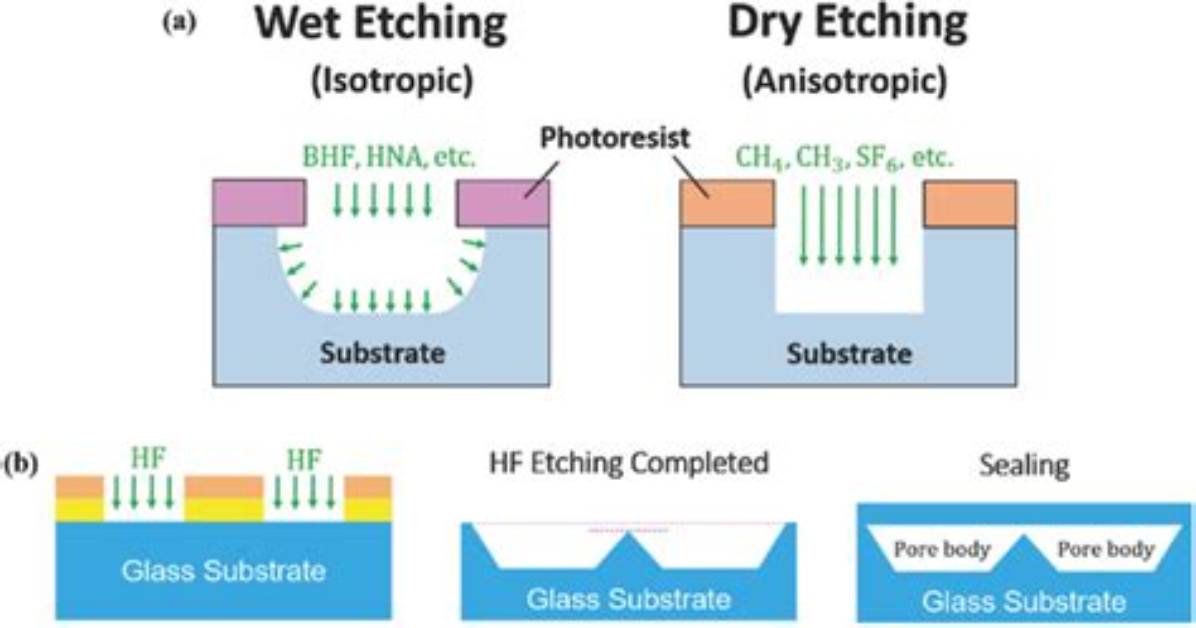

Semiconductor Etching. Figure 1. ... In semiconductor device fabrication, etching refers to any technology that will selectively remove material from a thin film on a substrate (with or without prior structures on its surface) and by this removal create a pattern of that material on the substrate.

What benefits are derived from etching?

Advantage of Chemical Etching #2: High Precision Machining

Unlike other traditional machining methods such as stamping and laser cutting, chemical etching does not affect the hardness, grain structure, or ductility of a metal. This means: Precise, uniform parts. Easy production of fine details and complex geometries.
