When using Solidworks, the exported models should be in OBJ or DAE format. When using other Solidworks formats, a conversion must be done prior to an upload on Augment, to match Augment requirements.
How do I export solidworks to OBJ?
Exporting Files

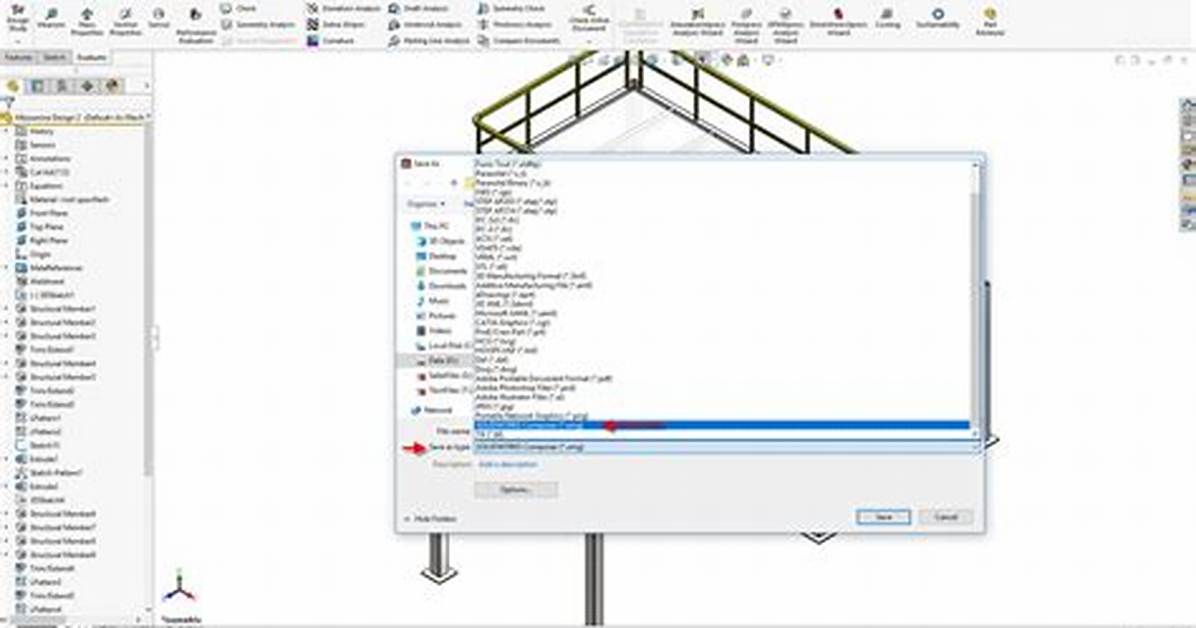

- Click File > Save As.
- Select a file format in Save as type: ScanTo3D (*. xyz) ScanTo3D (*. wrl). Click Options to set export options. ScanTo3D (*. stl). Click Options to set export options. ScanTo3D (*. 3ds) ScanTo3D (*. obj) ...
- Browse to the desired location and click Save.
How do I create an OBJ file in Solidworks?
how to convert solidworks file to obj ?
- open solidworks file and save as STL.
- select and open STL file.
- click ok.
- click file and Export Mesh as.
- 1-choose OBJ. 2- save.
