Combinational logic is used in computer circuits to perform Boolean algebra on input signals and on stored data. ... Practical design of combinational logic systems may require consideration of the finite time required for practical logical elements to react to changes in their inputs.
What are the advantages of combinational logic?

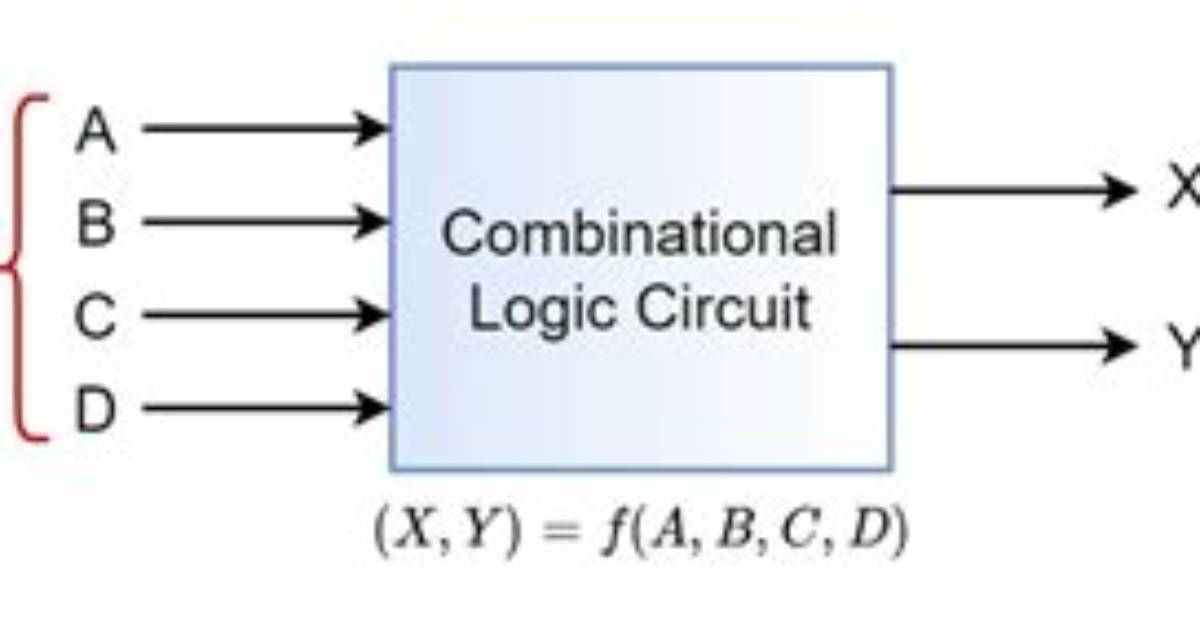

Combinational Circuit –
- In this output depends only upon present input.
- Speed is fast.
- It is designed easy.
- There is no feedback between input and output.
- This is time independent.
- Elementary building blocks: Logic gates.
- Used for arithmetic as well as boolean operations.
Why do we need combinational logic circuits?
One of the most common uses of combinational logic is in Multiplexer and De-multiplexer type circuits. Here, multiple inputs or outputs are connected to a common signal line and logic gates are used to decode an address to select a single data input or output switch.
