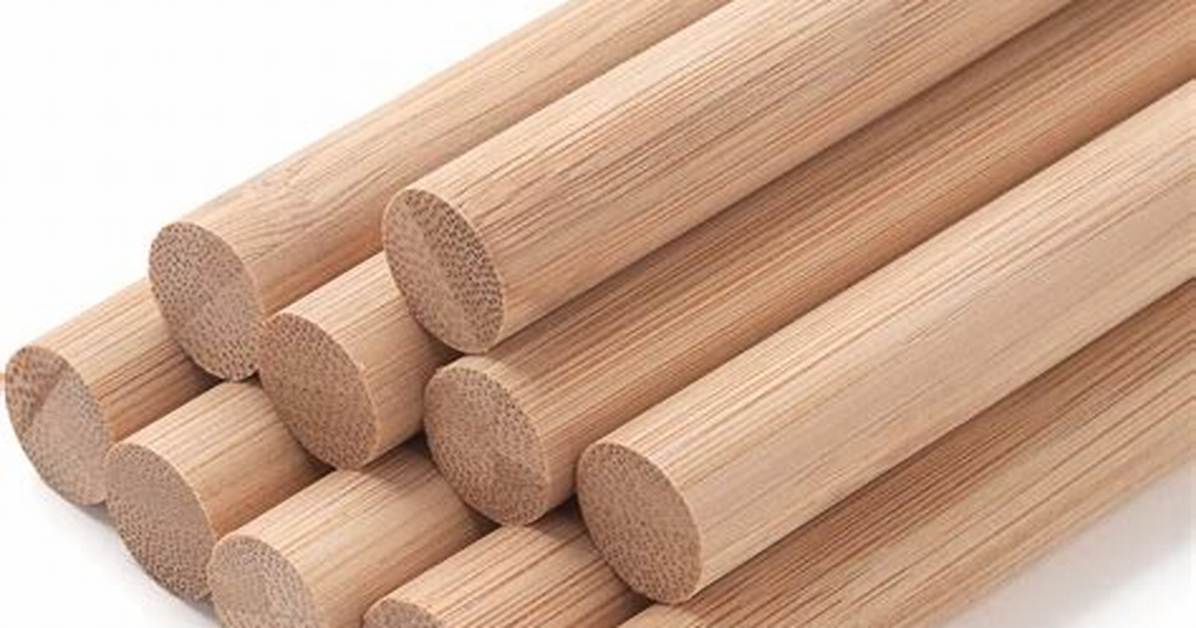

Dowels are commonly used as structural reinforcements in cabinet making and in numerous other applications, including: Furniture shelf supports. Moveable game pieces (i.e. pegs) Hangers for items such as clothing, key rings, and tools.

What does dowel mean?

Definition of dowel

(Entry 1 of 2) 1 : a pin fitting into a hole in an abutting piece to prevent motion or slipping also : a round rod or stick used especially for cutting up into dowels. 2 : a piece of wood driven into a wall so that other pieces can be nailed to it.

What is construction dowels?

Dowels are placed in transversal contraction or construction joints of concrete pavements and help to transfer loading between individual slabs. Dowels allow horizontal movement of slabs during contraction in the time period after laying the concrete pavement and at temperature changes.

What size do dowels come in?

Dowel Rods: Size Ranges and Tolerances

Length: 3, 4, 5, and 6 foot are commonly stocked. Longer lengths, up to 16′ available on special order. Species: Birch, Oak, Maple, Poplar are the most readily available.

Where are dowel bars used?

Dowel bars are commonly used in jointed plain concrete pavements (JPCP) as a load transfer device across joints, especially for pavements with heavy traffic.

Are dowel joints strong?

It helps to ensure a neat finish. There is no need for screws, nails or other equipment. Dowel joints are the strongest type of joints when it comes to woodworking, especially when using multiple rows of dowels. Dowels help to create strong joints that are easy to make at home.

Where does the word dowel come from?

The word dowel is an old English word equivalent of “doule” which simply means a part of a wheel. It can also be traced its history in the Middle German language “dovel” which meant to plug.

What is a dowel in concrete?

A dowel bar is a short steel bar often installed in concrete slabs. The use of dowel bars in concreting projects provides for mechanical connection without restricting horizontal movement. Dowels are strong enough to reduce joint deflection and stress to add to the effectiveness of concrete slabs.

What is a slab dowel?

Dowel bars are short steel bars that are installed in concrete slabs to provide a mechanical connection that doesn’t restrict horizontal joint movement. They are designed to reduce joint deflection and stress in the approach and leave slab by increasing load transfer efficiency.

What is the minimum dowel spacing?

The cages perform no function other than initial alignment assistance. Dowel bars are typically 32 to 38 mm (1.25 to 1.5 inches) in diameter, 460 mm (18 inches) long and spaced 305 mm (12 inches) apart.

What is the most common dowel size?

The most common sizes of dowels are 1/4”, 5/16”, 3/8”, 7/16”, as well as 1/2”. Having this large variety of sizes can be confusing when you are trying to figure out what you need. That being said, for most jobs the 1/4” and 3/8” diameters of dowels are sufficient.

How strong is a 1 dowel?

Your 1″ dowel would be approximately 1/3 the strength of the 1.5″ dowels. Their weakest dowel had a safe load of 3,200# with an ultimate failure load of 5,000 – 6,000#. Therefore your safe load will probably be more than 1,000# and almost twice that before it would actually fail.

How are dowel bars placed?

Dowel bars are typically placed at the mid-depth of the slab and should be parallel to the pavement surface and parallel to the direction of travel. The center of the dowel bar should be below the joint. If dowel placement deviates from the desired position, it is said to be misaligned.

Should I dowel concrete?

When a joint is created, some level of load transfer can be achieved by aggregate interlock between the two concrete slabs at the joint. However, higher traffic loads (especially trucks) increase the stresses on the slab edges beyond this level, so dowel bars are recommended to provide load transfer.

How long is a dowel?

Dowel rods usually come in widths between 3.175mm (1/8″) and 50.8mm (2″), but they can be as wide as 304.8mm (12″). They are usually between 304.8mm (12″) and 2.4m (9431/64) long.
