Rigid pipes are usually made of plain concrete, reinforced concrete, vitrified clay, cast iron and asbestos cement. Rigid pipes have sufficient strength to support loads even if no side support, such as backfill, is provided.
What is rigid pipe used for?

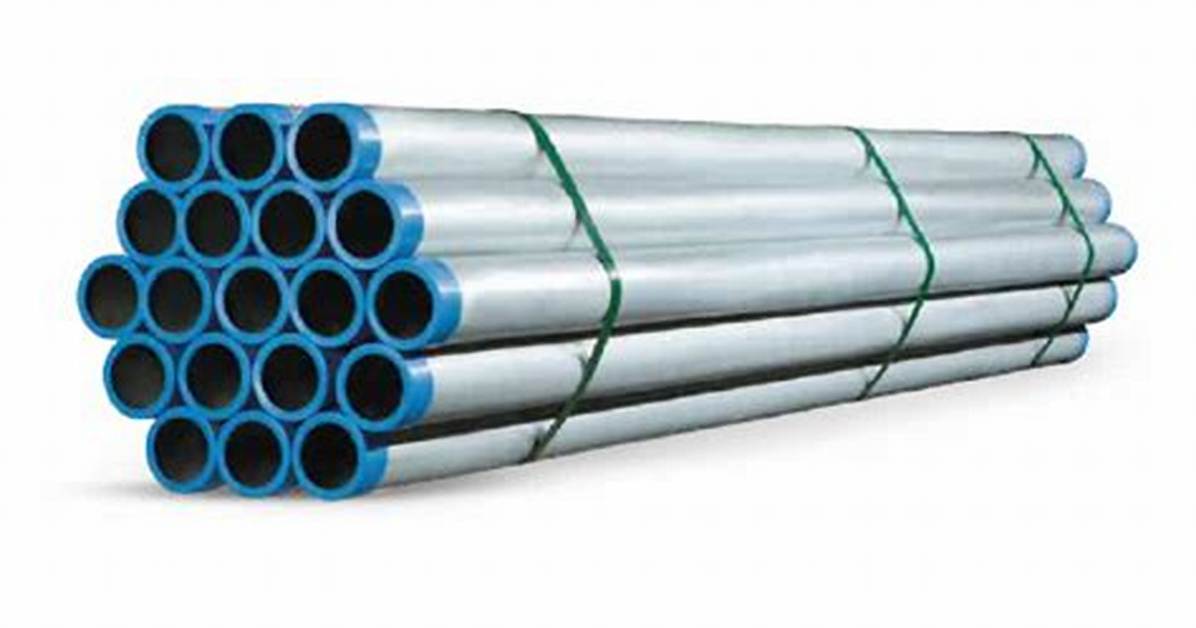

Rigid metal conduit, or RMC, is heavy-duty galvanized steel tubing that is installed with threaded fittings. It is typically used outdoors to provide protection from damage and can also provide structural support for electrical cables, panels, and other equipment.
What’s the difference between rigid and EMT pipe?
Rigid metal conduit (RMC) is a thick-walled threaded tubing, usually made of coated steel, stainless steel or aluminum. Galvanized rigid conduit (GRC) is galvanized steel tubing, with a tubing wall that is thick enough to allow it to be threaded. EMT is generally made of coated steel, though it may be aluminum.
What is the difference between rigid and flexible pipe?
Flexible pipes such as PVC, and HDPE are defined by their ability to yield under loading without fracturing. Rigid pipes such as concrete, clay, and ductile iron pipes are limited in their ability to yield under load without sustaining damage.
Which PVC pipe is rigid?
Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.
What is rigid plastic pipe?
Material Name: Rigid PVC (Polyvinyl Chloride)
Rigid PVC, is a material that provides a good balance of stiffness, impact resistance, UV stability, and inherent UL flame performance. It’s most commonly used in construction for pipe and in profile applications such as doors and windows and refrigeration.
What type of conduit should be used outdoors?
Nonmetallic conduit is typically made from PVC and is a good choice for outdoor residential applications.
What is semi rigid pipe?
This type of plastic tubing is strong, lightweight and has excellent abrasion resistance, while resisting crushing and cracking. Semi-rigid plastic tubing is perfect for fluid transfer applications and has excellent resistance to flexural fatigue, tube vibration and movement.
Is rigid conduit the same as galvanized pipe?
Galvanized pipe can be manufactured to almost any diameter, while rigid metal conduit is available in diameters between 1/2 inch and 6 inches. Conduits are typically designed to 10-foot lengths. Galvanized piping can be machined to feature threads or couplings on the ends.
Is EMT or rigid thicker?
The way you connect different portions of EMT is to use clamps. You then use screws to make sure the clamps are secure. The walls of rigid electrical conduit, or RMC, are a great deal thicker. As you might expect, RMC is a lot more rugged than EMT.
Is conduit and EMT the same thing?
Electrical metallic tubing (EMT) is made from coated steel or aluminum and is a more economical and thinner-walled option than other conduit. This conduit type doesn’t offer the same protection as rigid metal conduit but is lighter and can be paired with conduit fittings, eliminating the need for threading.
What is rigid galvanized steel conduit?
Galvanized Rigid Steel Conduit (GRC, RMC) is the heaviest weight and thickest wall of electrical conduits. Allied Tube & Conduit®’s Galvanized Rigid Steel Conduit is hot-dip galvanized for corrosion resistance and is considered non-combustible.
Which pipe is best for French drain?
One of the most common pipe materials used to create a French drain is plastic because of its durability. There are two frequently chosen pipe variations: corrugated and PVC. Both are lightweight, but corrugated pipe can be flexible, while PVC is stronger and more rigid.
How flexible is rigid PVC?
The Amount of Plasticiser Contained in Different PVC Compounds. The most notable difference is this: flexible PVC compounds have plasticiser added to them, while rigid ones have little to none. This plasticizer makes the PVC resin more flexible, which means it’s soft and supple in comparison.
Is PVC considered flexible?
When most people think of PVC, they think of the stiff white and gray pipes they use in their home plumbing systems. Yet PVC is quite a versatile material, and it can be flexible as well as solid.
Which is better schedule 40 or 80?
Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch). This makes it ideal for industrial and chemical applications.
Which is stronger PVC or ABS?
ABS is considerably stronger than PVC when exposed to frigid weather, but is also weakened by exposure to sunlight. So much so that many southern states exclusively use PVC.
What’s the difference between PVC and Schedule 40?
Schedule 40 PVC is usually white in color and has thinner walls, thus can handle less pressure than it’s counterpart. Schedule 40 PVC pipe works best for low water pressure applications. By contrast, Schedule 80 PVC is usually gray in color and has thicker walls; therefore, it can handle higher water pressures.
