Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations. Also Known As: #2 AWG Copper wire, #2 AWG THWN, building wire, hook up wire, conduit wire, lighting wire, nylon copper wire, construction cable, residential wire, 2 gauge wire etc
How many amps can 2 AWG wire handle?
Well, at standard temperature of 75°C, the 2 gauge wire has a 115 amps ampacity. That means that any 2 gauge copper wire can, at that temperature, handle up to 115 amps safely.
What is bigger 2 AWG or 4 AWG?
The bigger the AWG number, the smaller the physical size of the wire. An AWG of 40 is the smallest and 0000 is the largest. For every 6 gauge decrease, the wire diameter doubles and for every 3 gauge decrease, the sectional cross area doubles.
Which wire is best for home wiring?
If what you need the wire for is the wiring of your home, copper wires will be most appropriate for you. Copper is more conductive than aluminum but is also heavier and more expensive.

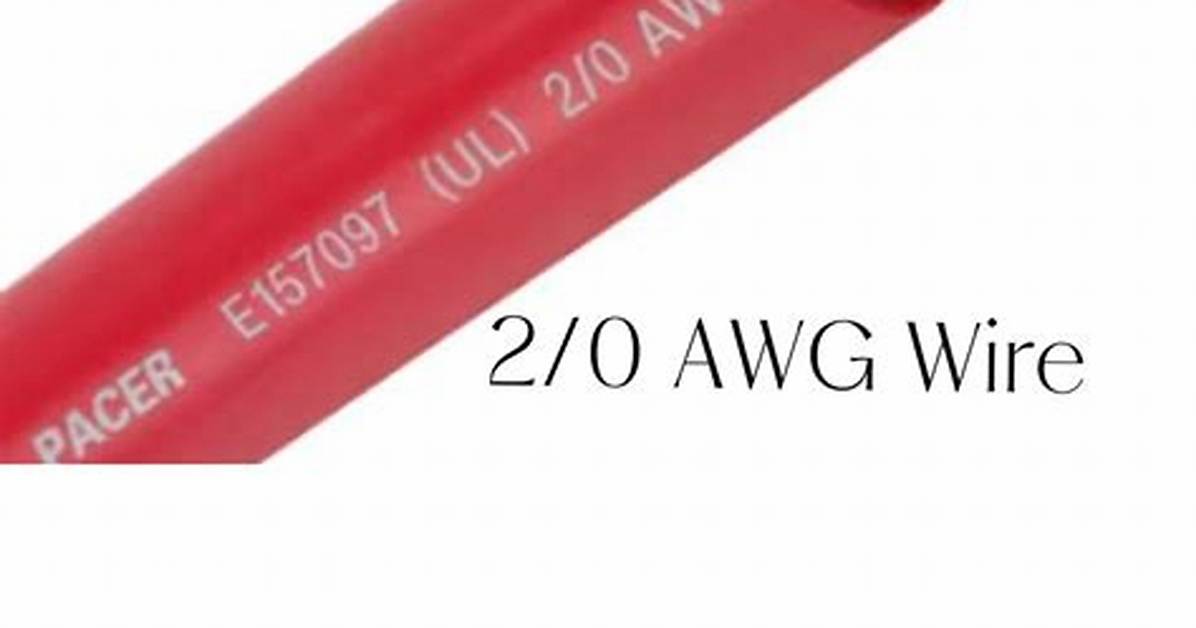

What is the difference between 2 0 and 2 AWG?
2 AWG will handle around 94 Amps, while 2/0 AWG will handle around 190 Amps. The length of the wire must be considered as well as the % voltage drop in order for this to be true.
Whats bigger 1 0 or 2 0 wire?
1/0 battery cable is 0 AWG, whereas 2/0 battery cable is 00 AWG. The more the number of zeros indicating a cable’s American Wire Gauge measurement, the bigger the cable. So, it is accurate to conclude that a 2/0 is bigger than a 1/0.
Is gauge the same as AWG?
AWG is the wire standard (ie – the way it’s made). The wire gauge simply refers to the sizing of the wire (the thickness). 12 AWG is equivelent in size to 12 gauge wire, but “12 gauge” wire can be a variety of things whereas “12 AWG” is 12 gauge wire made according to the AWG standard.
How do I know what gauge wire to use?
To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.
What do gauges mean in wire?
The gauge of a wire refers to its thickness. Each gauge is represented by a number, with smaller numbers representing thicker wire gauges and higher numbers signifying thinner wires.
What wire size is bigger 2 or 4?
A 2 gauge wire is thicker than a 4 gauge wire. In simple terms, the thicker the cable, the higher the current it can transfer. The American Wire Gauge (AWG) is used to describe the thickness of wires.
Is a bigger gauge wire better?
Also, the larger the cross-section, the greater the amount of current (amperage) the wire can safely carry before overheating. A wire with a smaller gauge (larger diameter) can carry more power than one with a larger gauge. In general, a lower AWG number is better than higher AWG.
What size of copper wire do you need for a 200 amp service?
Installation of 200 amp electrical service needs a #2/0 AWG copper wire or #4/0 AWG for aluminum or copper-clad wire inside a minimum of 1.5 inches, schedule 40 or 80 PVC conduit for underground service. However, 2 or 2.5 inches is recommended if running 3 wires in the same conduit.
