Considering the shape of a stud, these are categorized into three basic types:
Fully Threaded Stud.Tap-End Stud.Double-End Stud.
What is a wooden stud wall?
A stud wall comprises a frame of timber or metal studs secured to the floor, ceiling and walls, which is then covered with plasterboard. When you’ve decorated your new wall, it’ll look like an integral part of your house.
What is a 2×4 stud?
Those are called “studs” and are referenced by the width and thickness of the end of the board. “2×4” is referring to a board that has a nominal size of 2 inches by 4 inches. The nominal size is not the actual size. A 2-by-4 is approximately 1-1/2 inches thick by 3-1/2 inches wide.
What are the different types of studs?
These include:

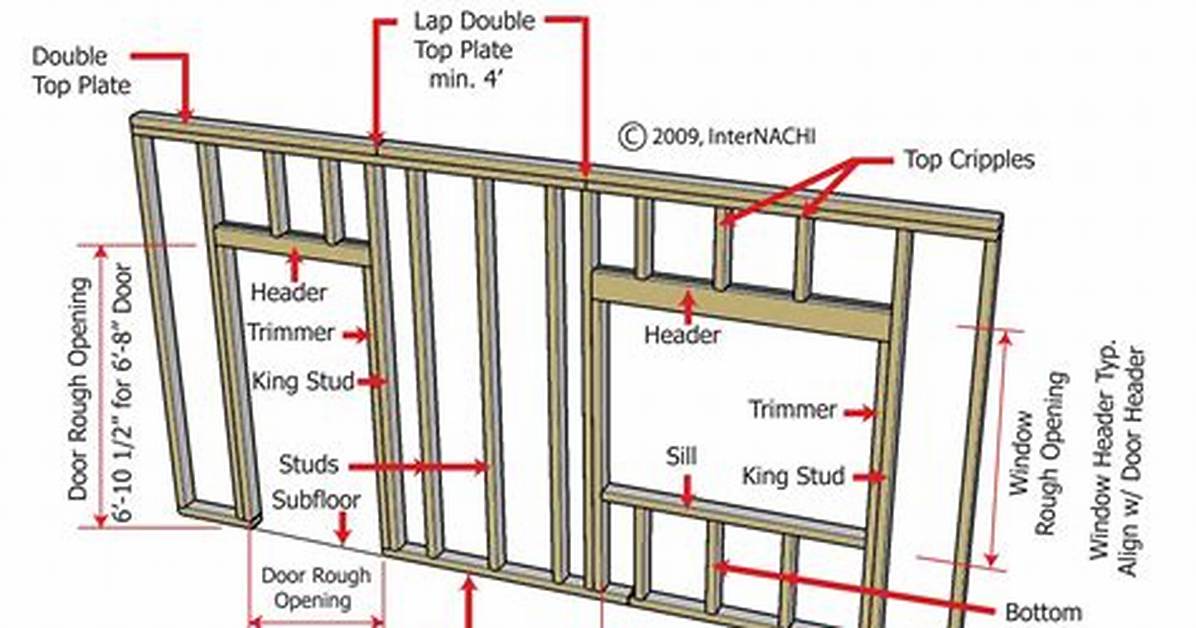

King stud: On either side of a window or door, running from the bottom to top plate.Trimmer or jack: On either side of a window or door, running from the bottom plate to the underside of a lintel or header.Cripple stud: Either above or below a framed opening.
What is a common stud?
Common studs are vertical members which transfer loads vertically to bottom plates. They are usually evenly spaced to suit loads, lining and cladding fixing. Spacings are generally 450 or 600 mm, depending on the roof cladding.
What are wooden studs made of?
This timber is milled from softwood trees (spruce, fir and pine) that are sawn and machine-planed to standard dimensions (2×4″, 2×6″, 2×8″, etc.).
What are studs in walls made of?
In the United States and Canada, studs are traditionally made of wood, usually 2×4 or 2×6 by name; however, these historical dimensions have been reduced but still carry the name of “two by four” and “two by six”.
How much weight can a stud hold?
A screw in a stud can hold between 80 and 100 pounds. Be sure to distribute the weight across as many as you can. The easiest way to increase the amount of weight a screw in a stud can hold is to simply double up.
Can you screw into a stud wall?
Whether fastening a framed picture, mirror, shelf, or curtain rod to a wall, it’s always best to screw or nail directly into a wall stud. Unfortunately, studs are seldom, if ever, positioned exactly where you need them, but that’s okay.
How do I know if I have metal or wood studs?
If you think your home might have steel studs, you can check by running a magnet along a wall. While nails and screws in wood studs will attract a magnet, steel studs will have a stronger attraction along the entire height of the stud. An electronic wall stud finder can also detect metal in a wall.
What’s the difference between stud and lumber?
Lumber is a generic term for wood that has been milled (cut) to various sizes, such as 2×4 (meaning 2 inches thick by 4 inches wide), 2×6, 4x 12 etc. When you go to the lumber store, you will purchase, say 20 – 2×6 x 8 feet long. These are called studs.
What type of 2×4 is strongest?
Spruce it Up
It has the highest strength-to-weight ratio of all the available types of two-by-fours. It’s readily available at most home supply stores or lumberyards and is one of the straightest two-by-fours available.
How much does a 2x4x8 cost?
The estimating cost of a dimensional lumber board 2x4x8 is between $4.10 to $5.17. Also, some other prices of lumber you should keep in mind include 2x3x8, 2x6x8 which are $2.87 and $8.82, respectively.
How thick is a stud?
Studs are vertical boards — they are generally 2 x 4’s, although they actually measure 1 1/2 inches thick and 3 1/2 wide — and are installed at intervals inside a wall to strengthen it and support the wallboard, paneling or plaster.
What is studs in construction?
In construction, a stud is a board that extends from the top to the bottom of a wall and offers support. They come in one piece and are 2x4s or 2x6s.
Do all walls have studs?
Can a wall not have studs? The answer is no—a wall must have studs to ensure structural support. However, there are some variations in how a wall can be framed and where you will locate studs.
