The MEGR-230 Regulator is for low pressure, vapor propane applications (about 0.4 PSI, 11 inch WC) Replacement regulator for use with gas grills, camp lights, stock tank heaters, campers and more using refillable od disposable propane gas tanks.
Do I need a high or low pressure propane regulator?
Outdoor gas appliances such as high heat cast iron burners require the use of a high pressure regulator because they need more volumes of gas than a low pressure regulator can deliver. High pressure regulators regulate the output pressure from 1 psi to as high as 60 psi.

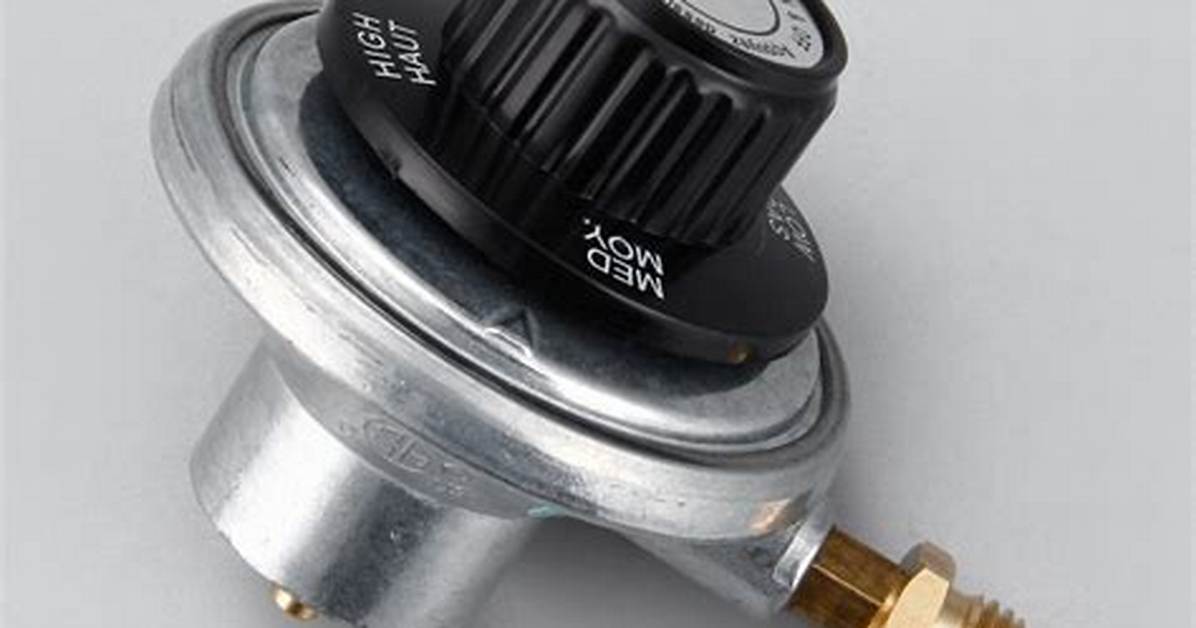

Can you adjust a gas regulator?
Pull off the regulator cap. There is a spring and an adjusting screw underneath. Usually turning the screw clockwise increases outlet pressure but the direction of adjustment is marked on the regulator. Turn the screw a little to make a small pressure increase adjustment as seen on the pressure gauge.
What should propane pressure be?
Generally, propane pressure should be between 100 and 200 psi ensures that the liquid propane gas remains in a liquid state. Normally, the pressure inside a propane tank fluctuates slightly based on the outside temperature. For example, a standard 20-pound propane tank at 70 degrees will have 145 psi internal pressure.
What regulator do I need for 100 lb propane tank?
Expert Reply: For your 100 lb propane tank and 30,000 btu ventless heater you should use the Camco Horizontal 2-Stage Propane Regulator w/ P.O.L # CAM59333 to maintain constant pressure. The inlet on this regulator is a 1/4″ NPT connector and the outlet is a 3/8″ NPT connector.
Are all propane regulators the same?
Are All Gas Grill Regulators the Same? Every propane gas grill uses an LP regulator, but not all regulators are created equal. Though the purpose is the same, different types of setups require different types of regulators. The type of regulator a grill needs is based on the specific propane application requirements.
How much PSI is in a 100lb propane tank?
At 100°F, a 100 lb propane tank has 172 PSIG of pressure.
How many PSI is a high pressure propane regulator?
They are Preset High Pressure Regulators (at 10 psi or 20 psi) or Adjustable High Pressure Propane Regulators (at 0-20 psi for the norm, or at 0-30 psi or 0-60 psi for circumstances where higher gas volumes are required).
What is a 2 stage propane regulator?
2-Stage Regulator – Regulates Pressure from propane cylinder to appliance. The Dual-Stage Propane Tank Regulator regulates pressure from propane cylinder to appliance. This quick connection combines a high pressure first-stage regulator and low pressure second stage regulator in 1-unit.
How do you increase gas pressure?
Three Ways to Increase the Pressure of a Gas
Increase the amount of gas. This is represented by the “n” in the equation. Increase the temperature of the gas. This is represented by “T” in the equation. Decrease the volume of the gas. This is the “V” in the equation.
What should the gas pressure be in my home?
A common operating pressure for natural gas appliances is around 7 inches of water column (WC) or re-stating this in equivalent measure, that’s 14.9 millibars or 1743 Pascals or Pa, or about 0.25 psi (pounds per square inch) or about 4 ounces of pressure per square inch.
How do you reduce gas pressure?
At this time, you can start the furnace and make your adjustments by turning the gas pressure adjustment screw clockwise to increase the pressure or counterclockwise to decrease the pressure. If you have a two-stage furnace, you will have to set gas pressure on both the low-fire and high-fire operation.
Can a gas regulator increase pressure?
The first-stage regulator will encounter an increase in outlet pressure as the gas cylinder empties and inlet pressure decreases. This increase will be fed into the second stage and result in a succeeding decrease on the outlet side of the second-stage regulator.
