In a fractional distillation, a mixture of liquids is boiled and the resulting vapors travel up a glass tube called a “fractionating column” and separate. The fractionating column is placed between the flask containing the mixture and the “Y” adaptor and improves the separation between the liquids being distilled.
What is fractionating column Class 9?
The fractionating column allows the vapours of the mixture to cool, condense and evaporate again by Raoult’s law. The fractionating column allows the continuous condensation and vaporization of the mixture and enriches the separation of a component.
Where is fractionating column?
The fractionating column is fitted in a distillation apparatus between the distillation flask and the water condenser.
What does fractionating column mean in chemistry?
A fractionating column or fractional column is an essential item used in the distillation of liquid mixtures to separate the mixture into its component parts, or fractions, based on the differences in volatilities.
How do distillation columns work?
The distillation column is made up of a series of stacked plates. A liquid feed containing the mixture of two or more liquids enters the column at one or more points. The liquid flows over the plates, and vapor bubbles up through the liquid via holes in the plates.
What is fractional distillation Class 11?
Fractional distillation is a process of separating two or more miscible liquids by distillation. The distillate is collected in fractions, which boil at different temperatures. The principle behind this technique is the difference in boiling points of the liquids in the mixture.
What do you mean by fractional distillation Class 8?
Fractional distillation is the separation of a mixture into its component parts, or fractions. Chemical compounds are separated by heating them to a temperature at which one or more fractions of the mixture will vaporize. It uses distillation to fractionate.
What do you mean by fractional distillation explain?
fractional distillation. noun. the process of separating the constituents of a liquid mixture by heating it and condensing separately the components according to their different boiling points.
How do you remember a fractionating column?
One way to remember the names of the fractions is: Lazy Penguins Keep Drinking Hot Beer.
How many types of fractionating columns are there?
There are two types of fractionating columns: (1) tray column, where trays of various designs are used to hold up the liquid to provide better contact between vapor and liquid, hence better separation; and (2) packed column, where instead of trays, “packings” are used to enhance contact between vapor and liquid phases.

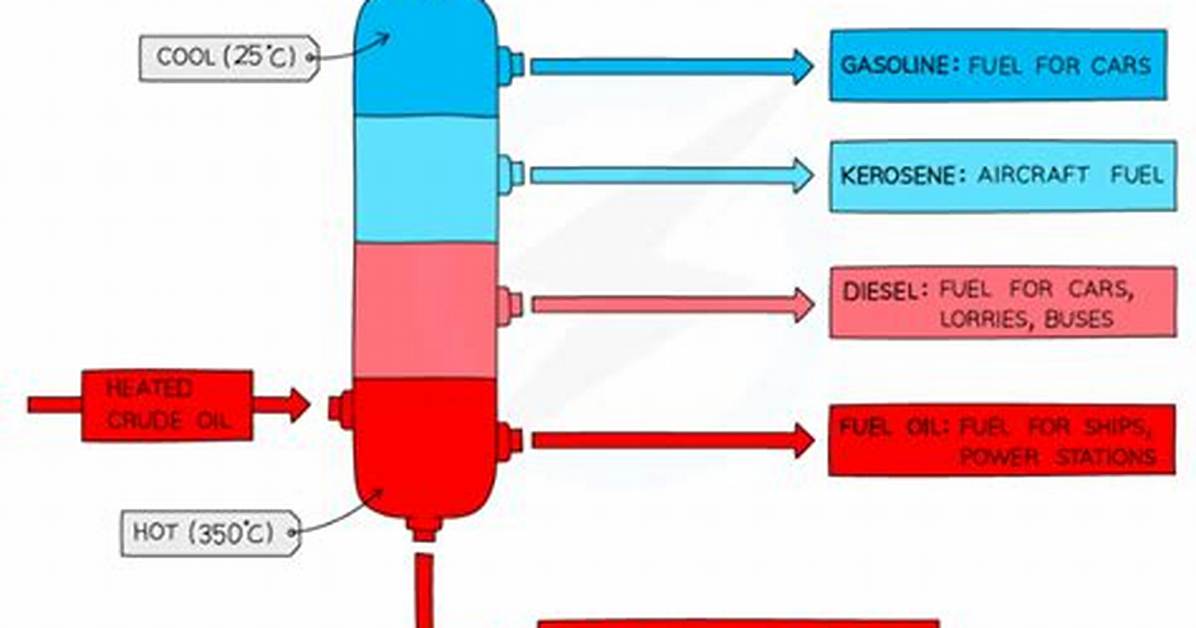

How are fractions separated in a fractionating column?
Fractional distillation separates a mixture into a number of different parts, called fractions. A tall fractionating column is fitted above the mixture, with several condensers coming off at different heights. The column is hot at the bottom and cool at the top.
What is column in oil and gas?
distillation column in the Oil and Gas Industry
A distillation column is a tall vessel in which crude oil is heated and separated into its components. The first process in the refining of crude oil is fractional distillation which is carried out in a tall steel tower known as a distillation column.
Why is the fractionating column filled with glass beads?
A simple fractionating colunrn is a tube packed with glass beads. The beads provide surface for the vapours to cool and condense repeatedly. Principle of Fractional Distillation: In a mixture of two or more miscible liquids, the separation of various liquids depends on their boilibg points.
Why is a packed column used in fractional distillation?
Packed distillation columns allow gas to flow over the packing placed within the distillation head, while liquids tend to wet the surface of the packing material itself. This, in turn, allows mass transfer to take place.
Why are distillation columns important?
A distillation column is an essential item used in the distillation of liquid mixtures to separate the mixture into its component parts, or fractions, based on the differences in volatilities. Fractionating columns are used in small scale laboratory distillations as well as large scale industrial distillations.
What is rectification column?
Rectification column is designed for separation of liquid mixtures, components of which feature different boiling points. The rectification column refers to a vertical cylinder with contact devices mounted inside.
How does the distillation process work?
Distillation Process
The process of distillation begins with heating a liquid to boiling point. The liquid evaporates, forming a vapor. The vapor is then cooled, usually by passing it through pipes or tubes at a lower temperature. The cooled vapor then condenses, forming a distillate.
