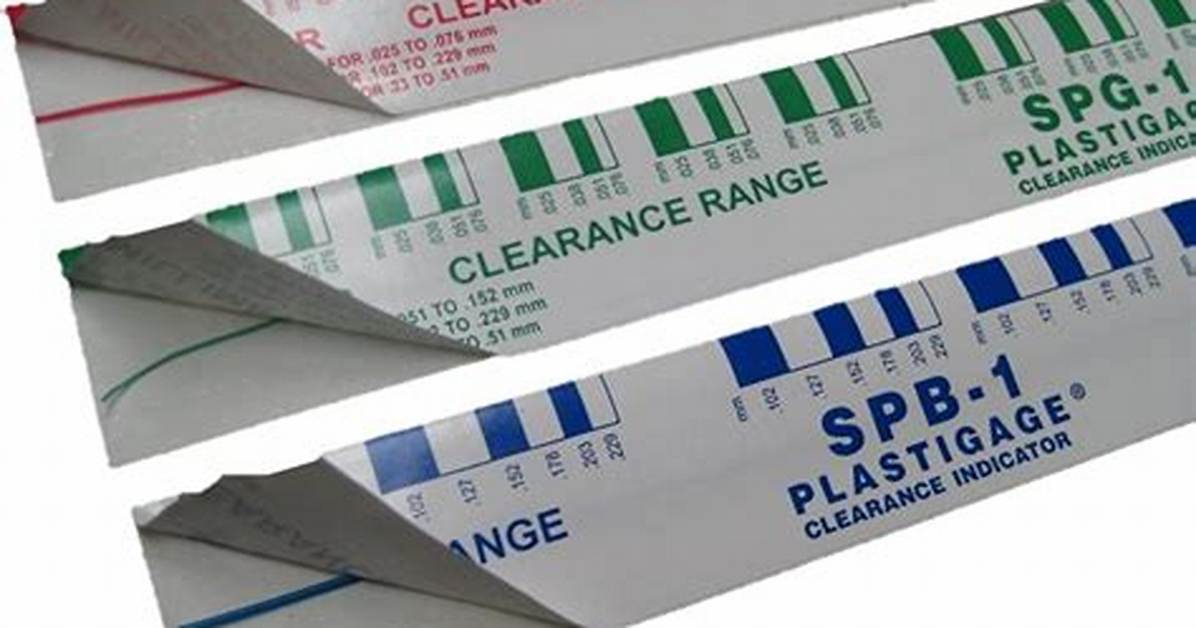

How do you remove Plastigage?
Ideally you should remove the PLASTIGAUGE stripe with a clean oily cloth or industrial de-greasing solvent, but users may be assured that any PLASTIGAUGE left behind is oil soluble and cannot harm the engine in any way.
How accurate is Plastigage?
Well, Plastigauge will get you in the ballpark but isn’t as precise as using “proper” measuring tools. On paper, a . 0002 to . 0004-inch difference doesn’t sound like much, but that is a 9- to 18-percent difference in accuracy.
How do I check my main bearing and clearance Rod?
Measuring the inside diameter of a main or rod bearing will require a dial bore gauge. The best ones are accurate down to 0.0001-inch and generally come as a set that offers a measurement range from 2 inches to 4 inches inside diameter (id). With these two tools you can quickly determine the clearances in any engine.
How do you measure crankshaft oil clearance?
Subtract the crank spec from the journal spec, and then subtract the bearing spec from that result. This figure is the clearance. Bearing clearance depends on the engine and the intended use. Stock street engines usually run tighter bearing clearances, while high-performance engines run a little loose.
How much is bearing clearance?
The traditional bearing clearance standard for street and most performance applications has been 0.001-inch of clearance for every one inch of crank journal diameter. So a typical small-block Chevy 2.200-inch rod journal would call for a bearing clearance of 0.0022-inch.
Do you use oil with Plastigage?
A modern engine is a little better off, as the insert is a little harder then babbitt, but you can still improve the Plastigages use, by using oil. To remove the used Plastigage from Shaft, and Bearings, Lacquer Thinner, will take care of it fast.
When was Plastigage invented?
Plastigauge ® was designed and developed in the U.K. during the 1950s. Over sixty years later, it continues to provide a fast, simple and effective method for the measurement of clearance between fitted surfaces and is used throughout the world.
Is it OK to lay a crankshaft on its side?
“Absolutely never lay a crankshaft on its side, not even for a few minutes. Crankshafts should always be stored standing straight up or hanging from a storage fixture. Laying a crank on its side will cause permanent damage”.
Can you leave Plastigauge on?
CutawayAl
I just leave it on there and let it disolve with the oil No harm done!! Just change the oil and filter when the motor is broken in Careful measuring can tell you more than Plastigage, but Plastigage is way better than nothing.
What tool do you use to measure crankshaft runout?
Feuling Crankshaft Runout Measuring Tool 9015.
What does undersize bearing mean?
If you find you need more clearance, you can purchase an undersized bearing. This means the bearing shell is thinner, which creates 0.001 more clearance than a standard bearing. An oversized bearing is the opposite. It’s thicker and takes away 0.001 of clearance.
