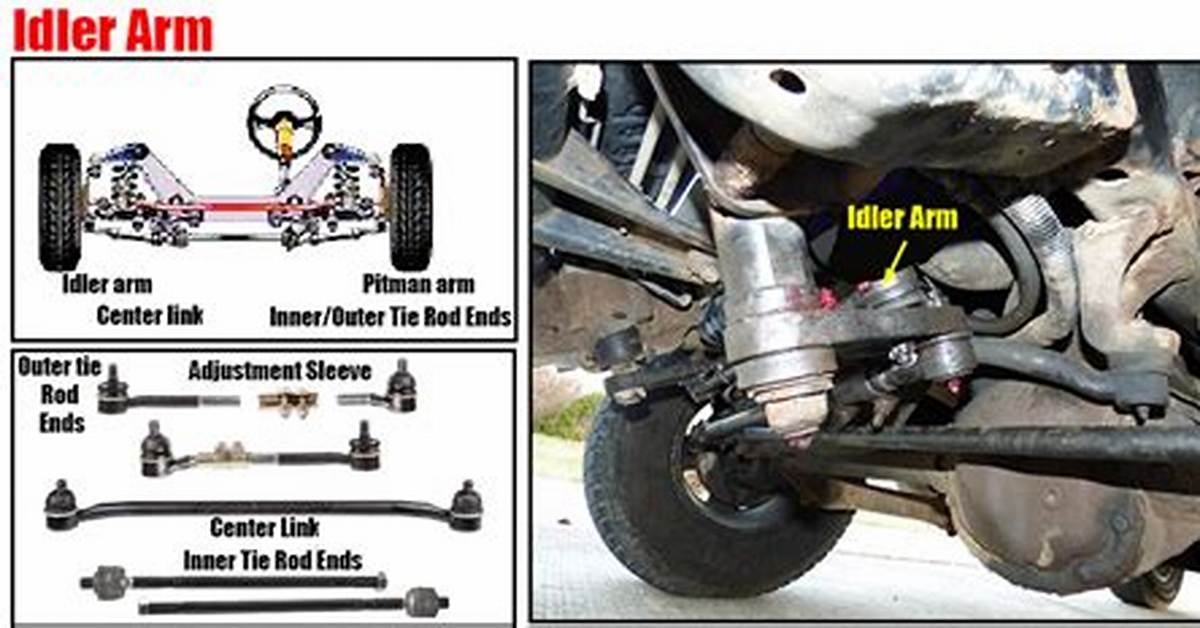

The idler arm assembly provides pivoting support for the steering linkage. It is comprised of a rod that pivots on a bracket bolted to the frame of the vehicle on one end and supports a ball socket on the other end.
How much does it cost to replace an idler arm?
The average cost for idler arm replacement is between $190 and $319. Labor costs are estimated between $71 and $90 while parts are priced between $119 and $230. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.
How many idler arms are on a car?
The idler arm consists of a bracket, an arm that connects the bracket to the centre link of the steering linkage, and an internal pivot bearing. A few vehicles use two idler arms.
Is an idler arm the same as a pitman arm?
Generally, an idler arm is attached between the opposite side of the center link from the Pitman arm and the vehicle’s frame to hold the center link at the proper height. Idler arms are generally more vulnerable to wear than Pitman arms because of the pivot function built into them.
How do I adjust my idler arm?
To adjust parallelism, raise the vehicle on a frame-contact hoist. Then, depending on the vehicle, either loosen the idler arm mounting bolts and reposition the arm in the slots on the frame, or turn a threaded bushing at the base of the idler arm mounting bracket to change idler arm position.
Can idler arms cause vibration?
Can idler arms cause vibration? Generally, worn steering parts such as idler arms, pitman arms and center links result in shimmy. Wheels that aren’t properly balanced can cause shimmy or shake.
Are tie rods expensive?
The price of tie rods, parts and labor can vary from vehicle to vehicle. The average car can probably get a tie rod replaced in about an hour labor plus about $80 for the part, so about $170. Add an alignment and the total price may be closer to $260.
What is the purpose of a pitman arm?
The pitman arm attaches to the steering gear shaft and acts as a lever, converting torque from the steering gear to mechanical force for movement of the steering linkage.
What is a steering arm?
Definition of steering arm
: an arm for transmitting the turning force from the steering gear to the drag link especially of an automotive vehicle.
What is tie rod end?
Tie rod ends are a part of the steering system. Tie rods connect the spindle, on which your front wheel is mounted on one end, to the steering gear mechanism on the other end.
What are the 2 main types of steering boxes?
There are two main types of steering gears used for most modern vehicles: the rack and pinion steering gear and the recirculating ball steering gear.
What is an idler box?
Almost all Roadsters need a rebuilt idler box. This is the unit opposite the steering box on the passenger side of left hand drive cars. Same location for the right hand drive, but on the opposite side! The idler box is made up of a housing, a shaft and two bushings.
