What are B+ trees used for?
Thus to store data in disks, we make use of B-tree and B+ tree. B-tree search is slightly slower as the data is stored in internal nodes as well as leaf nodes in it. B+ tree is an extension of B-tree and the data here is stored in leaf nodes only. Due to this factor, searching in a B+ tree is faster and efficient.
What is the difference between B and B+ tree?
In the B tree, all the keys and records are stored in both internal as well as leaf nodes. In the B+ tree, keys are the indexes stored in the internal nodes and records are stored in the leaf nodes. In B tree, keys cannot be repeatedly stored, which means that there is no duplication of keys or records.
Where are B-trees used?
A B-tree is a tree data structure that keeps data sorted and allows searches, insertions, and deletions in logarithmic amortized time. Unlike self-balancing binary search trees, it is optimized for systems that read and write large blocks of data. It is most commonly used in database and file systems.
What is the order p of a B+ tree?
A B/B+ tree with order p has maximum p pointers and hence maximum p children. A B/B+ tree with order p has minimum ceil(p/2) pointers and hence minimum ceil(p/2) children. A B/B+ tree with order p has maximum (p – 1) and minimum ceil(p/2) – 1 keys.
What are the features of B+ tree?
Properties of a B+ Tree
All leaves are at the same level.The root has at least two children.Each node except root can have a maximum of m children and at least m /2 children.Each node can contain a maximum of m – 1 keys and a minimum of ⌈m/2⌉ – 1 keys.
Is B+ tree balanced?
the lengths of the paths from the root to all leaf nodes are all equal. the lengths of the paths from the root to all leaf nodes differ from each other by at most 1. the number of children of any two non-leaf sibling nodes differ by at most 1.
What is the order of B-tree?
The order of a B-tree is that maximum. A Binary Search Tree, for example, has an order of 2. The degree of a node is the number of children it has. So every node of a B-tree has a degree greater than or equal to zero and less than or equal to the order of the B-tree.
What are the disadvantages of B+ tree?
B+-Tree Index Files
face of insertions and deletions. Reorganization of entire file is not required to maintain performance. (Minor) disadvantage of B+-trees: • Extra insertion and deletion overhead, space overhead.
What are the disadvantages of B-tree over B+ tree?
The principal advantage of B+ trees over B trees is they allow you to pack in more pointers to other nodes by removing pointers to data, thus increasing the fanout and potentially decreasing the depth of the tree. The disadvantage is that there are no early outs when you might have found a match in an internal node.
What are the advantages of B+ tree over B-tree?
Advantages of B+ Tree
Height of the tree remains balanced and less as compare to B tree. We can access the data stored in a B+ tree sequentially as well as directly. Keys are used for indexing. Faster search queries as the data is stored only on the leaf nodes.
What are the disadvantages of B-tree?
The major drawback of B-tree is the difficulty of traversing the keys sequentially. B-tree:-A B-tree is a self-balancing tree data structure that keeps data sorted and allows searches, sequential access, insertions, and deletions in log arithmetic time.
In what conditions will you prefer a B+ tree over a B tree?
we prefer breath growth as the number of levels will be less and the time search time will be less due to less number of levels. now we prffer b+ over b because . b+ grows more breath wise than b tree. what it means is it can holds more data in internal nodes.
Are duplicates allowed in B-tree?
Allowing Duplicate Records. BTree databases can contain duplicate records. One record is considered to be a duplicate of another when both records use keys that compare as equal to one another. By default, keys are compared using a lexicographical comparison, with shorter keys collating higher than longer keys.

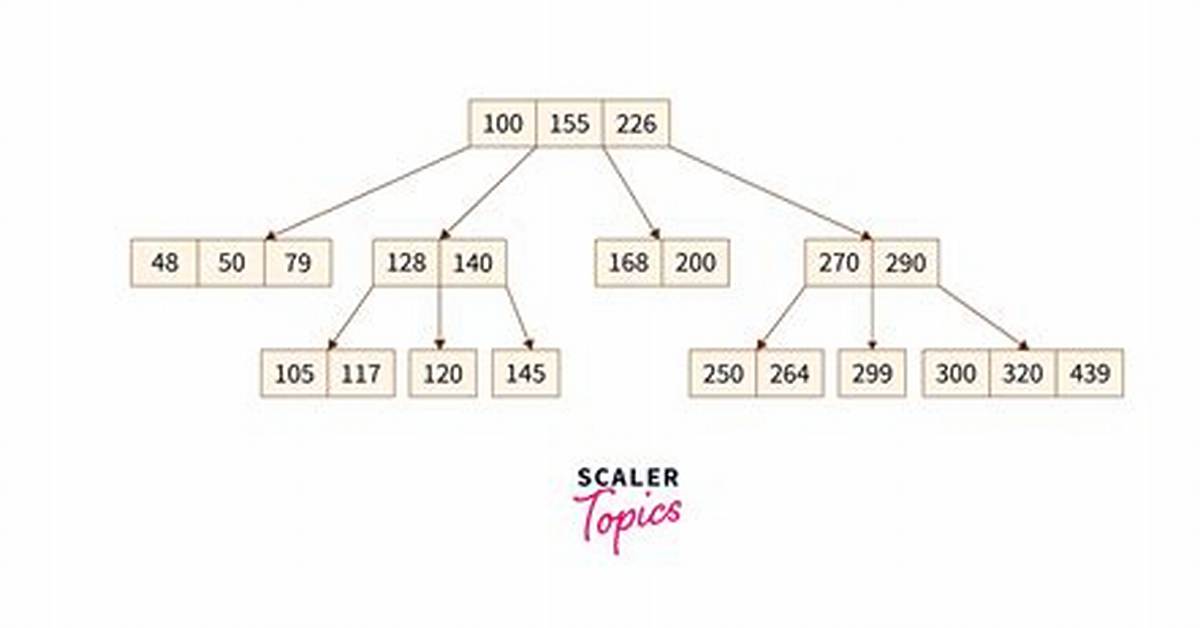

What is B-tree example?
Following is an example of B-Tree of minimum order 5. Note that in practical B-Trees, the value of the minimum order is much more than 5. We can see in the above diagram that all the leaf nodes are at the same level and all non-leaf have no empty sub-tree and have keys one less than the number of their children.
Why are B-trees always balanced?
In computer science, a B-tree is a self-balancing tree data structure that maintains sorted data and allows searches, sequential access, insertions, and deletions in logarithmic time. The B-tree generalizes the binary search tree, allowing for nodes with more than two children.
What are B-tree keys?
Each internal node of a B-tree will contain a number of keys. The keys act as separation values which divide its subtrees. So, yes, that would be the definition of “keys” for B-trees.
