What are fink truss used for?
Fink design trusses are used today for pedestrian bridges and as roof trusses in building construction in an inverted (upside down) form where the lower chord is present and a central upward projecting vertical member and attached diagonals provide the bases for roofing.
How far can a fink truss span?

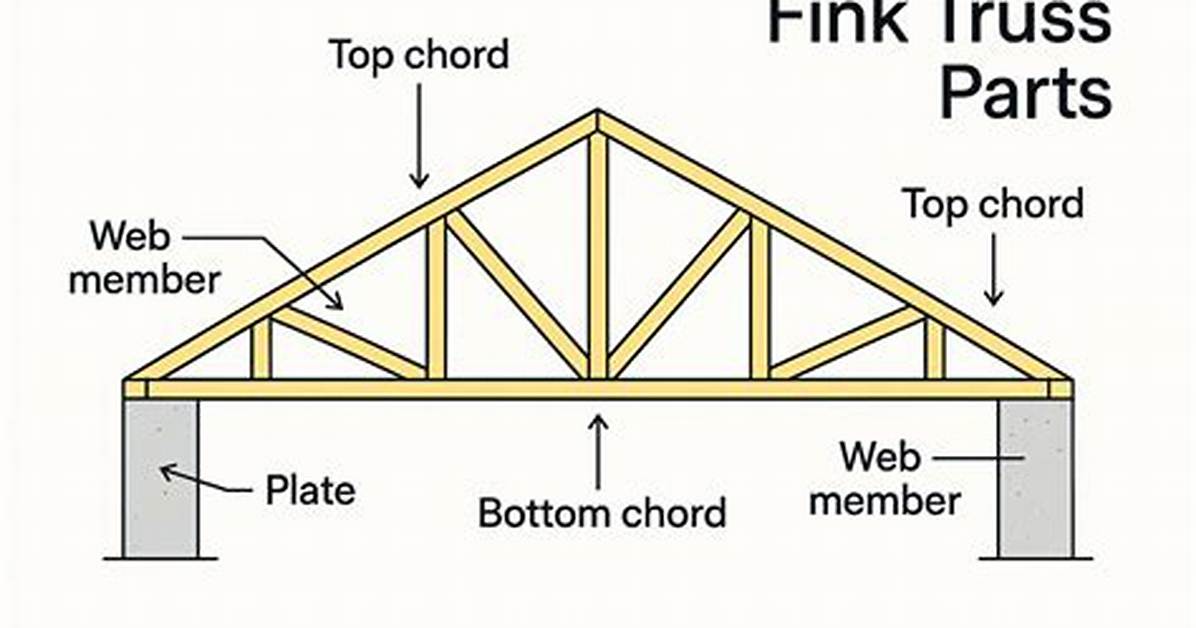

Fink Truss
The truss has an internal web configuration shaped like a W to give the ultimate strength to material ratio for spans from around 5m to around 9m in span which covers the majority of domestic dwelling being built today.
How much weight can a fink truss hold?
Loading the Truss:
So it must carry 2600 lbs, evenly distributed along its length which results in the forces shown at joints A, G, F, E, and D. The entire truss then must carry 3200 lbs and thus the walls at A and D must each push up at 1600 lbs.
Does a fink truss need support?
Generally, you don’t need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.
What is the strongest roof truss design?
There is no “strongest” truss, but rather, one that is most appropriate for a specific application. There are four basic types of truss design: dropped chord, raised chord, parallel chord and scissors. Dropped chord uses a beam on two load-bearing walls and can restrict interior space.
What is compound fink truss?
A triangular truss where the web member take the form of ‘W’ is called as compound fink truss. The web member form a ‘W’ to provide a high strength structure with good load carrying capacity.
How far can a roof truss span without support?
A roof truss can span up to 80′ without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40′ are the most common in today’s homes.
Do houses with roof trusses need load bearing walls?
Most exterior walls are load bearing, but not all. It all comes down to where the roof trusses/rafters and floor joists/trusses are bearing. Long skinny homes may only have two exterior load bearing walls. To learn more about this, click here.
Can you use 2×4 for roof trusses?
Trusses only use 2×4 lumber and are constructed using a “web” of 2x4s for strength. Rafters simply rely on a center ridge beam and the outside walls for support.
How far can 2×4 Rafter span?
A 2×4 can span a maximum of 6′ 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7′ 3” spaced at 16”, and 6′ 4” when spaced 24” apart. Due to the small spans of 2x4s, they often are not used in horizontal load-bearing capacities.
How many trusses do I need for 40 ft?
Truss count = ((roof length * 12) / 24) + 1
For example, if your roof is 40-feet long, it will need a total of 20 trusses.
Can I drill holes in roof trusses?
A truss cannot be drilled without authorization of a licensed professional engineer or the truss manufacturer. ”Truss members shall not be cut, notched, drilled, spliced or otherwise altered in any way without the approval of a registered design professional,” according to the International Residential Code (IRC R802.
Can you hang drywall on trusses?
When attaching drywall to trusses 24 inches OC, you can attach the drywall directly to the truss using thicker, 5/8-inch drywall or specially formulated drywall that resists sagging. Home improvement centers carry different brands; ask for “sag-resistant drywall.”
Can you store stuff in a truss attic?
ANSWER: Your attic is not suitable for storage because the bottom member of a typical truss (referred to as a cord) is not designed to support a storage load, not because of truss movement. The cord is only designed for a dead load of 10 pounds per square foot.
What is a Howe truss bridge?
A Howe truss is a truss bridge consisting of chords, verticals, and diagonals whose vertical members are in tension and whose diagonal members are in compression. The Howe truss was invented by William Howe in 1840, and was widely used as a bridge in the mid to late 1800s.
Do houses with trusses have interior load bearing walls?
Identifying load-bearing walls in the attic
In modern homes, trusses generally bring the roof load to the exterior walls, making all interior walls partition walls (but not always). Older homes and some newer homes don’t have trusses; they have framed-in-place roof rafters.
Does a hip roof need load bearing walls?
However a house with a hip roof structure suggests that all the exterior walls are bearing walls. Any wall, on all floors, directly above or parallel to a basement beam, typically wood, steel I-beam or a basement wall must be considered by a layman as directly load bearing.
