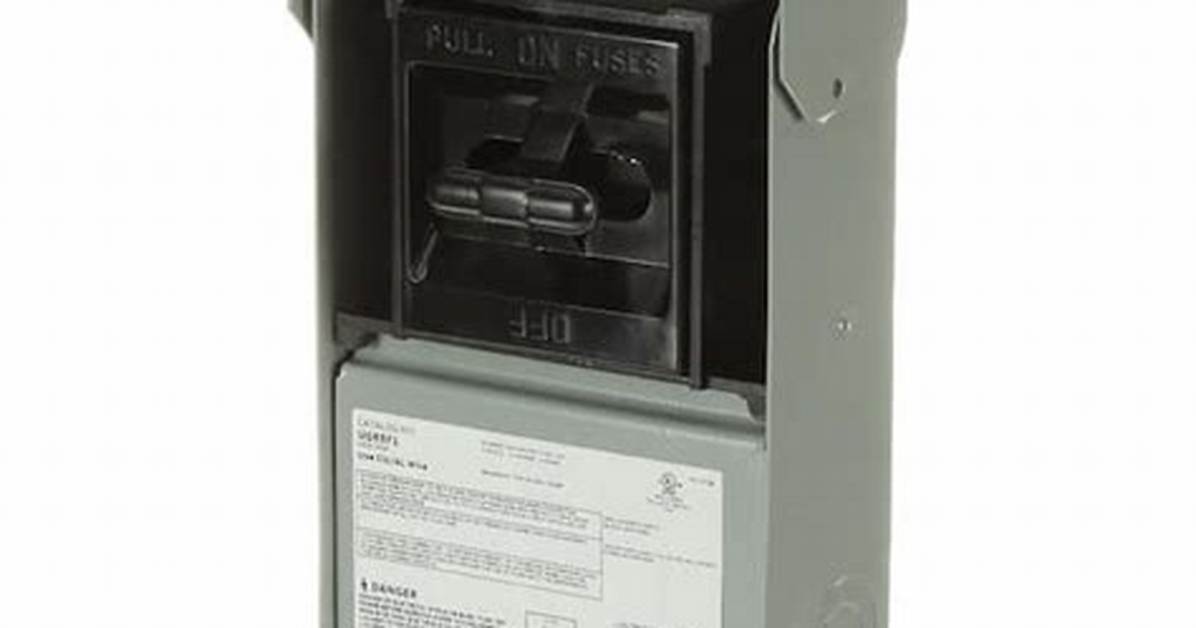

Do I need an AC disconnect?
Disconnects are not used for regular control of the circuit, but are employed as a safety precaution. The disconnect must be within sight from the AC unit to prevent someone who doesn’t know the technician is working on the unit from turning the power on causing unit damage or human life concerns.
Where do you install AC disconnect?
Building codes normally require that an external disconnect box be installed near the condensing unit located outside of the house. This box will allow the power to be cut to the condensing unit without entering the residence.
How much does AC disconnect cost?
The average cost to install an AC disconnect ranges from $200 and $500, though the cost can go up to $3,000 if you don’t have ample space or amperage on your circuit breaker. An AC disconnect is best installed at the time you install your AC unit but can be added afterward.
What is the purpose of a disconnect?
A safety switch (also known as a “disconnect switch” or “load break switch”) serves multiple purposes, but its primary functions are to serve as a disconnect means for a service entrance and a disconnect means and fault protection for motors (heavy machinery).
Does AC disconnect need to be fused?
Nameplate on the HVAC unit should tell you the maximum fuse/circuit breaker size required. If your breaker matches that then you’re fine, no fuses necessary. On the other hand, a fused disconnect is an extra bit of redundancy.
How close does a AC disconnect need to be?
Definition of readily accessible & within sight
This distance is typically described as within 50 feet (15 meters), and in practice at most residential properties the disconnect is much closer (3-6 ft), on a wall or standard near the compressor/condenser unit.
Do I need a disconnect for my mini split?
You might be wondering, “Do I really need a disconnect?” All mini split systems require a dedicated circuit to supply power to the system. A disconnect box is required by code to be installed near the outdoor unit and allows for a technician to shut off power to the system when performing any service or repairs.
How high can you put a disconnect?
Generally, disconnect switches have a height limit of not greater than 2.0 m (6 ft 7 in.) above the floor or working platform as indicated in 404.8(A). Exception 2 to 404.8(A) relaxes this requirement and allows greater heights to meet the provisions of 440.14 for these types of equipment.
Where is the disconnect switch on AC unit?
A disconnect switch is often located on the exterior of a residence near the exterior unit of the central air-conditioning system. A disconnect is an added safeguard to quickly disconnect the electricity from an electrical device rather than disconnect it at the main breaker panel.
How do you disconnect an outside AC unit?
You need an adjustable wrench and a set of hex wrenches.
remove the valve caps. Close the valve on the small (upper) line.Turn the unit on, COLD cycle, and listen carefully to the outer unit. Close the valve on the lower (large) line.Turn the unit off and unplug it.Crack open the nut on the large line.
Can I use a 30 amp disconnect on a 20 amp circuit?
If it is a fused disconnect it will hold up to 30 amp fuses. If it has fuses just use 20 amp fuses, they will work as they are supposed to. Size the wires appropriately, usually 12 gauge for a 20 amp circuit and use a 20 amp circuit breaker.
Does an electric hot water heater need a disconnect?
Speaking of professionals, an electrical contractor needs to know that you have a disconnect in place that will keep the power off while they perform repairs on your water heater. Most electricians have no interest in repairing devices and appliances on a live circuit.
How much is a 100 amp disconnect?
The top-selling product within Disconnects is the Square D QO 100 Amp NEMA 1 Disconnect Molded Case Switch. What is the price range for Disconnects? The average price for Disconnects ranges from $100 to $800.
Can a breaker be used as a disconnect?
Circuit breakers may work more effective as safe switches, but they are not switches. They are not interchangeable. Therefore, using a circuit breaker as a switch is not recommended.
Is a disconnect the same as a breaker?
In many cases, fused disconnect switches and circuit breakers can be used interchangeably, but in some applications, only one will be the best choice for the situation.
When should you use a disconnect switch?
Disconnect Switch Applications
Disconnect switches are often used in power distribution and industrial applications. In power distribution, disconnect switches may be utilized in emergency situations to shutdown the power to a particular area or to switch from one power source to another.
