For adequate water flow, it’s a good idea to install 1/2-inch or 3/4-inch PEX for your main lines. The standard when replacing old water supply lines with PEX is to use the same size.
Which PEX pipe is better A or B?
Kink-Resistance – PEX-A has the greatest resistance, PEX-B the lowest. You should never install kinked pipe. Bursting Pressure – Always check the tubing for maximum temperature and pressure ratings. Remember, the pressure ratings decrease as the temperature of the water increases.
How much pressure can 3/4 PEX hold?
In accordance with ASTM F876, the minimum hydrostatic burst pressure for PEX pipe is 480 pounds per square inch (for 1/2-inch pipe) and 475 psi (for 3/4-inch pipe and larger) at 73.4 degrees F.
What’s the difference between PEX A and PEX B?
PEX A vs PEX B: Burst Pressure
Bottom line, PEX A is more resistant to burst pressure than PEX B. PEX A’s expansive material can handle up to 500 PSI, which makes it reliable in extremely cold temperatures. Since PEX B is a more rigid material, it will not hold up as well in similar situations.
Is 3/4 PEX enough to supply a house?
3/4 supply is good for most houses. If you have low pressure with taps on 3/4 may be small. If you have big house with many lavatories and people 3/4 may be small.
Where should you not use PEX?
PEX can’t be installed in high heat areas.
You can’t install PEX in high heat areas like near recessed lighting. This also means you can’t connect PEX directly to a hot water heater, but you can use a connecting material to do this.
What’s the difference between PEX and PEX A?
Again, the main distinction lies in the manufacturing method, which is what assigns an A, B or C to PEX. PEX A is made using the Peroxide, or Engel, method. PEX B is formed using Silane, or Moisture Cure, method. This is the most common PEX pipe type out there.
Is PEX safe for drinking water?
There are no health risks associated with drinking water from PEX pipes. A few types of PEX-pipe may cause prolonged undesirable taste and odour if the water remains in pipes over time.
How long does PEX pipe last?
Additionally, long-term testing programs on PEX have shown that it has a potential lifespan of more than 100 years. So, while copper systems may have to be re-piped every few years or decades due to corrosion and pinhole leaks, a PEX system can last 10 times longer — or more.
What PSI is PEX good for?
PEX-a pipe can withstand a burst pressure of around 800 psi (almost two times the requirement for ASTM F876, the standard specification for PEX tubing). So neither the pipe nor the fittings are weak points, making for an extremely high-performing system in domestic water and hydronic piping applications.
Can PEX be used for compressed air?
A: No, PEX pipe is not intended for compressed air applications.
How often does PEX need to be supported?
Make sure that PEX is adequately supported
Horizontal runs of PEX must be supported every 32 inches if hanging, or every 72 inches if installed above beams. For vertical runs, PEX must be supported at least once per floor, and also keep in mind that joints add weight and require dedicated support as well.

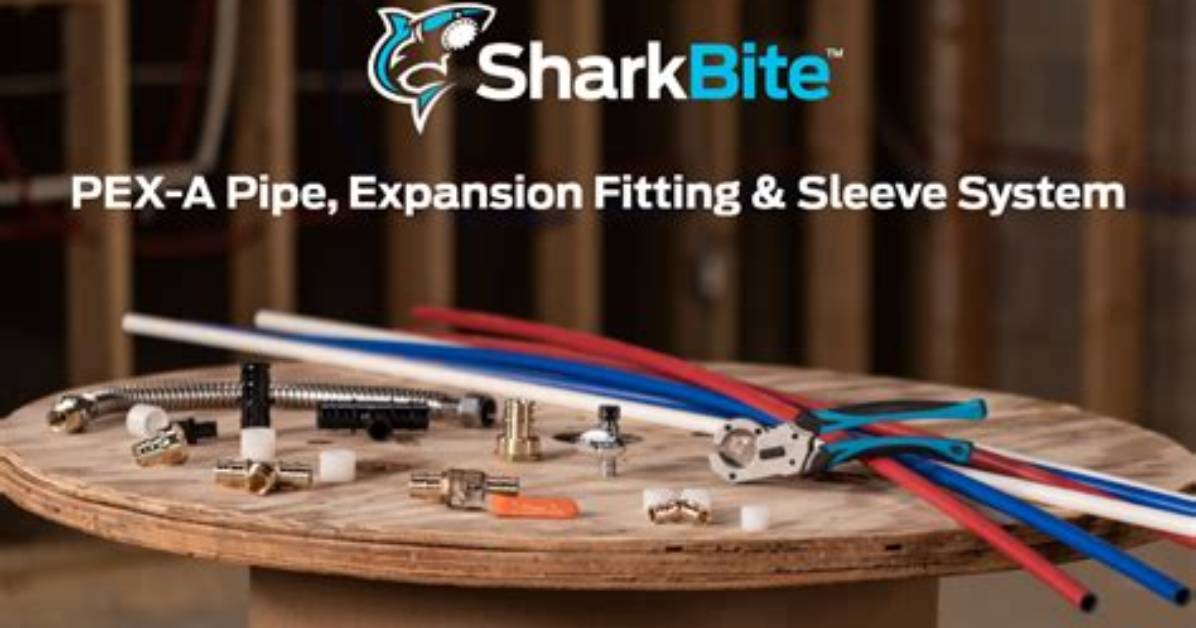

Is SharkBite PEX A or B?
Cross-linking is defined as polyethylene material that has undergone a change in molecular structure using a chemical or a physical process whereby the polymer chains are chemically linked. SharkBite non oxygen barrier pipe is manufacture as PEX-B and SharkBite oxygen barrier pipe is manufactured as PEX-C.
Is Apollo PEX A or B?
Apollo offers PEX-A (Expansion PEX) and PEX-B tubing. PEX-A tubing (Expansion PEX) is produced using the Peroxide or Engel method. Molecules of HDPE polymer are cross-linked during the extrusion process. PEX-B tubing is produced using the Silane or moisture-cured method.
Which type of PEX connection is best?
PEX-A, which has the most flexible tubing and best freeze- and kink resistance, is ideal for use with kitchen and bath fixtures. PEX-B is slightly less flexible and less freeze-resistant.
Can I use PEX for shower plumbing?
Use threaded PEX water line fittings for shower valves. Tighten the fittings before crimping the PEX water line. A plastic bracket forms the sharpest 90-degree angle permitted for this brand of PEX.
What size PEX is used in homes?
PEX is available in 3/8- to 1-inch diameters. It’s a good idea to install 1/2-inch or 3/4-inch PEX for your main lines for adequate water flow. When replacing old water supply lines with PEX the standard is to use the same size plumbing, although you can transition from 3/4-inch to 1/2-inch plumbing with an adapter.
What size PEX for a bathroom?
It’s a common question regarding bathroom installations. What size PEX for the bathroom to use? Usually, ½ and ¾ of inch PEX pipes are used in your bathrooms.
