The basics of shielding gas

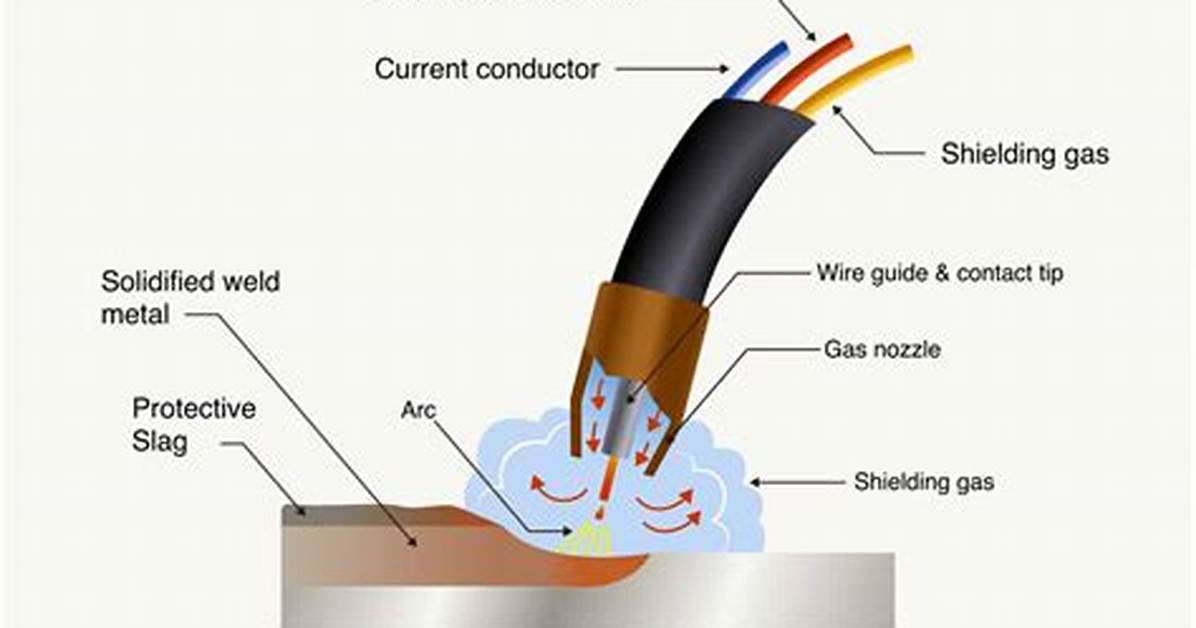

As a requirement of welding with a solid, gas-shielded flux-cored or metal-cored wire, the primary purpose of shielding gas is to protect the molten weld pool against elements in the atmosphere, such as nitrogen and hydrogen.
What does shielding gas protect?
The primary purpose of shielding gas is to prevent exposure of the molten weld pool to oxygen, nitrogen and hydrogen contained in the air atmosphere. The reaction of these elements with the weld pool can create a variety of problems, including porosity (holes within the weld bead) and excessive spatter.
What is gas-shielded wire?
Gas-shielded flux-cored wires have a flux coating that solidifies more quickly than the molten weld material. As a result, it creates a shelf to hold the molten pool when welding overhead or vertically up.
Which is better flux core or gas-shielded?
The main difference between flux-core and MIG welding is that flux-core welding does not require a shielding gas which makes it more portable. This also makes flux-core more suited to welding in windy conditions. The self-shielding flux-cored wire provides the shielding gas when burned.
What happens if you weld without shielding gas?
When using flux core welding, there may be some weld spatter and a slag crust may form on top of the weld. Slag will bubble up as a protective coating and will not permit you to see the weld pool. This, unfortunately, is one of the downsides to welding without shielding gas.
Which gas is used for welding?
Acetylene is the only fuel gas suitable for gas welding because of its favourable flame characteristics of both high temperature and high propagation rates. Other fuel gases, such as propane, propylene or natural gas, produce insufficient heat input for welding but are used for cutting, torch brazing and soldering.
What does the 70 in 7018 mean?
For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi. The third digit represents the welding position(s) for which the electrode can be used.
Why is gas used in welding?
What Is the Purpose of Gas in Welding? Welding gas is used in a range of different ways. These include shielding the arc from impurities like air, dust, and other gases; keeping welds clean on the underside of the seam opposite the arc (or purging); and heating metal.
How much is a tank of argon?
Argon gas cylinders are considered the most expensive, with prices going up to $350 for a new cylinder. This is due to the cost of mining and collecting the gas. Buying one large cylinder is more economical than exchanging several small ones.
What is the difference between gas shielded and self shielded?
The difference with self-shielding wires is that they do not require a shielding gas when the arc is active, which eliminates the need for a gas cylinder. This makes it a great choice for remote applications or when portability is important.
Is gas welding better than flux core?
GMAW is not good for welding outside or in drafty conditions. This is because the shield gas has a tendency to blow away before it can do its job. Compared to FCAW the welds will be more visually appealing and will have no slag to chip off. GMAW also welds thin metals with less burn-through compared to FCAW.
Do you need gas to MIG weld?
While it’s technically impossible to MIG weld without gas, it’s very possible to weld without lugging a gas cylinder and other equipment around. Self-shielding welding with flux core wire is a great option for many hobby users, and with the right welding supplies you can achieve great results!
Is MIG better than flux core?
Strength of the Weld
Welders will debate whether flux core welding or MIG welding provides a stronger weld until the end of time. The truth of it is that they are ultimately pretty similar. For most applications, both methods will provide a strong weld that will hold what it needs to.
Can you weld aluminum with a flux core?
But no success. The products are solid aluminum or flux core steel wire. They won’t work on aluminum, or needs a shielding gas.
Is MIG and flux core the same?
Similar to MIG, flux-cored arc welding (FCAW)* is a wire-feed process but differs in that self-shielded FCAW does not require shielding gas. Instead, flux-cored wire shields the arc from contamination. This is a simple and efficient approach, especially when welding outdoors, in windy conditions or on dirty materials.
Are no gas welders any good?
The answer? Gasless. Gasless (flux-cored) welding creates a lot more fumes than when using a shielding gas, thanks to all the things in the flux that work to protect the weld. That’s why gasless welding is much better for outdoor use.
Can you use flux core wire with shielding gas?
You can use gas with regular flux core, but it is a total waste of gas. The flux in dual shield wire doesn’t shield the weld, it causes better deposition rates and weld characteristics in the weld. Gas is needed with dual shield to shield the weld, but not with flux cored.
What welders have no gas?
A no gas MIG welder doesn’t use gas, but rather a hollow wire that’s filled with flux. Flux is used to protect the molten weld puddle when it’s cooling. Just like flux is used to protect the weld puddle when using flux core wire, a shielding gas is used with the MIG process to protect the weld puddle.
