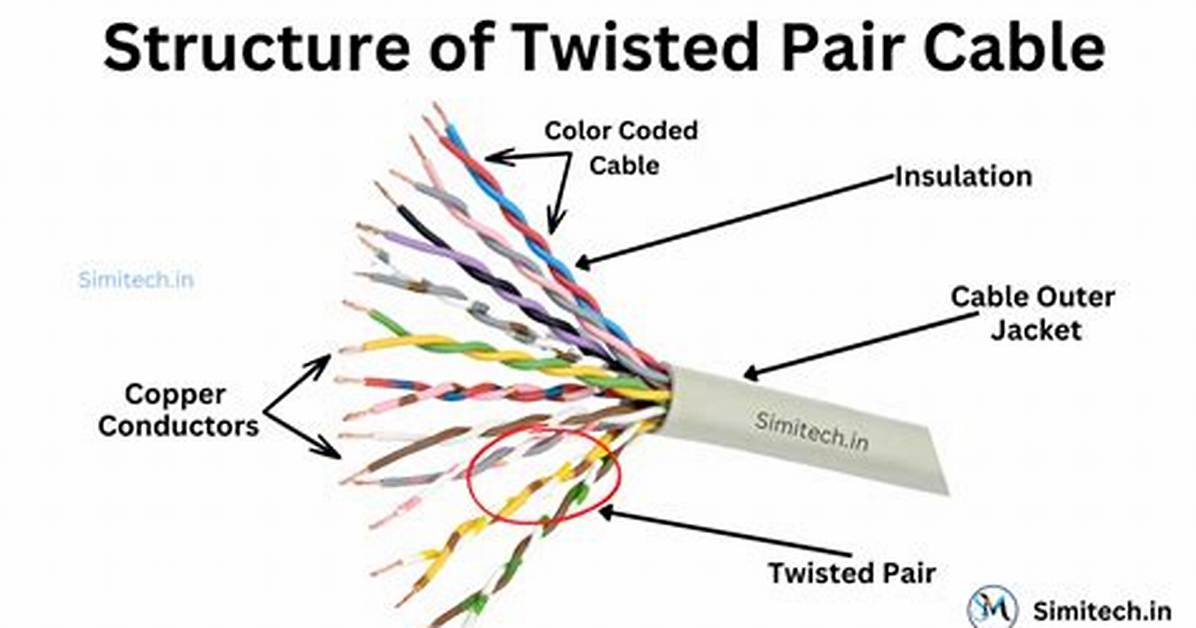

Twisted-pair cable is a type of cabling that is used for telephone communications and most modern Ethernet networks. A pair of wires forms a circuit that can transmit data. The pairs are twisted to provide protection against crosstalk, the noise generated by adjacent pairs.
What are the examples of twisted pair cables?
Twisted-pair cables were among the earliest guided transmission media, along with coaxial cables. Today, twisted-pair cables are used in many applications in networking and communication, for example, in telephone lines, Digital Subscriber Line and local area networks.
What are 3 advantages of twisted pair cable?
Advantages of Twisted pair cable :
If portion of a twisted pair cable is broken it doesn’t effect the whole network. Less vulnerable to electrical interference caused by nearby equipment or wires. It cause interference themselves. Best performance in short distances.
How many cables are in a twisted pair?
A twisted pair cable comprises of two separate insulated copper wires, which are twisted together and run in parallel. The copper wires are typically 1mm in diameter. One of the wires is used to transmit data and the other is the ground reference.
What is the difference between twisted pair cable and fiber optic cable?
Twisted Pair cable is a type of wiring technology where two conductors of a single circuit are twisted together. Data can be transmitted in the form of a circuit by a pair of wires. Fiber optic cable is a type of Ethernet cable that consists of one or more optic fibers which are used to transmit data.
What is the difference between twisted pair cable and coaxial cable?
1. In coaxial cable, the transmission of signals happens via the inner conductor of the cable. In twisted pair cable, the transmission of signals happens via metallic conducting wire. 2.
Why is it called coaxial cable?
Coaxial cable received its name because it includes one physical channel that carries the signal surrounded — after a layer of insulation — by another concentric physical channel, both running along the same axis. The outer channel serves as a ground.
Is Ethernet twisted pair?
An Ethernet cable is one of the most popular network cables used on wired networks for the purpose of transmitting network information. The commonly seen types of Ethernet cables are twisted pair cables, which can be divided into two categories: shielded twisted pairs (STP) and unshielded twisted pairs (UTP).
What are the color used in twisted cable?
In UTP cable, each pair is represented by a specific color. Pair 1 is Blue, Pair 2 is Orange, Pair 3 is Green, and Pair 4 is Brown.
What are the major limitations of twisted pair wire?
What are some major limitations of twisted-pair wire? Twisted pair wire is subject to interference, limited in distance, bandwidth, and data rate.
How does twisted pair cable reduce noise?
By twisting wires that carry an equal and opposite amount of current through them, the interference/noise produced by one wire is effectively canceled by the interference/noise produced by the other. A twisted pair also improves rejection of external electromagnetic interference from other equipment.
How many twists per inch is Cat6?
Cat5e typically has a twist rate of 4-5 twists per inch whereas Cat6 cables have a twist rate of 5 or more twists per inch. To further reduce crosstalk, not all conductor pairs in a cable will have the same twist rate.
Are all four pairs of cables twisted the same amount?
Each bundle consists of twisted pairs that have different twist rates, as pairs having the same twist rate within the cable can still experience some degree of crosstalk.
Why is fiber optic better than twisted pair cable?
Fiber Optic Cable
Transmissions can travel at a greater distance at a much faster pulse—26,000 times faster than twisted pair. Optical fibers are insulated in plastic coating within a protective plastic outer layer or tubing.
Which cable has higher noise immunity?
Optical fiber cable has the highest noise immunity. The cost is very low. Cost is expensive. Repeater spacing is 2-10 km.
Why fiber optic cable is better than twisted pair cable?
Fiber optic cable transmits data as pulses of light go through tiny tubes of glass, the transmission capacity of which is 26,000 times higher than that of twisted-pair cable. When comparing with coaxial cables, fiber optic cables are lighter and reliable for transmitting data.
