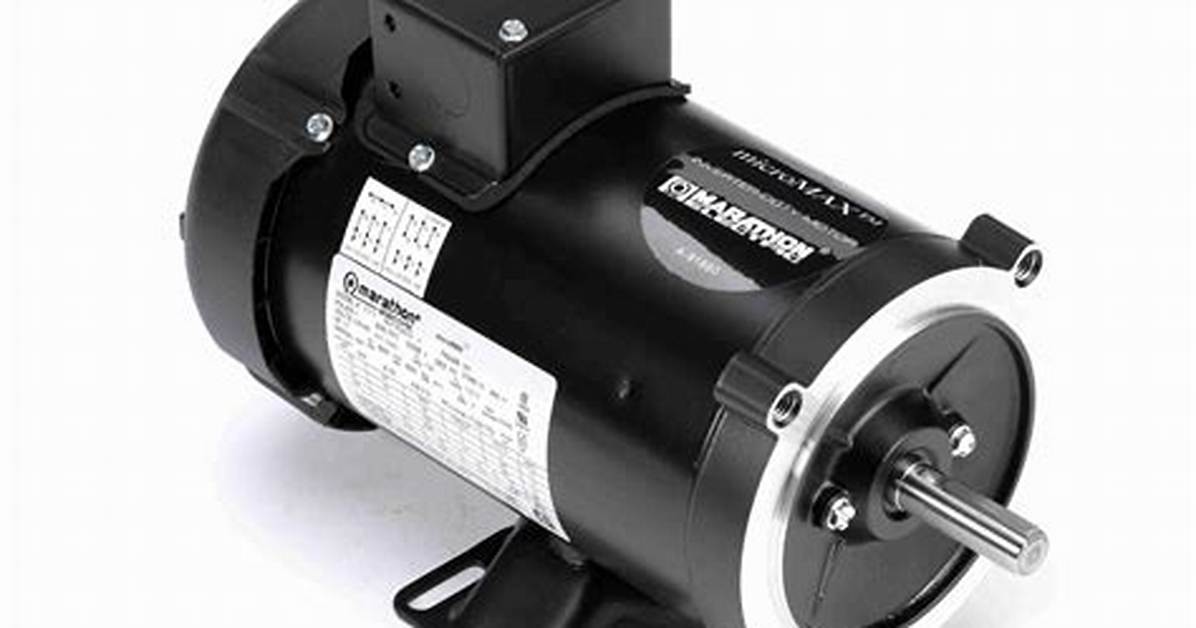

Simply put, a variable speed motor is a motor that has a variable frequency drive or similar technology installed to control motor speed and torque.
Can any motor be variable speed?
For applications where variable speeds are necessary, typically an AC motor with an Inverter or brush motors are used. Brushless DC motors are an advanced option due to their wide speed range, low heat and maintenance-free operation. Stepper Motors offer high torque and smooth low speed operation.
Which are two types of variable speed motors?
There are three general types of variable speed drives- DC Motor drives, Eddy Current Drives, and AC Motor drives.
How does variable speed motor work?
Variable speed drives supply specific amperage and voltage to a motor. If the supply power is in AC form, VSDs utilize a rectifier circuit to convert the AC to DC at a specified voltage and amperage that the drive can adjust. Changing the voltage of the DC changes the speed of the motor.
Are variable speed motors AC or DC?
Variable speed drives (VSDs), also called variable frequency drives, are a valuable tool for the energy manager. Typically the VSD system consists of a three-phase AC induction motor and a variable frequency power supply.
How do I make my AC motor variable speed?
AC motors are constant speed devices but their speed can vary if you change the input voltage or frequency or the windings that make the motor rotate. The most common and efficient way of changing the speed is to vary the frequency by using an inverter as the power supply.
How do you control the speed of an AC motor?
The most common way of controlling AC motor speed is changing the motor’s frequency. With this method, variable speed AC motor drives are used to adjust the speed. These are often called variable frequency drives (VFD), AC inverters, or adjustable speed drives (ASD).
How do you slow down a 240v motor?
With a Shaded Pole motor, you can simply reduce the voltage, say with a light dimmer and the motor produces less torque, then with less torque the air friction on the fan blades causes it to slow down, which in turn moves less air.
Which is better VFD or VSD?
Energy Efficiency
In general, VFDs are more energy efficient and result in more energy saved than VSDs. VFDs can connect to more than one motor. This allows them to control other elements in a system such as a pump system or an HVAC.
Where is VFD used?
The most common uses of a VFD are for control of fans, pumps and compressors, and these applications account for 75% of all drives operating globally. Soft starters and across-the-line contactors are other, less sophisticated types of motor controllers.
What is VFD and its types?
There are two major types of variable frequency drive on the market: mechanical and electrical. Mechanical VFDs include the following subtypes: Variable pitch drive – a belt and pulley drive where the pitch diameter of one or both pulleys is adjustable, giving a multi ratio and hence a variable output speed.
What is the difference between 2 stage and variable speed?
To recap, here are the main points: Two-stage air conditioners have two settings: one at 100% capacity, and the other running at around 60% capacity. Variable air conditioners run at much slower speeds that can be as low as 25% capacity. Variable air conditioners run for longer but use up less energy.
What does it mean to be variable speed?
A variable speed limit is a flexible restriction on the rate at which motorists can drive on a given stretch of road. The speed limit changes according to the current environmental and road conditions and is displayed on an electronic traffic sign. Signs typically indicate a maximum speed and may also list the minimum.
Is VFD same as VSD?
A variable frequency drive (VFD) refers to AC drives only and a variable speed drive (VSD) refers to either AC Drives or DC Drives. VFDs vary the speed of an AC motor by varying the frequency to the motor. VSDs referring to DC motors vary the speed by varying the voltage to the motor.
Are Tesla motors AC or DC?
Tesla, for example, uses alternating current (AC) induction motors in the Model S but uses permanent-magnet direct current (DC) motors in its Model 3. There are upsides to both types of motor, but generally, induction motors are somewhat less efficient than permanent-magnet motors at full load.
Why are DC motors better than AC?
DC motors have the advantage of: higher starting torque, quick starting and stopping, reversing, variable speeds with voltage input and they are easier and cheaper to control than AC. AC motor advantages include: lower power demand on start and minimal maintenance.
Does fan uses an electric motor?
The ceiling fan has a motor that converts electrical energy into mechanical energy. First, the capacitor of the ceiling fan torques up the electric motor, thereby causing it to start and run. As the electrical current reaches the motor, it enters coils of wire that are wrapped around a metal base.
