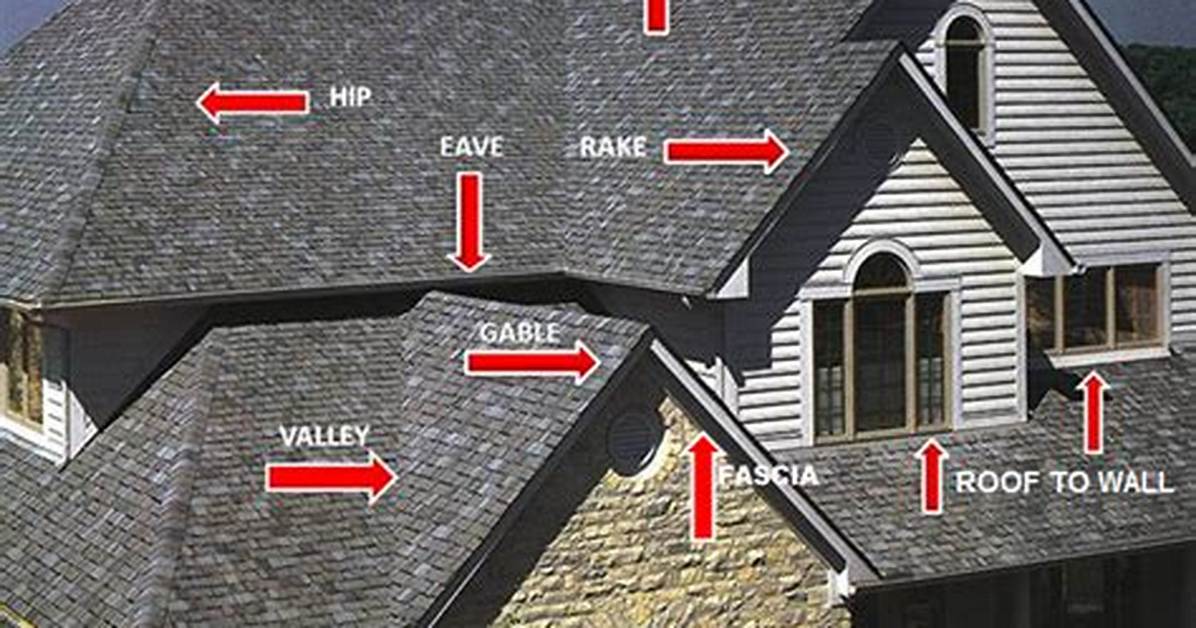

A rake board covers the top edge of siding or it covers the soffit if there is an overhang on the end of the gable. The purpose of the rake board is simply to prevent rain from running behind the siding or to cover the top edge of brick if it’s a brick home. These boards vary in size.
Where is the rake board?
Specifically, it’s the exposed part of a gabled roof that extends from an eave to the ridge of the roof’s sloped sides. It covers the top edge of a roof and is typically cut from a variety of roofing materials. Concrete or PVC, cedar, pine, and smartboard are all common candidates.
What is the rake on a building?
Rake—The slanting edge of a gable roof at the end wall of the house. Ridge—The horizontal line at the top edge of two sloping roof planes. Sheathing—The decking material (usually sheets of plywood), which is nailed to the rafters, and to which shingles or other outside roofing materials are secured.
What is the overhang on a roof called?
What Is a Soffit? Your roof by necessity, will often times extend over the walls of your home. This overhang can go by a few names, such as the house eaves or the rafters of your roof. The underside of this overhang, when given a finished appearance, is known as the soffit, which means “something fixed underneath”.
What is the trim around a roof called?
Fascia: Vertical roof trim located along the perimeter of a building, usually below the roof level, to cover the rafter tails at the eaves and to seal off the top of the siding along the rake; also called gutter boards.
When should you rake a roof?
If your roof is flat or has a low slope, roof raking is definitely a must once the snow gets to be about 6 inches or more. If your roof has a higher pitch, it’s still something to consider, especially if the snow is wet and heavy and it is building up.
Does drip edge go on rakes and eaves?
A drip edge should be installed on the eaves and rakes of the roof, flush with the decking and fascia. On eaves, the drip edge is installed directly to the deck with underlayment installed over it for proper water shedding. On rakes, the underlayment is installed over the drip edge.
What is the difference between gable and rake?
Gable: The A-shaped side wall of the home that forms the peak of the roof is called the Gable. The home above has two gables, one on each end of the home. Rake: The rake of the roof is the part that ends over a gable end.
What is rake and eave?
(The eave, for readers who are not familiar with the term, is the roof’s horizontal edge along the exterior wall. The rake is the sloped edge that travels up the exterior end wall of a gable or shed roof.)
What are gables on a roof?
Gabled roofs are the kind young children typically draw. They have two sloping sides that come together at a ridge, creating end walls with a triangular extension, called a gable, at the top.
What is fascia on a house?
fascia. Trim is the material used to encase windows and doors, among other features, on a home’s exterior. Fascia is a horizontal or angled board that encloses the edge or face of the projecting eaves.
What is a rake detail?
Rakes are another area on the exterior of your home (in addition to soffits and fascia) that can be customized to match the trim of your home. They can be intricate or simple in design, flat or sloped. They are usually positioned just below your roof’s shingles or other roofing material used.
What is a rake overhang?
The American Wood Council’s 2012 Wood Frame Construction Manual defines rake overhang as “The horizontal projection of the roof measured from the outside face of the gable endwall to the outside edge of the roof.” Section 2.1. 3.4.
What is a rake gable?
Also known as rake trim, gable trim is a finishing piece of metal flashing used along the edges of a metal roof line where the edge of the metal roof panel meets the endwall panels.
Do I need overhang on roof?
Importance of a Roof Overhang
These structures have an important function which encompasses the protection of doors, windows, siding, and walls from the rain and heat. Without the right overhang protection, sides of a home could rot from rain exposure, or your house could easily feel overheated over the summer.
What is soffit used for?
Like many parts of a home’s exterior, soffit serves both an aesthetic and a functional purpose. Functionally, the basic mission of soffit is to protect rafters from the elements. Keeping moisture away from the rafters reduces the chance of mold, and helps preserve the life of the materials.
What is the difference between an eave a rake and a ridge?
There is a difference between these two terms. The rake of a roof, as explained above, is the exposed portion on the sides of a gable roof that extends from the eave to the ridge of the sloped sides. It covers the top edge of a roof, while a roof rake is used for removing snow from the roof of a house.
