While a relay does add an extra step to the switching process, the main advantage is that you can leave the actual switching of high-power circuits for things like off-road lights or air compressors in the engine compartment, and control that switching with a much smaller amperage circuit that energizes the relay’s
How a relay works 12v?

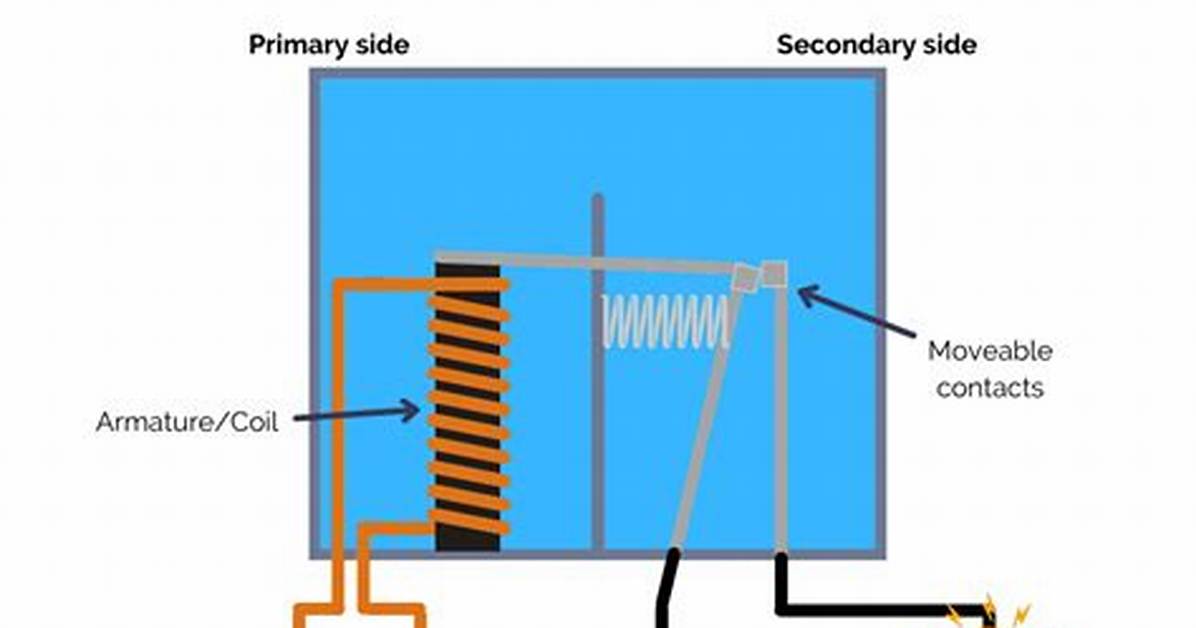

Relays install between the power source and the electrical accessory requiring on/off power. When the relay is energized, the high current to operate the accessory flows from the power source, through the relay, and directly to the part.
Which are the two types of relays?
Types of Relays – A Thomas Buying Guide
Relays are electrically operated switches. Electromechanical relays have an electromagnetic coil and a mechanical movable contact. Solid-state relays are solid-state electronic components that do not have any moving components, which increases their long-term reliability.
Does a relay need constant power?
The answer to that one is No. Relays have finite life time in terms of how many times they can open and close. And limit to how much current they can handle.
Do you have to use a relay with LED light bar?
So in short if you do not properly wire the light bar to a battery and use a correct amperage switch which will keep the light bar on it’s own independent circuit a relay is unnecessary. However if you tap into the high beams or another lower voltage switch then you will need a relay to avoid an electrical fire.
Why is a relay needed?
One of the most common situations that require the use of a relay occurs when an application needs to switch from high to low current (or vice versa) within the same circuit. For example, the temperature sensors that power HVAC units require levels of amperage that vastly exceed the capacity of their wiring.
Why DC is used in relay?
DC power is used because it allows for a battery bank to supply close/trip power to the breaker control circuits in the event of a complete (AC) power failure.
What are the 5 applications of relay?
Applications of Relays in Electronic Circuits
Relay Drive by Means of a Transistor.Relay Drive by Means of SCR.Relay Drive from External Contacts.LED Series and Parallel Connections.Electronic Circuit Drive by Means of a Relay.Power Source Circuit.PC Board Design Considerations.
How many terminals does a relay have?
These have two terminals which can be connected or disconnected. Including two for the coil, such a relay has four terminals in total. SPST-NC (Single-Pole Single-Throw, Normally-Closed) relays have a single Form B or break contact. As with an SPST-NO relay, such a relay has four terminals in total.
Does a relay increase voltage?
Nonetheless, relays can “control” larger voltages and amperes by having an amplifying effect because a small voltage applied to a relays coil can result in a large voltage being switched by the contacts.
What are the four functions of a relay?
Relay is an automatic switching element with isolation function, which is widely used for remote control, telemetry, communication, automatic control, electronic equipment, etc.
2.1 Summary
Expanding control range. Amplification. Integrated signal. Automatic control, remote control, and monitoring.
When would you use a 12V relay?
12V DC relay switches are the best solution for full voltage applications, as they allow a low current flow circuit to control a high current flow circuit, like a vehicle’s horn, headlights, auxiliary lamps, fan motors, blower motors and countless pieces of equipment existing on vehicles today.
