It is not required, but it can be a good idea. Personally, I would prefer them to be in conduit (e.g. ENT/smurf tube) with splices in junction boxes. Just like with electrical wires, it will protect them from damage while providing accessibility for splices.

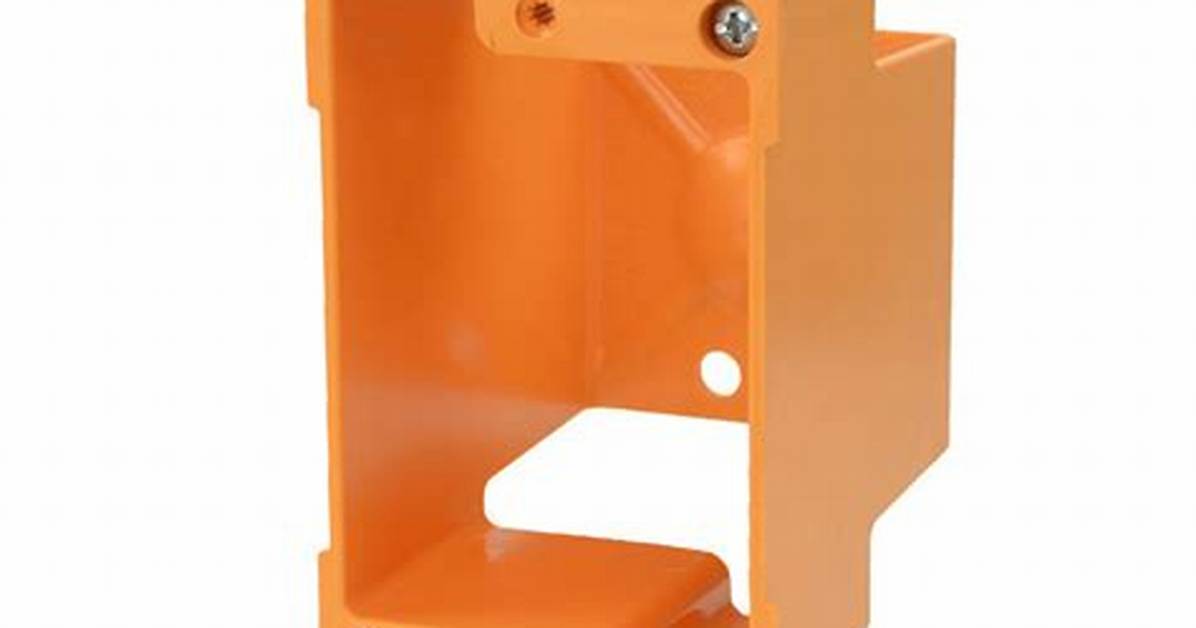

What is a low voltage junction box?
The Low Voltage Junction Box is used to create a safe, clean, and organized enclosure for splicing two 3-conductor low voltage wires together. The Junction Box may be mounted to any surface. This is not compatible with 4-conductor RGB wire.
Can low and high voltage be in same box?
Section 725-54(a)(1), Exception No. 2 in the NEC allows low-voltage cables and higher-voltage conductors to be in the same enclosure where the higher voltage conductors are not greater than 150 volts to ground and are introduced solely to connect to the equipment.
Can low voltage start a fire?
When several things line up and goes wrong, low voltage wiring can cause fires, explosions and shocks under the right conditions. When indoor rated system get soaked with water due to power surge and lightning.
Can you install a light without a junction box?
If you’re wondering how you install a light fixture without an electrical box, the short answer is that you don’t. The electrical box, or junction box, is a code requirement that was established to prevent fires and other electrical accidents.
What is considered a low voltage system?
Low Voltage Supply and Controls. Low voltage has multiple meanings in the electric/electronic world. A common rule of thumb is that anything below 600 volts is considered low voltage.
What is low voltage wire?
What Is Low Voltage Wiring? Anything with 50 volts or less is considered low voltage, and thus, wiring that is designed to carry less than 50 volts is considered low voltage wiring. It carries less power than what is typically found in the home – for example, most standard wall outlets are 120V or 240V.
What causes low voltage at an outlet?
Low voltage from household outlets typically stems from a worn-out or damaged fixture. Over years of use, outlets sustain wear and tear just like other frequently used items. Over time, plugging and unplugging cords causes the connections within the plug to loosen, which wears away the outlet.
What are low voltage brackets used for?
A low voltage mounting bracket is a great method of managing your audio visual needs and keeping all your electronic and computer accessories in check. Use wall plates for home theaters and all their related equipment and accessories.
What is smurf tube used for?
A Smurf tube is a conduit for all those TV wires and cables. The tube is blue so many builders in Olympia WA nickname it a Smurf tube. With many floor plans calling for flat screen TVs to be hung on the wall above the fireplace, it leaves the new owner in a quandary about what to do with all those cables.
What is a plaster ring?
A cylindrical metal ring, set in a plaster ceiling, which serves as a guide for plastering to a given thickness; also serves as a fastener for trim.
Can AC and DC run in the same conduit?
We have been asked a few times in the recent past as to whether we can run DC and AC cables run in the same conduit. The answer is No since the DC cables could induce a DC voltage onto the AC side. The AC sine wave should oscillate about the 0 volt axis i.e., the positive and negative cycles should be the same.
Can different voltages be in the same junction box?
Yes, power conductors of different systems can occupy the same raceway, cable, or enclosure if all conductors have an insulation voltage rating not less than the maximum circuit voltage [300.3(C)(1)] (Figure).
Can I run Ethernet and power in the same conduit?
Anyone can run an ethernet and power cable in the same conduit. The actual process is precisely what it sounds like. Just run the ethernet cable next to the power cable in a conduit. However, if you want to avoid the negative consequence of this practice, you have to take the necessary precautions.
Are low voltage systems safe?
A low voltage electric shock is dangerous because it can cause electrocution and fatal injuries even though there are no visible signs of external injury. It transmits through tissues with low resistance such as the brain, heart, internal organs, blood vessels and the central nervous system.
Is it true that a low voltage system Cannot harm you?
The good news is that the electrical current through low-voltage cabling—such as telecommunications, security or video—is not strong enough to cause a fatal electric shock. The bad news is there still are very real safety risks when performing low-voltage installations.
Can you touch low voltage wires?
Because of its low voltage, doorbell components and wiring are safe to handle, even when electricity is flowing through them.
