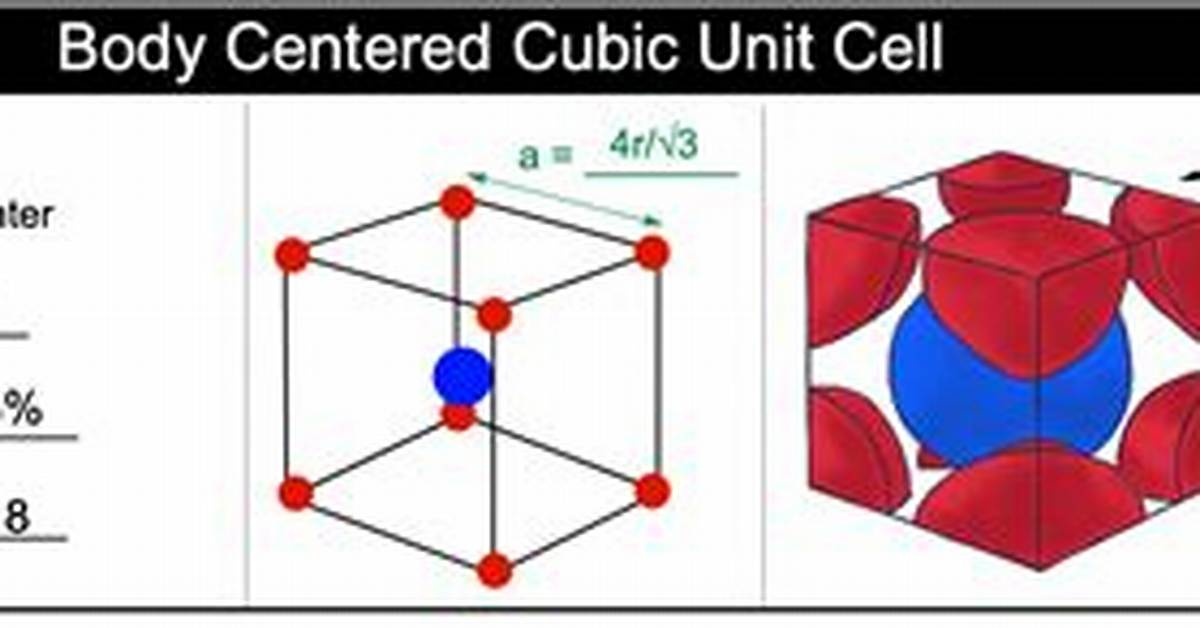

Body-centered cubic (BCC) is the name given to a type of atom arrangement found in nature. A body-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube shares an atom and with one atom positioned at the center.
What is an example of body Centred cubic?
Sodium is an example of b.c.c. structure.
How many atoms in body-centered cubic?
Body Centered Cubic
This unit cell uses nine atoms, eight of which are corner atoms (forming the cube) and one more in the center of the cube.
Is gamma iron a body-centered cubic space lattice?
The alpha iron (α-Fe) is a body-centered cubic (BCC) and the gamma iron (γ-Fe) is a face-centered cubic (FCC).
Which of the following is an example of the cube?
A cube is a three-dimensional solid figure, having 6 square faces. It is a geometrical shape with 6 equal faces, 8 vertices, and 12 equal edges. Some of the real-life cube examples are playing dice, ice cubes, Rubik’s cube, etc that we see around us.
How many 111 planes are there in a cubic lattice?
7.1. Face;;’Centered Cubic
There are 4 octahedral planes {111), (111), (11 I) and (Ill), 6 directions in each octahedral plane. Each of the directions is common to two octahedral planes, resulting in a total of 12 slip systems. Slip is also possible on (100) along .
Is body-centered cubic close packed?
BCC structures have no close packed planes. Its coordination number is just the number of equidistant neighbors from the atom in the center of the unit cell. BCC coordination number is therefore 8, as each cube corner atom is the nearest neighbor.
What’s the packing efficiency of the body-centered cubic structure?
The volume of the unit cell is given as. Therefore, packing efficiency of BCC is 68.04%.
What is the most efficient space lattice?
The packing efficiency of both types of close packed structure is 74%, i.e. 74% of the space in hcp and ccp is filled. The hcp and ccp structure are equally efficient; in terms of packing. The packing efficiency of simple cubic lattice is 52.4%.
How is FCC APF calculated?
The atomic packing factor is defined as the ratio of the volume occupied by the average number of atoms in a unit cell to the volume of the unit cell. for FCC a = 2√2 r where a is side of the cube and r is atomic radius.
What is Z for CCP?
Ccp is somewhat same as fcc so z will be 4.
Why CCP is called FCC?
Face Centered Cubic (fcc) or Cubic Close Packed (ccp) These are two different names for the same lattice. We can think of this cell as being made by inserting another atom into each face of the simple cubic lattice – hence the “face centered cubic” name.
Why CCP and FCC are same?
The cubic closed packing is CCP, FCC is cubic structures entered for face. When we put the atoms in the octahedral void, the packing is of the form of ABCABC, so it is known as CCP, while the unit cell is FCC.
