I read somewhere that a normal weld has a tensile strength of 1500 psi where the 3m panel bond has a tensile strength of 3,000-4,000 psi. So the Adhesive is plenty strong for the project I am working on Heck, Mercedes, BMW etc has some cars now that are almost completely glued together using this type of adhesive.
Is Panel bond stronger than weld?
Welding Versus Body Panel Adhesive
Metals also undergo less distortion and are at a lower risk of damage, making the bond strong and durable. What is this? On the other hand, body panel adhesive is gluing together automotive body parts of different or similar materials using an adhesive bond material.
How long does panel bond take to cure?
3M recommends holding vehicles repaired with Panel Bonding Adhesive in a heated area for a minimum of 24 hours with a constant temperature of 73°F or higher before returning the vehicle to service.
Can you paint over 3M Panel Bond?
The 3M 08115 Panel Bonding Adhesive can be painted over with an automotive 2K paint system; however, a self-etching primer should not be used with this product. If the 3M 08115 Panel Bonding Adhesive has cured for over 24 hours, it should be scuffed/abraded to reduce the gloss for proper paint adhesion.
Can you weld over panel bond?
You can weld through uncured 3M™ Panel Bonding Adhesive (PN 08115) using squeeze-type resistance spot welding to form a weld bonded joint.
What is the strongest glue for metal to metal?
Epoxy adhesives form the strongest metal-to-metal bonds. They consist of two parts – the adhesive and the hardener. These combine to create strong, long-lasting bonds between different types of metal or between metal and concrete surfaces. For metal you may want to find yourself a two-part epoxy adhesive.
What glue is stronger than weld?
Bonding compound: Loctite Weld
A convenient alternative to welding, it’s the strongest solution for bonding most metals, including iron, steel, aluminum, brass, copper, and pewter.
What is the strongest adhesive?
The name of the world’s strongest adhesive is DELO MONOPOX VE403728. This is a modified version of the high-temperature-resistant DELO MONOPOX HT2860. This epoxy resin forms a very dense network during heat curing.
What is 3M panel bonding adhesive used for?

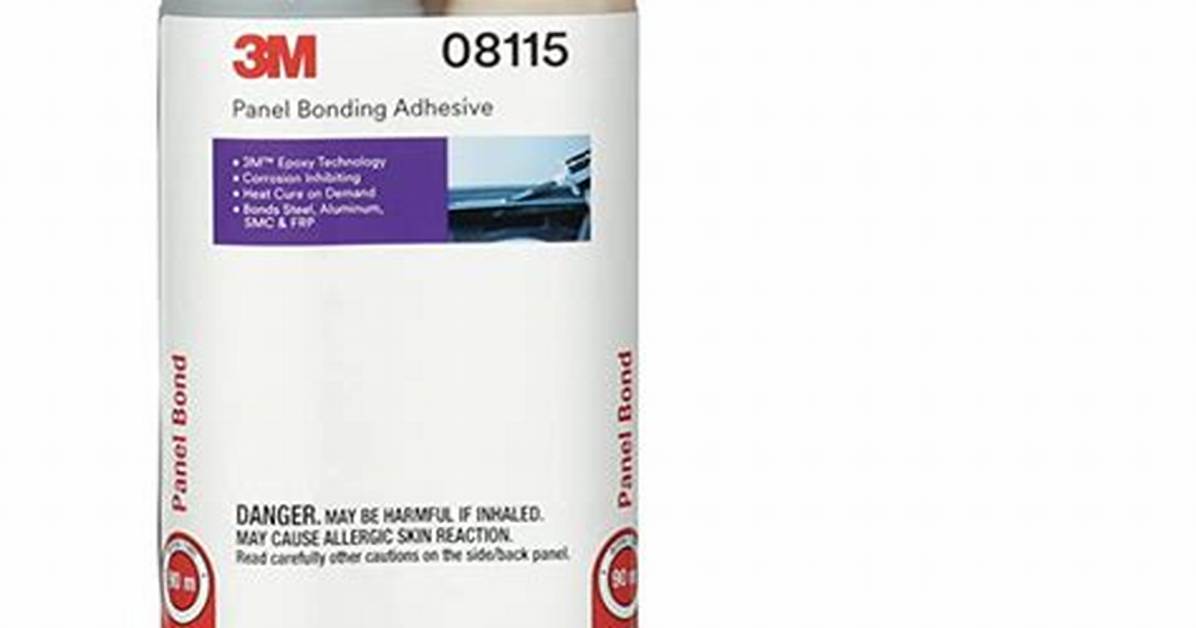

The 3M™ Panel Bonding Adhesive is a two-part epoxy used to bond steel, aluminum, SMC, and FRP (traditional fiberglass). The primary use is to replace quarter panels, roofs, box sides, van sides, utility vehicle sides and door skins.
Is 3M Panel Bond Sandable?
Panel bond seams come apart easily under heat. It is also sandable so if you don’t get it cleaned up right away just sand it off. You can create a very nice seam that way also. Like others said you cannot weld through it or near it unless you are using a spot welder (pro spot) or similar machine.
How do you apply panel adhesive?
Paneling: Apply 1/4” bead of adhesive approximately 1” from edge of panel around the perimeter. Apply two zigzag 1/4” beads in the middle of the panel. Press panel firmly into place. Remove panel from wall for one minute.
Is bonding better than welding?
Unlike welding, structural adhesives have the ability to maintain the integrity of the bonded materials because there is no metal distortion or weakening due to heat when using adhesives. Structural adhesives can also increase the stiffness of structures and provide the necessary fatigue and force resistance.
Will Panel bond work on plastic?
The result of years of development and testing, our 3M Panel Bonding Adhesive bonds and seals plastic and metal substrates including cold roll steel, aluminum, SMC, and FRP (traditional fiberglass).
How do you remove body panel adhesive?
The Best Way to Remove Body Side Molding & Adhesive
Place vehicle in warm area. Heat one end of the body molding with a hair dryer until it is hot. Remove any remaining adhesive, which might be attached to the body panel after the body side molding has been removed. Remove scuff marks left by the earlier process.
What is the difference between 3m 8115 and 8116?
8115 has a 90-minute working time and a 4-hour clamping time, 8116 has a 120-minute working time 6-hour clamping time. They both cure in 24 hours.
Will Panel bond work on fiberglass?
The 815 is by far my favorite panel bond. It is very versatile and i find more uses for it every day. I use it for everything from bonding on fiberglass panels on hotrods to repairing clips and filing cracks on dashes of cars.
