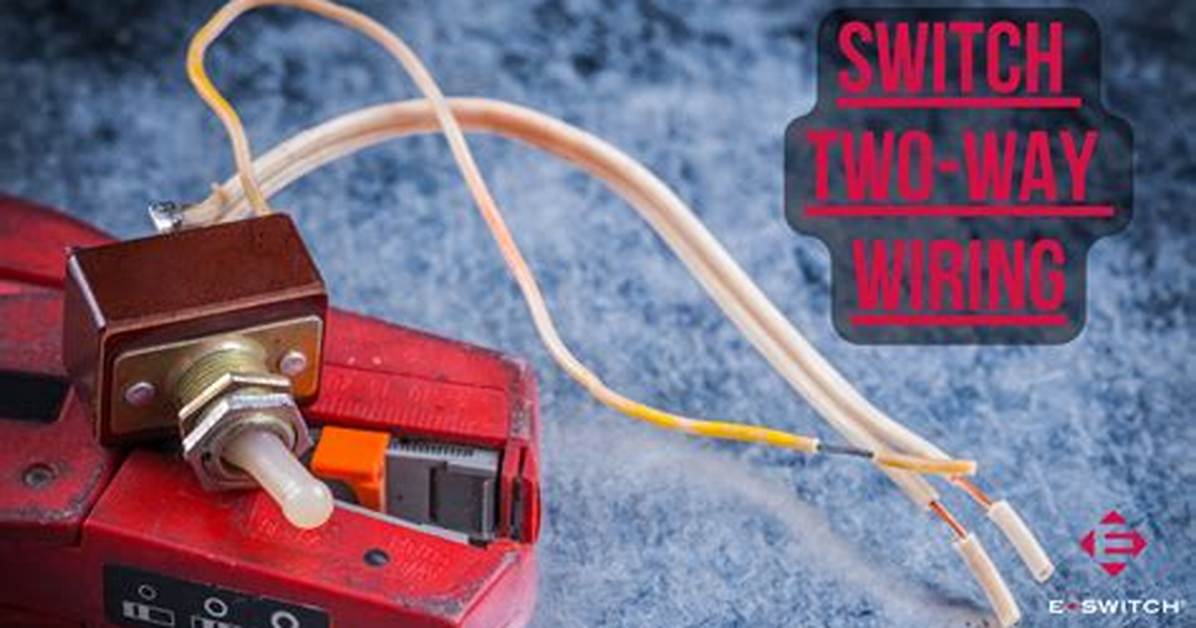

Start by crimping your wire terminals on the run of wire you’re using for the circuit. Next, take the wire you’re using for power, and secure it to the center terminal of the switch. Next, take the wires you’re using for your accessory, and secure onto the top terminal on your switch.
Does a toggle switch need to be grounded?
Grounding light switches have become commonplace, used as a preventative safety measure. It is perfectly legal to wire a light switch without the inclusion of a ground. Dimmers will require a ground wire but traditional toggle-type switches will not. Omitting a ground wire on any switch is not recommended.
How does a 2 toggle switch work?
They typically have two terminals. One is for input, the other for output. In one position the switch is ‘Open’ and no connection is made, and no power can flow to the accessory. In the other position the two terminals are connected and power can flow through.
How do you install a single pole toggle switch?
Steps for Wiring a Single-Pole Switch
Turn Off the Power First. Remove the Existing Switch (If Necessary) Strip the Electrical Insulation From the Wires. Connecting the New Switch. Wrap With Electrical Tape for Added Safety. Turn on The Power and Test Switch.
Why do some switches have 3 prongs?
Pin 3 is where the switch is either connected to ground or left open. This is the pin where the rocker switch receives its voltage. This is the pin that connects to the load of the circuit, whatever the rocker switch turns on when it’s switched on.
How does a 3 toggle switch work?
Alternate ON/OFF describes a switch where the first actuation turns the toggle switch ON and the second actuation turns the toggle switch OFF. Three-position momentary center-NEUTRAL toggle switches have a center position that can perform an OFF or NEUTRAL function.
How do you wire a SPDT toggle switch?
The basic design of an SPDT, center off switch. Connect the source wire to the center terminal. Connect the first device wire to one terminal. This wire will supply the voltage or signal from the switch to the device or circuit. Connect the second wire to other open terminal. Locate a position for the switch.
How does a 3 way switch work?
“3-way” is the electrician’s designation for a single pole double throw (SPDT) switch. The switches must create a complete circuit for current to flow and the bulb to light. When both switches are up, the circuit is complete (top right). When both switches are down, the circuit is complete (bottom right).
Do you put a switch on positive or negative?
Technically, either way will work, although it’s more common to put the switch in the positive power lead. The reason is that components often have more than one path to ground, so putting a switch in the “primary” ground wire might not completely isolate the accessory from ground.
What happens if you don’t ground a light switch?
Going without a ground wire
When you screw the light switch in, it will make contact with the box, and as long as the box is grounded, it will pick up ground that way. If the box isn’t grounded, the switch will still work. Just be sure to remember your mother telling you to dry your hands before turning off the lights.
Does it matter which wire goes where on a light switch?
It doesn’t matter as long as you do it the same on both switches. So, if you connect it to the upper right terminal on one switch, connect it to the upper right terminal on the other switch. Connect the second traveler wire to the terminal opposite the red wire terminal.
How do you wire a double switch?
To wire a double switch, you’ll need to cut the power, remove the old switch, then feed and connect the wires into the double switch fixture. Though it is not difficult to wire a double switch, careful attention to safety is crucial to prevent injury.
What is the difference between one-way and two-way switch?
The one-way switch has two contacts and the two-way switch has three contacts. In a two-way switch, there are two, one-way switches combined in one. One of the terminals can be connected to either of the two, but not both at the same time.
Does a single pole switch need a neutral?
Question; A single pole switch does not need a neutral, so why would you want a neutral in the switch box? Answer; Because changes or additions might require a neutral. Since there is no neutral in the switch box you cannot; – Install a digital timer – Install a motion sensing switch.
What do you do with a neutral wire in a light switch?
The neutral wire allows the completion of the circuit and the switch to have power even when it’s turned to the off position when you want the lights off. Without this neutral wire in place, the circuit is broken any time the switch is now in the off position. It remains has power when the switch is in the On Mode.
How does a single pole switch work?
In technical terms, this simple ON/OFF switch is known as single-pole, single-throw (SPST) switch. Single-pole means that only one hot wire can be connected to it. Single-throw means that when you flip the level, it connects to only one other outgoing wire—the wire going to the light fixture or switched outlet.
