The door must be wider than the doorway
For complete coverage and to minimize the gaps, make sure the door is at least several inches wider than the opening. For example, a 4-foot door will cover a 3-foot opening with 6 inches on either side, reducing the gaps.
How wide is a double barn door?
72 x 80 Barn Doors.
How wide should a barn door be for a 30 inch opening?
For example, if you have a 30″ opening you would order at least a 34″ barn door. For the height of your barn door we recommend at least a 1″ overlay. For example if you have an 83″ opening you would order at least an 84″ barn door.
Should barn doors be same size opening?
You will need a different size for a sliding door versus a traditional swinging door in the same size opening. Unlike swinging doors, where the door has to exactly fit the door frame, with barn doors, you will need a slightly larger door than the opening.
Can any door be a barn door?
While you can buy doors intended for a barn-door installation (Home Hardware and Home Depot have lightweight K- and Z-style doors), virtually any door can be converted to a barn door with special tracks and hangers.
How far off the wall does a barn door sit?
Our standard track sticks out just 2 inches from the wall. When the door is hung, the center of the door width will line up with the track above. If your barn door is 1.5” thick, then you would have 1″ between wall and door.
How wide is a 36 barn door opening?
Measuring For Double Sliding Doors
Door Height: Measuring for door height follows the same process as measuring for single doors. Door Width: If you’re using two doors of the same size, measure the width the same way you would for a single door, and divide by two (a 36” door opening would use two 18” wide doors).
What is the standard thickness of a barn door?
Typically an Interior door backset is 2-3/8”. An Exterior (1 ¾” thick or thicker) is 2 ¾” Backset.
What is the rough opening for a 36 inch barn door?

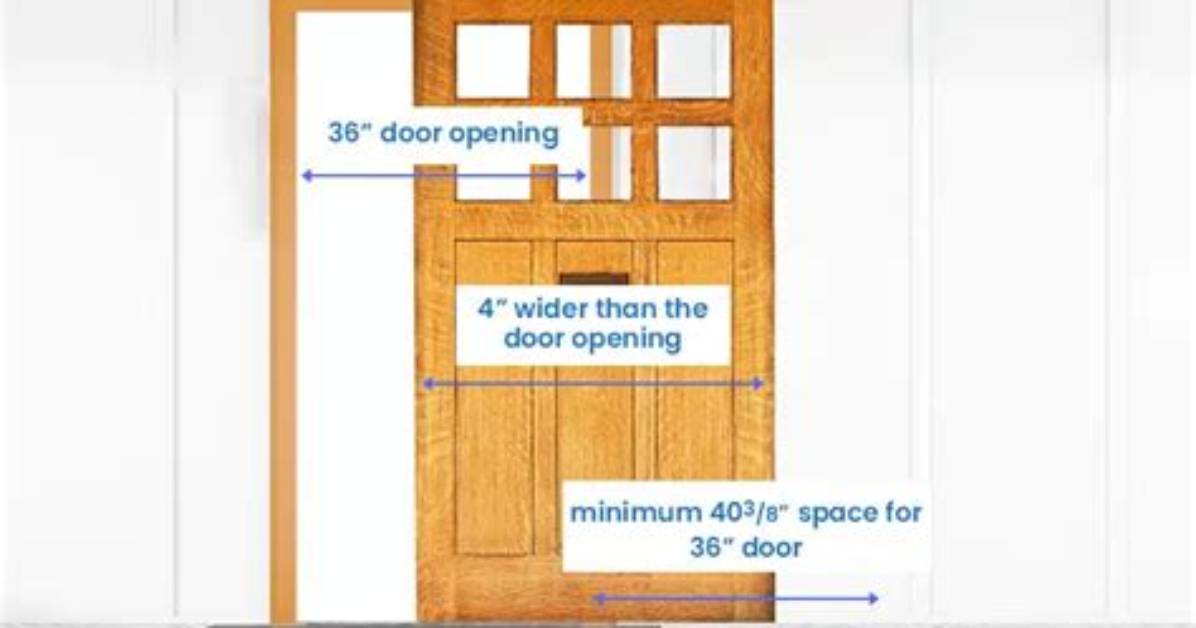

You will need a minimum of 40-3/8” for a 36” wide door and at least 43” for a 42” wide door. The entire wall, from ceiling to floor, will need to be unobstructed.
Do barn doors cover trim?
Yes, a barn door is supposed to cover the door trim.
Generally, a barn door covers the door trim and leaves a one-inch gap from the wall. So, if the barn door doesn’t cover the trim, it can’t keep a gap between the door and the wall. Moreover, it will not look like the door is hanging.
Do you need a header board for barn doors?
Installing a Barn Door on an Existing Wall
To safely mount the door, you will need a header board to carry the load of the door without having to open the drywall to modify the studs. It’s very important that you only use clear straight lumber for the head casing.
Do barn doors need a bottom track?
If you are thinking about installing a barn door, you might wonder – do barn doors need a bottom track? The answer is yes. The bottom track keeps the barn door from swinging back and forth against the wall. The track should allow about 1/2″ of space between the bottom of the door and the floor for proper clearance.
Can you convert a regular door to a barn door?
Barn doors are typically taller and wider than a normal door in order to cover some of the door frame. In order to re-create this with your existing door you need to add some additional wood for width and height.
Can I use a solid core door as a barn door?
The answer is yes, but it depends on how it is installed and the materials used. Solid wood is better at soundproofing than a hollow-core door, and the thicker the door, the better. But one of the most important things that willmake barn doors more private is making the door overlap the opening.
How do I convert a regular door to a barn door?
Instructions
Remove existing door, hardware and door latch.Install header board for track (follow directions on kit for suggestions) We used a 1×10 cut to the desired length.Install barn door sliding door track.Install barn door hardware (follow directions on kit)Hang barn style door on track.
