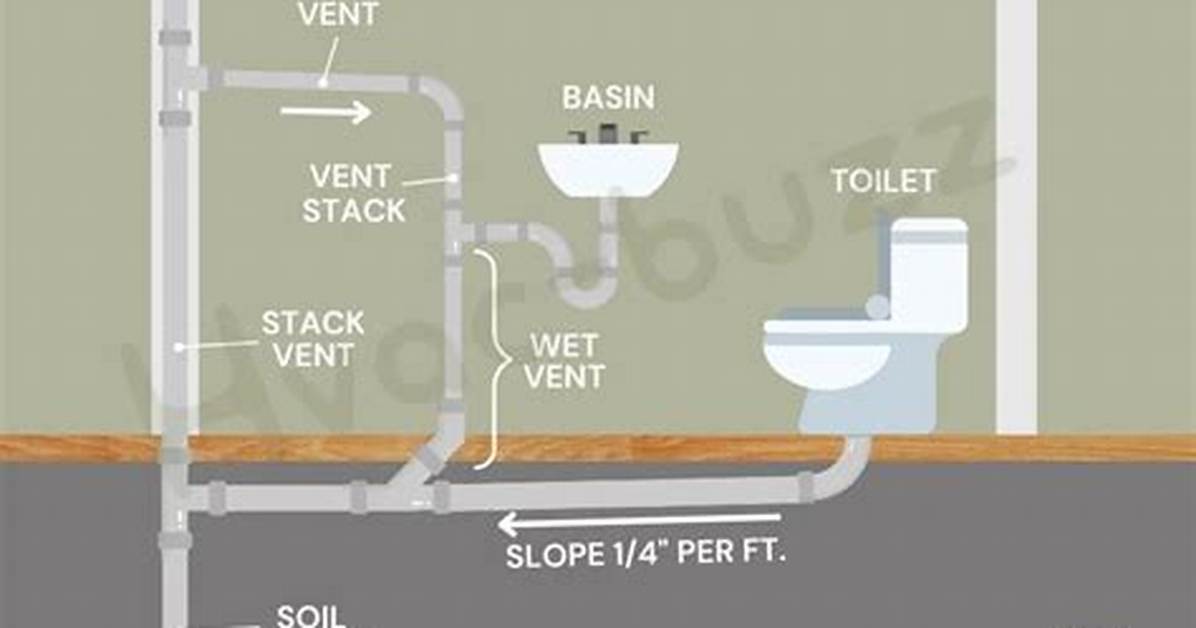

The vent stack is a vertical drain line that goes through your home’s roof to reach the outside. No running water goes through the plumbing vent. It connects with your main roof vent, allowing gases to vent and maintain the proper pressure within your home’s plumbing system.
What are vent stacks used for?
Also called a vent stack or plumbing air vent, the vent pipe regulates airflow to assure waste and water flows through pipes that drain out of your house. It prevents a vacuum that causes slow or no drainage.
What is the difference between a stack vent and a vent stack?
A vent stack is a vertical pipe that is only used for venting, and runs upward from the drain piping to the open air outside the home. Vent stacks are primary vents and accept connections from other vents in a plumbing system. A stack vent is used for both drainage and venting.
Where do you put a vent stack?
It can attach directly behind the fixture or to the horizontal drain line. If two fixtures are on opposite sides of a wall, they can tie into the stack with a sanitary cross. This is called a common vent and can be found on back-to-back sinks.
Do you need a vent stack?
At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.
Does a toilet need a vent stack?
“Does a toilet need a vent?” And the answer is yes, your toilet has to have a vent. For more information on the great importance of plumbing vents, read our plumbing vent article here. And the size of this vent pipe depends on your local plumbing code.
How many vent stacks should a house have?
At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.
What happens if plumbing is not vented?
Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.
How far can a toilet be from a vent stack?
According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.
Can a vent stack terminates in attic?
Yes, a plumbing vent can terminate in the attic. But it must have an air admittance valve at the termination to keep noxious sewer gas fumes from rising into the attic.
How many plumbing vents can be tied together?
You can usually tie up to eight fixtures to a single stack, but local codes differ, so it’s a good idea to check.
Do you have to vent every drain?
Without getting too far into building science, a general plumbing rule of thumb is that every drain needs a trap, and every trap needs a vent. All those traps and drains are designed to prevent sewer gas from entering your home.
Can a shower and toilet share a vent?
Wet vents are typically used when plumbing a bathroom group. So yes the shower can also be vented by the wet vent along with the toilet. There is one major stipulation when wet venting multiple fixtures when a toilet is one of them: the toilet must be the last fixture connected to the wet vent.
Can plumbing vents be combined?
Vent pipes shall be extended separately or combined, of full required size, not less than 6 inches (152 mm) above the roof or fire wall.
What is the difference between a sanitary tee and a vent tee?
A sanitary tee is a plumbing fixture that allows liquids to drain while also allowing the plumbing system to vent. The fitting resembles a normal tee fitting; the sanitary tee, however, when viewed from the side will have a definite downward sweep to the center inlet.
Can I use a vent pipe as a drain?
Just as drain pipes remove water and waste from your home, the plumbing vent pipe – also known as a plumbing air vent – removes gas and odors. It also allows fresh air into the plumbing system to help water flow smoothly through the drain pipes. However, no water runs through the plumbing vent pipe.
Can two drains share a vent?
Common vent
This very simple concept allows two traps to be vented by the same vent. The two traps and their fixture drains can be either at the same level or at different levels, provided that they are on the same floor. The following diagrams show some of the various approaches to common venting.
