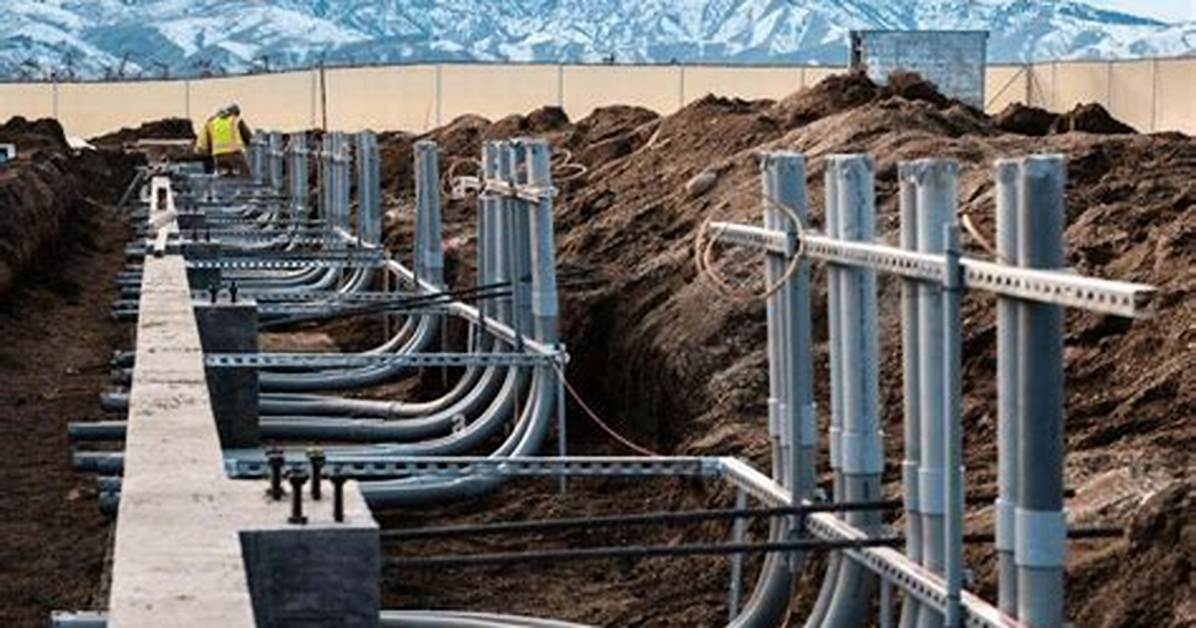

We typically prefer using PVC conduit when running power to a remote location underground. That gives you a lot more protection over direct burial cable in the long run.
How deep do you have to bury electrical conduit?
The generally applicable depth is 12 inches, or you can reduce it to 6 inches if you secure the cables with 2 inches of accuracy. Below an entry path, it is feasible to require only 12 inches of burial depth. Conduits require for installation in 2 inches of solid rock with accuracy.
Can PVC electrical conduit be used underground?
PVC conduit is often used in underground and wet location applications where electrical cables need to be protected. Because it’s UV tested and rated, it can be used in locations where it will be exposed to UV rays.
Does underground electrical wire need to be in conduit?
There’s one restriction: It needs a conduit where the cable is exposed on the outside of the house and to 18 inches below the ground. Burying the cable 24 inches requires more digging, so this method only makes sense if you have easy-to-dig soil or are renting a trench digger.
What type of PVC is used for underground electrical?
Schedule 40 rigid PVC conduit, elbows, that are specifically marked for underground use are suitable for use underground only by direct burial or encasement in concrete. The UL listing says both 80 and 40 can be used in both above and underground installations.
Can you bury Schedule 40 PVC conduit?
Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight.
Does outdoor wire have to be in conduit?
They need to be in conduit for 2 reasons. First, exposed wiring needs to be protected from damage and stapling bare wire to the siding would not qualify. Burying it at least 24″ would qualify, but any portion above that would still need to have some sort of damage protection (conduit).
What is the minimum burial depth for PVC conduit?
A: The wiring method must be buried at least 12 inches deep. B: A lesser depth shall be permitted where specified in the installation instructions of a listed low voltage lighting system.
Can I bury an extension cord?
Can You Bury an Outdoor Extension Cord? Yes, you can bury an extension cord, but don’t do it, especially if you’re burying the cord directly. Even if you do, have in mind that you might get yourself into trouble. The outdoor extension cord doesn’t have the quality to survive the unfavorable condition when buried.
What is the difference between white and gray PVC pipe?
There are two common types of PVC pipe – schedule 40 PVC and schedule 80 PVC. Schedule 40 PVC is usually white in color and schedule 80 is usually a dark gray (they can also be found in other colors). Their most important difference, though, is in their design. Schedule 80 pipe is designed with a thicker wall.
Can you run direct burial wire through conduit?
Direct-burial cable can be run inside the conduit to add additional protection to any electrical system. This type of cable is designed to withstand direct exposure to the soil and moisture and is rated for wet, dry, and damp environments.
Which pipe is best for underground wiring?
HDPE is often used in electrical, utilities and telecommunications to protect underground cables and lines from impact, environment, weather, rodents, and other corrosive conditions. Advantages: HDPE pipe easily bends around obstacles like roadways or rivers.
Do you glue underground conduit?
PVC Conduit Doesn’t Need Primer
Some PVC pipes require primer, but you don’t need to use primer when gluing conduit and fittings. Home centers usually sell the appropriate glue/cement near the the PVC conduit and fittings. Measure as carefully as you can so you can avoid dry-fitting your connections.
Can Schedule 80 PVC be buried?
Direct burial installations for CANTEX Schedule 40 and schedule 80 PVC Pipe are simple, but must always be done in accordance with all national and regional guidelines. 1. A crew begins by digging a trench for the conduit.
