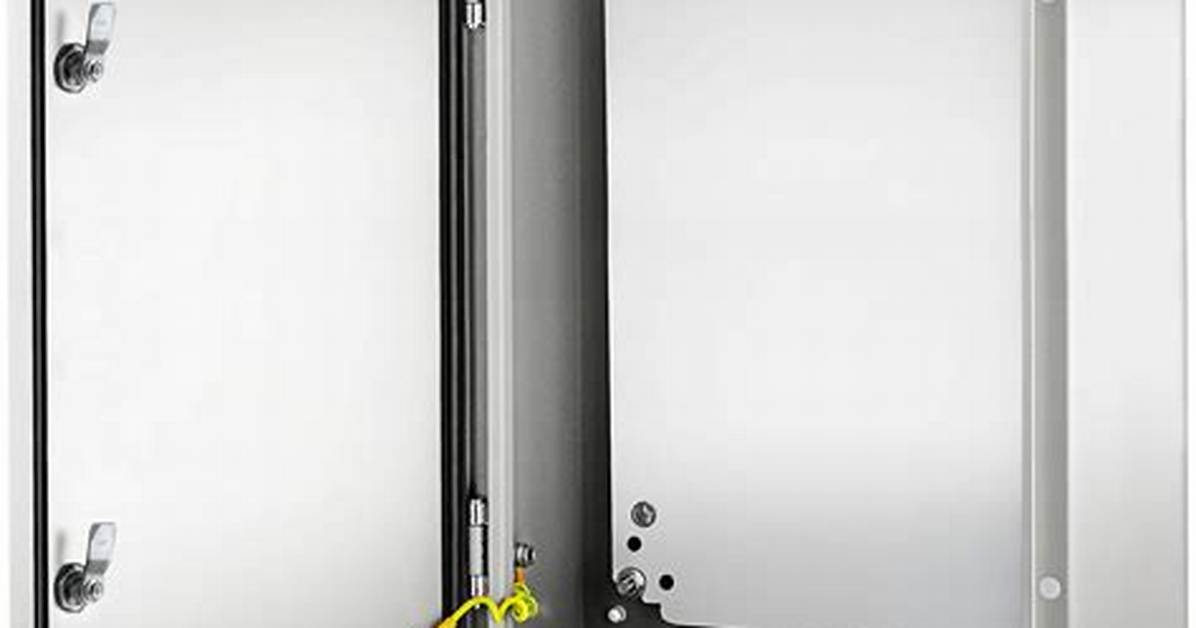

An electrical panel (a.k.a. breaker panel) is a metal box with a door, usually built into a wall in an out-of-the-way corner of your home.
What are the 4 types of electrical boxes?
What to Know About the Various Types of Electrical Boxes
Plastic and metal electrical boxes. Most boxes are either made of plastic or metal. Rectangular boxes. Two-gang, three-gang, and four-gang boxes. Round pan boxes. Junction boxes. Round and octagon boxes. Ceiling fan-rated boxes.
What is a standard electrical box?
Electrical Box Sizes and Shapes
A standard rectangular shape is the most common electrical box. It houses a single electrical switch or outlet and comes in metal or nonmetallic units. These boxes protect wiring from the elements with gaskets, sealed seams and watertight covers.
What is the use of electrical box?
Uses of Electrical Boxes
Housing connections for electrical appliances, lighting fixtures and the like, and mounting them on walls or ceilings for easy access. Electrical boxes that are appropriately rated, mounted and braced can be used to house and mounting ceiling fans and their connections.
What is a modern fuse box called?
A fuse box or fuse board is just the outdated name (because they contained fuses) for what is now more commonly known as a consumer unit. A modern consumer unit will contain a Main switch, RCDs (residual current devices) and MCBs (miniature circuit breakers)
What’s a fuse box?
An electrical panel or fuse box is the central hub of the house’s electrical system where the incoming voltage is separated into the various circuits. The panel or box is designed to cut off electricity to one of the circuits in case of overload on the circuit indicating an electric short.
What are switch boxes?
Steel square boxes may be used with all types of conduit, metal-clad cable, and nonmetallic-sheathed cable. Switch Boxes. A switch box is commonly used to mount a switch. Switch boxes are used for interior work, and they are characterized by device-mounting tabs located on the outside of the box.
What are the two types of utility box?
Most electrical boxes are either metal or plastic. Metal boxes are generally made of steel, while plastic boxes are either PVC or fiberglass.
What is a device box?
Device boxes are used to house wiring devices such as switches or receptacles. Product Features: Gangable device boxes offer the option of constructing a box to hold two or more devices. Plaster ears allow box to be used in “rework” applications.
What is the difference between junction box and utility box?
A utility box can also be called an electrical box and it would be composed of switches, electrical sockets, and also fixtures. The major difference between a junction box and a utility box is that a junction box would house the electrical connections while the utility boxes are used to install switches, fixtures, etc.
What is the main reason for device boxes?
Device Boxes- are used to install receptacles or switches at specific locations on an electrical circuit.
How does a junction box work?
Essentially, a junction box houses wire connections in order to split off power from a single source to multiple outlets. For instance, a junction box might contain one wire power source that is connected through multiple wires to power several different lights.
Does an electrical outlet need a box?
Electrical codes generally require that all electrical devices, and the wiring connections to those devices, must be enclosed in an approved electrical box. Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring.
Why does the fuse box keep tripping?
A fuse box that keeps tripping indicates that you have a faulty electrical item or faulty wiring somewhere in your home. Working out what is wrong is largely a process of elimination, and you can usually narrow down the problem yourself.
Is a fuse box the same as a circuit breaker?
The biggest differences between fuse boxes and circuit breakers are the method and materials they use to do this important job. Fuse boxes melt down wires inside replaceable fuses, while circuit breakers simply disconnect wires until you wiggle them back into place.
Why has my fuse box tripped?
A fuse switch that keeps tripping is usually caused by a faulty electrical item or an overloaded circuit. Locating the root of the problem is largely a process of elimination and something you can do yourself.
