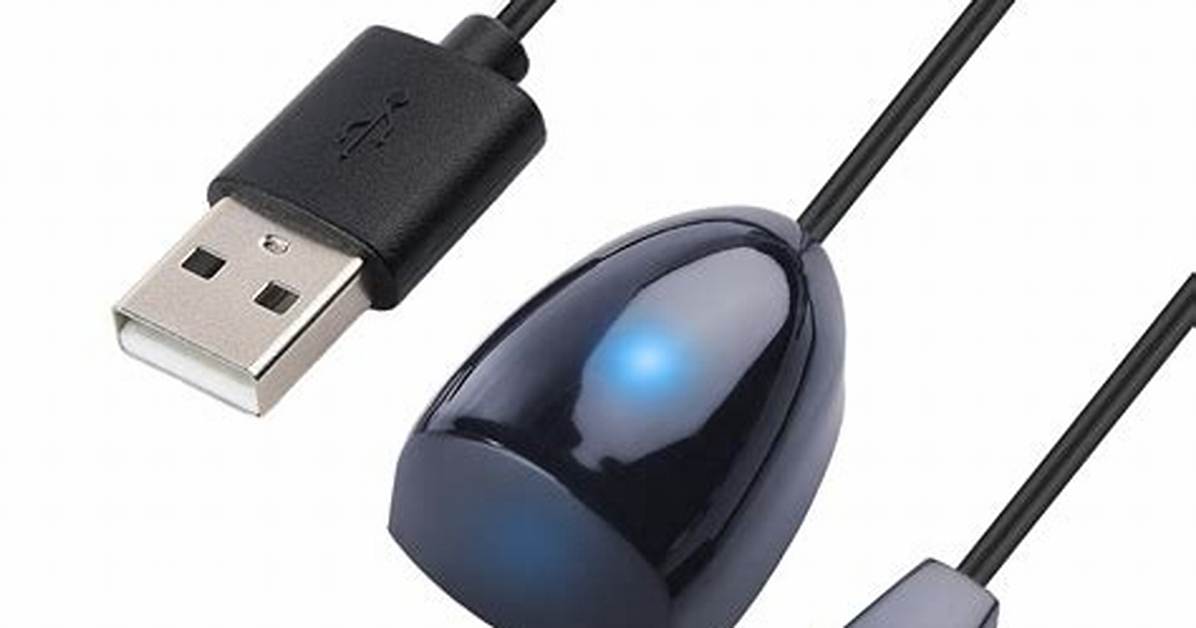

An IR extender cable is an Infra-Red Eye Extension to instead of pointing the remote control directly at the TV, you can point the remote directly toward the IR Eye sensor instead, giving you a much greater range and more versatility with the remote controller features.
How do I connect my IR extender cable?
Connect the IR cable to the IR out port on the back of the TV and position the emitter near to the device that you want to control and then select OK to continue. The IR Extender cable relays signals between your TV and other devices.
Why do I need an IR extender cable?
IR Extender cable enables us to control connected external devices with TV using the Smart Touch Control. IR Extender sensor sends an IR signal into a corresponding external device.
How far can you extend IR?
The standard length of the IR receiver cable is 2 meters; it can be extended up to max. 300 meters, using a UTP or an equivalent cable.
How do I know if my TV is IR enabled?
Check if the IR Remote Control sends Infrared signals
Press and hold one of the buttons on the remote control. Look at the viewfinder or LCD screen. If the remote control sends a signal, you should see a light in the viewfinder or cellphone screen when you press buttons on the remote control.
What is IR setup?
IR Blaster compatible models have [IR Blaster setup] in [Settings] — [External inputs]. The IR Blaster allows you to operate a set-top box or AV Receiver that is connected to the TV, with the TV’s remote control. (IR Blaster compatible models may not be available depending on your model/country.)
What is an IR out port?
IR out: Infrared output port for IR blaster (optional; IR blaster not included). The IR port is designed to control devices via an IR transmitter such as a home theater system. IR extension cables etc.
Where is the IR receiver on Samsung TV?
On most Samsung TVs the infrared sensor is on the lower right-hand side of the screen or the lower middle. Make sure that there are no objects in front of these areas of your TV.
Will remote work through speaker cloth?
Most home electronics remotes send signals with infrared light. It does not go through most speaker cloth.
How do you use infrared cable?
Setup the IR Blaster from the Settings menu
Turn on the TV and make sure that the set-top box is connected and on.On the TV remote, press the HOME button.Select Settings.The next steps will depend on your TV menu options: Connect the IR Blaster. Select OK.
Can RF remote go through walls?
RF can go through walls and there is no need to point the remote to the device, as it does not require to be in line-of-sight. Bluetooth (which is a type of RF) is an open wireless technology standard for transmitting data over short distances.
What is IR passthrough?
With an optional IR blaster, the IR Pass-Through port on select Toshiba TVs allows remote commands to be sent through our TV to your home theater components that may be hidden out of view. It’s ideal for wall-mounting situations, or when you want to place your AV components in a cabinet or closet.
Where should I place my IR receiver?
IR Receivers
Receivers must be located in the room you wish to use the remote control since they require line-of-sight transmission. The cable from the receiver to the connection block needs to accommodate both signal data as well as power since the receivers are active devices.
Is Comcast remote IR or RF?
The Xfinity remote uses either RF (radio frequency) or IR (infrared) signals to control the Xfinity box. Control Center can only send IR to Xfinity STB (see IR Learning section below). IR signals require a direct “line of sight” to work properly.
