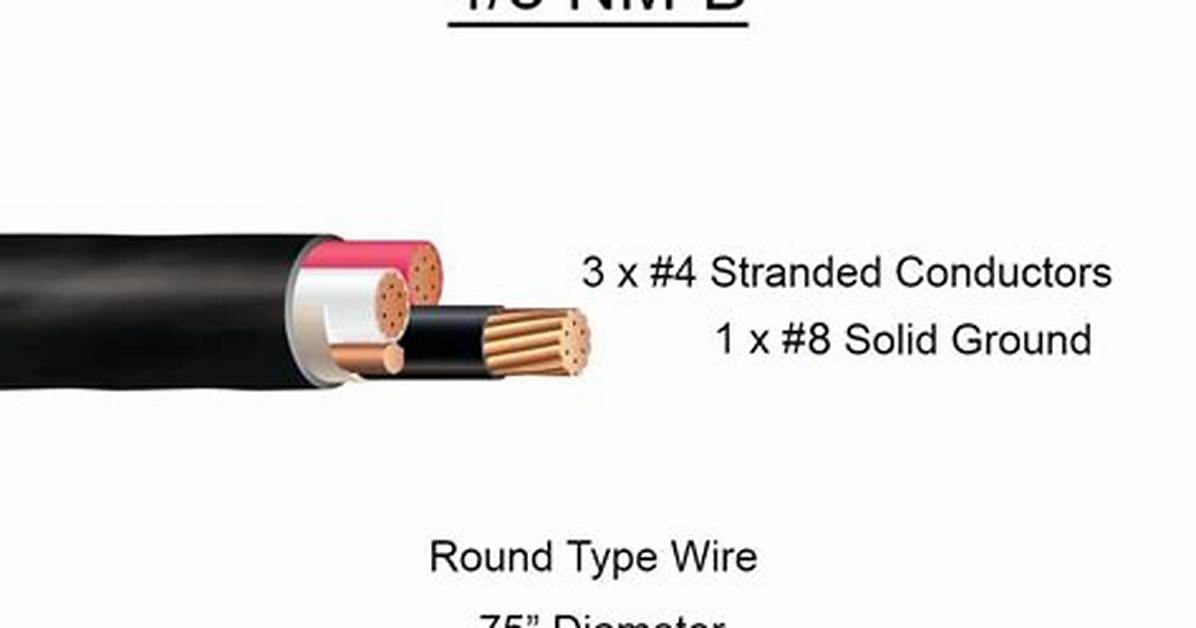

NM-B is a non-metallic electrical wire used in residential building wiring for various devices and outlets. It is mostly used in devices characterized as damp or wet, such as washing machines and dishwashers. It can also be applied in switches, tile walls, and lighting.
What is the difference between NM and NM-b wire?
Closely related cable types are Type NMC, which has a corrosion-resistant outer covering, and Type NMS, which contains, in addition to the usual power conductors, communications (signaling) wires. When the letter B is appended, as in NM-B cable, it indicates that the conductor insulation is rated for 90 degrees C.
What does the B stand for in NM-b wire?
Type NM-B (Non-Metallic Sheathed Cable) is commonly used for residential wiring of luminaries, devices and appliances.
Is nm the same as Romex?
Sometimes known as “Romex,” named for one of the common brand names, NM cable is a flexible electrical cable that features an outer plastic sheathing that protects two or more insulated conductors, as well as a bare copper ground wire.
Is NMB the same as Romex?
Indoor NMB cable or Romex® 12/2 cable
NMB stands for non-metallic because it has a PVC jacket instead of a metal-clad jacket. It is a basic indoor electrical wire used to deliver power from an electrical box to lights, outlets and appliances.
What’s the difference between NM-B and UF B wire?
Standard NM cable contains wires that are wrapped with paper and a relatively loose plastic sheath. UF cable has wires that are completely encased in solid plastic. This encasement protects each wire from the others and does not allow moisture or other external elements to travel inside the cable.
Can you use nm-b outside?
Answer: No, Type NM cable cannot be installed outside, regardless of the wiring method enclosing it.
Can you bury nm-b wire?
Romex is a brand name for non-metallic paper bonded cable (NM-B, as printed on the jacket) with a PVC jacket. This is why type UF is suitable for burying and wet locations (or dry) where NM-B cable is suitable only for very specific dry locations.
Does nm-B need to be in conduit?
Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.
Can UF-B cable be exposed?
The use of UF cable on the exterior surface of buildings or structures is permitted by Sec. 225.10(18) and Sec. 334.10(3) of the NEC. If the cable is exposed to physical damage it must be protected in accordance with Sec.
What is UF-B wire used for?
Type UF-B (Underground Feeder and Branch-Circuit Cable) is generally used in underground, direct burial installations as branch circuits and/or feeders to outside floodlights, sewer pumps and motors, electric gates and other loads typically supplied from a distribution system.
How do I strip UF-B cable?
Brian Walo: UF-B is always a hassle, but here’s how to deal with it: Cut about 2 in. along the concave center of the cable with a utility knife. With pliers, pull out the bare ground wire in the center, using it like a rip cord to split the jacket as far as needed.
Is Romex THHN wire?
Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can’t be used outside because of its minimal PVC jacket protection.
Where can NM cable not be used?
Types NM and NMC cables shall not be permitted as follows: In any dwelling or structure not specifically permitted in 334.10(1), (2), (3), and (5) Exposed within a dropped or suspended ceiling cavity in other than one- and two-family and multifamily dwellings. As service-entrance cable.
What color is the neutral wire in NM B cable?
The most common type of NM used are 2-wire and 3-wire. A 2-wire NM contains one black wire (usually line) and one white wire (usually neutral) and a bare ground wire.
Why is UF b cheaper than NM?
Currently, many big box stores have the UF-B marked less than the NM-B cable. That’s because the price is not as inflated from demand like NM-B. NM-B is also used more frequently because it is WAY easier to work with.
Can I put Romex in conduit?
Running Romex in a Conduit
When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.
When did nm-b wire come out?
Also in 1984, NM-B cable was developed and required to have 90°C rated individual conductors, and a 75°C outer jacket (see Fig. 4). Until the early 1960’s, most NM cable for residential use did not have a grounding conductor.
