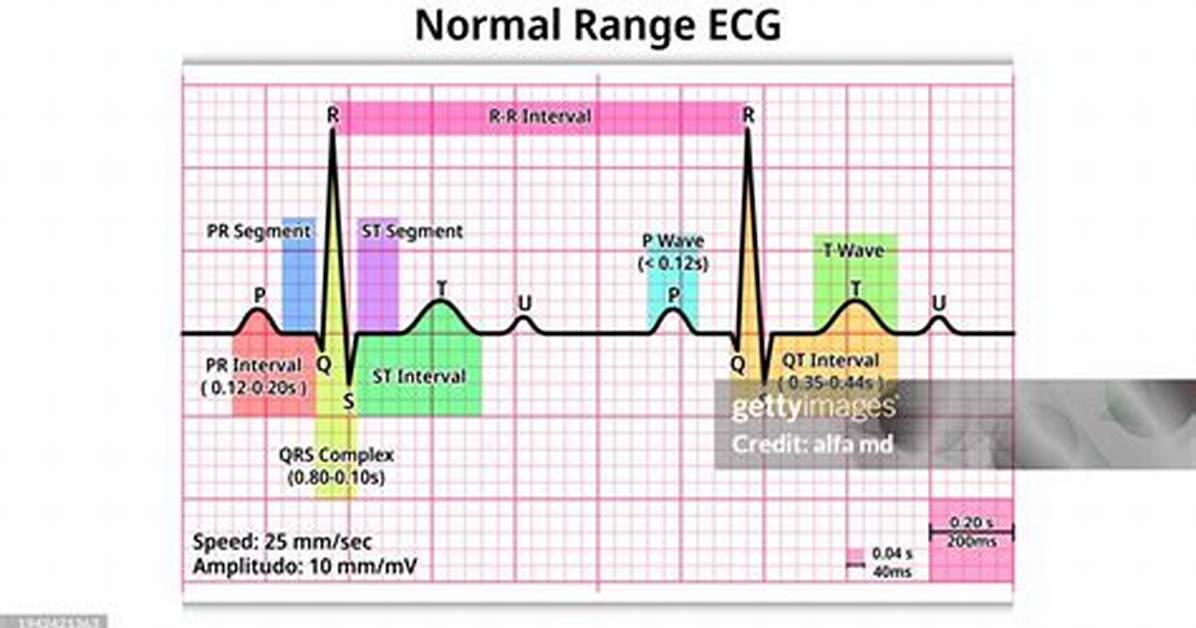

The P-R Interval
The first measurement is known as the “P-R interval” and is measured from the beginning of the upslope of the P wave to the beginning of the QRS wave. This measurement should be 0.12-0.20 seconds, or 3-5 small squares in duration.
What is normal PR interval in milliseconds?
PR interval: 120-200 milliseconds.
What is the PR interval in this ECG?
Answer. The PR interval incorporates the time from the depolarization of the sinus node to the onset of ventricular depolarization. The measurement starts from the beginning of the P wave to the first part of the QRS complex, with a normal duration between 0.12 to 0.20 seconds.
What is normal QT QTc?
QT Interval After Bariatric Surgery
Many formulas are used to correct QT interval for heart rate. The Bazett formula (QTc=QT/RR½) is one of them. Normal QTc interval is 350–450 ms in males and 360–460 ms in females. QTd is the difference between the longest and shortest QT interval on standard ECG.
Is PR 90 normal?
The lower limit of normal for the PR interval of most children is 90 ms, which is considerably shorter than the accepted adult standard of 120 ms. The short PR interval may cause difficulties in the recognition of ventricular preexcitation.
What is a normal QRS?
The normal duration (interval) of the QRS complex is between 0.08 and 0.10 seconds — that is, 80 and 100 milliseconds. When the duration is between 0.10 and 0.12 seconds, it is intermediate or slightly prolonged. A QRS duration of greater than 0.12 seconds is considered abnormal.
What is sinus tachycardia?
Inappropriate sinus tachycardia (IST) occurs when the heart beats very quickly without a good reason. It is a type of heart rhythm abnormality called an arrhythmia. Tachycardia is the medical term for a fast heart rate.
What is a normal P QRS T axis?
Baseline ECG axes were automatically measured with normal values defined as follows: P-wave axis 0° to 75°, QRS axis -30° to 90°, and T axis 15° to 75°.
What are normal values for ECG?
The normal range of the ECG differed between men and women: heart rate 49 to 100 bpm vs. 55 to 108 bpm, P wave duration 81 to 130 ms vs. 84 to 130 ms, PR interval 119 to 210 ms vs. 120 to 202 ms, QRS duration 74 to 110 ms vs.
What does a high PR interval mean?
A prolonged PR interval represents a delay in the time it takes for the signal to move across the atria at the top of the heart, which receive blood flowing in from the veins, into the ventricles at the bottom of the heart, which pump blood out into the arteries.
What does a low PR interval mean?
A short PR interval (of less than 120ms) may be associated with a Pre-excitation syndromes such as Wolff–Parkinson–White syndrome or Lown–Ganong–Levine syndrome, and also junctional arrhythmia like atrioventricular reentrant tachycardia or junctional rhythm.
What is good QT interval?
The normal QT interval varies depending on age and gender, but it’s usually 0.36 to 0.44 second (see QT interval ranges). Anything greater than or equal to 0.50 second is considered dangerous for any age or gender; notify the healthcare provider immediately.
What is normal frontal axis P?
Normal P wave axis is between 0° and +75°.
What is high QTc?
In most studies, a prolonged QTc interval was defined as 440 milliseconds or greater.
